308 QV USA Page 110 GLASSES
Product Description
308 QV USA Page 110 GLASSES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

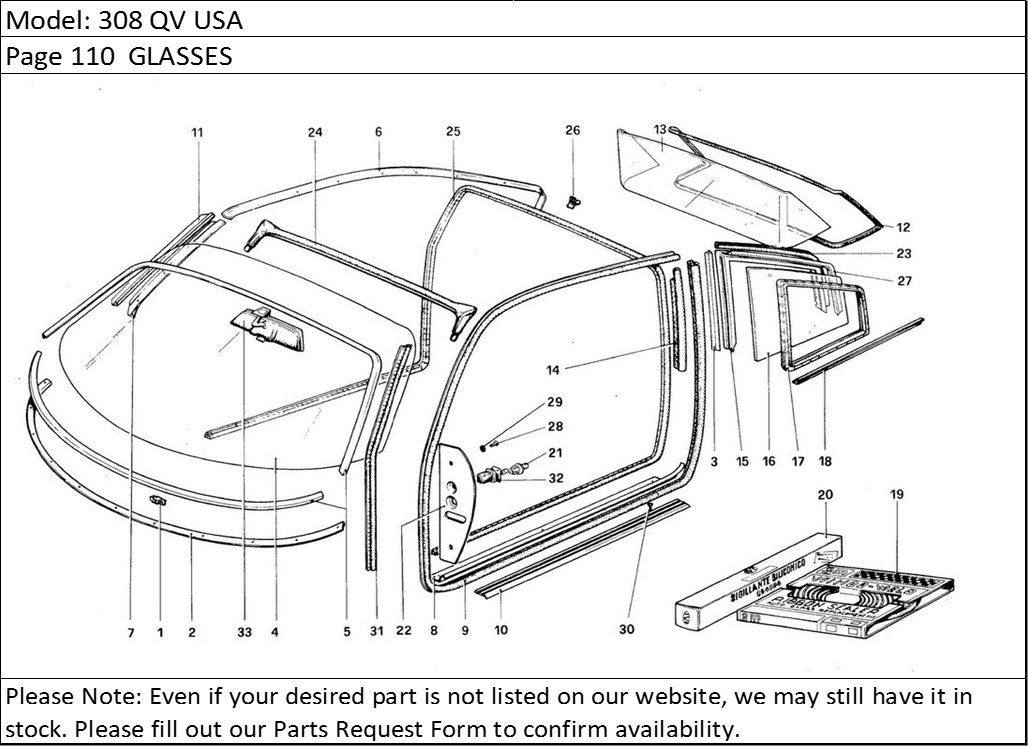

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 40208209 | Clip | 11 |
| 2 | 60121506 | Rim on instrument plate | 1 |
| 3 | 60517100 | Weatherstrip | 2 |
| 4 | 60019908 | Windshield glass | 1 |
| 5 | 60295102 | Windshield trim | 1 |
| 6 | 60248002 | R.H. drip GTB | 1 |
| - | 60248101 | L.H. drip GTB | 1 |
| 7 | 60269800 | Front R.H. drip GTB | 1 |
| - | 60269909 | Front L.H. drip GTB | 1 |
| - | 60872500 | R.H. moulding. windscreen GTS | 1 |
| - | 60872600 | L.H. moulding. windscreen GTS | 1 |
| 8 | 60099207 | Lower moulding. R.H. door GTB | 1 |
| - | 60099306 | Lower moulding. L.H. door GTB | 1 |
| 9 | 60298007 | Weatherstrip. door opening GTB | 2 |
| 10 | 60116704 | Moulding. door sill | 2 |
| 11 | 60375904 | Weatherstrip for windscreen post GTS | 2 |
| 12 | 60370301 | Weatherstrip for rear window | 1 |
| 13 | 60339207 | Rear window glass | 1 |
| 14 | 60313381 | Gasket GTB | |
| 15 | 60262904 | R.H. frame GTB | 1 |
| - | 60263704 | L.H. frame GTB | 1 |
| 16 | 60264801 | R.H. glass GTB | 1 |
| - | 60162807 | R.H. glass GTS | 1 |
| - | 60264900 | L.H. glass GTB | 1 |
| - | 60162906 | L.H. glass GTS | 1 |
| 17 | 60058302 | Gasket GTB | 2 |
| - | 60522800 | Gasket. R.H. GTS | 1 |
| - | 60522900 | Gasket. L.H. GTS | 1 |
| 18 | 60267804 | Lower moulding. R.H. glass GTB | 1 |
| - | 60267903 | Lower moulding. L.H. glass GTB | 1 |
| 19 | 60089505 | Window - Weld sealant for windshield | 1 |
| 20 | 60156106 | Cartridge of silicone sealant | 1 |
| 21 | 60054509 | Switch | 3 |
| 22 | 60320603 | Guard for R.H. hinge GTB | 1 |
| - | 60370103 | Guard for R.H. hinge GTS | 1 |
| - | 60291903 | Guard for L.H. hinge GTB | 1 |
| - | 60339306 | Guard for L.H. hinge GTS | 1 |
| 23 | 61425000 | Right gasket GTB | 1 |
| - | 61425100 | Left gasket GTB | 1 |
| 24 | 60607900 | Gasket GTS | 1 |
| 25 | 60433505 | Gasket GTS | 1 |
| 26 | 40065005 | Grommet for R.H. frame GTB | 1 |
| 27 | 60516900 | Gasket | 1 |
| - | 60517000 | Gasket | 1 |
| 28 | 20297800 | Screw for hinge guard | 4 |
| 29 | 10615371 | Washer | 4 |
| 30 | 17686770 | Screw for moulding | 8 |
| 31 | 60609100 | Weatherstrip. door opening | 2 |
| 32 | 60801500 | Protection for switch | 3 |
| 33 | 60032703 | Inside rear view mirror | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
