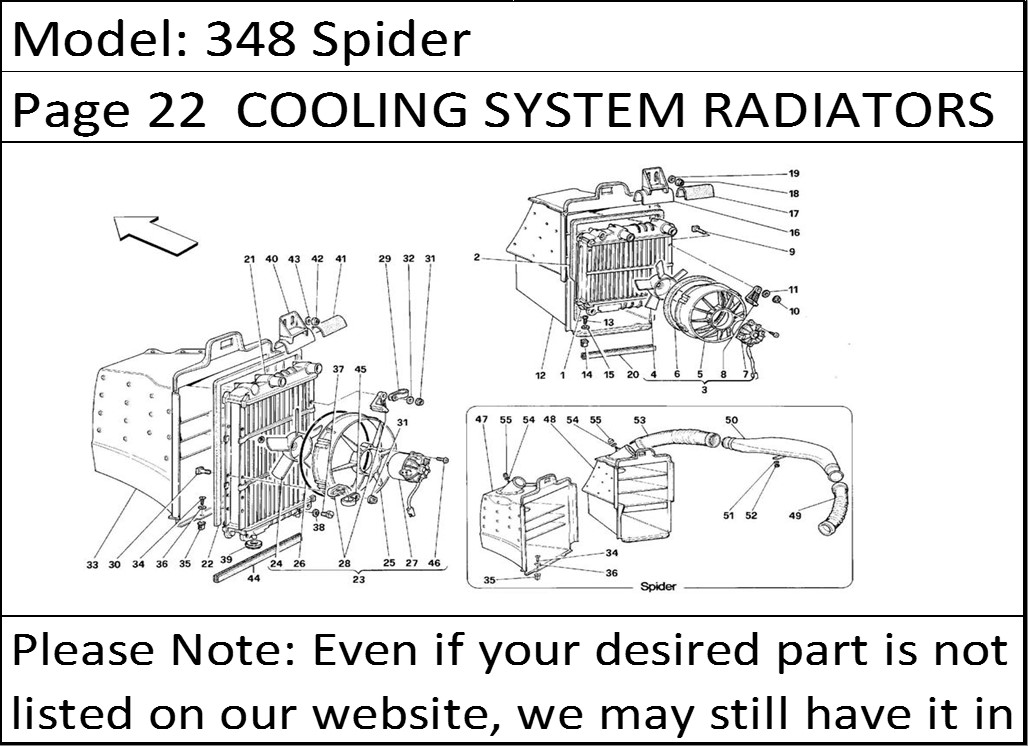

348 Spider Page 22 COOLING SYSTEM RADIATORS
Product Description
348 Spider Page 22 COOLING SYSTEM RADIATORS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 137619 | WATER R.H. RADIATOR | 1 |
| 2 | 63370800 | UPPER GASKET | 1 |
| 3 | 140403 | COMPLETE R.H. ELECTROFAN | 1 |
| 4 | 143544 | BLOWER | 1 |
| 5 | 143545 | AIR CONVEYOR | 1 |
| 6 | 147577 | RUBBER EDGE | 1 |
| 7 | 140808 | MOTOR | 1 |
| 8 | 147576 | SUPPORT | 4 |
| 9 | 11944811 | SCREW | 4 |
| 10 | 15896214 | NUT | 4 |
| 11 | 12644424 | WASHER | 4 |
| 12 | 62097900 | R.H. AIR INLET-Not for Spider- | 1 |
| 13 | 15903901 | SCREW | 2 |
| 14 | 14202580 | BLOCK | 2 |
| 15 | 12638124 | WASHER | 2 |
| 16 | 137621 | RADIATOR FASTENING BRACKET | 1 |
| 17 | 137630 | RUBBER THICKNESS | 2 |
| 18 | 16104411 | NUT | 2 |
| 19 | 12646724 | WASHER | 2 |
| 20 | 63370900 | LOWER GASKET | 1 |
| 21 | 137617 | WATER L.H. RADIATOR | 1 |
| 22 | 63370800 | UPPER GASKET | 1 |
| 23 | 140404 | COMPLETE L.H. ELECTROFAN | 1 |
| 24 | 147579 | BLOWER | 1 |
| 25 | 147578 | AIR CONVEYOR | 1 |
| 26 | 147580 | O RING GASKET | 1 |
| 27 | 140808 | MOTOR | 1 |
| 28 | 147581 | SUPPORT | 4 |
| 29 | 10418301 | BRACKET | 2 |
| 30 | 11944511 | SCREW | 4 |
| 31 | 15896214 | NUT | 2 |
| 32 | 12644424 | WASHER | 2 |
| 33 | 62098000 | L.H. AIR INLET-Not for Spider- | 1 |
| 34 | 15903901 | SCREW | 2 |
| 35 | 14202580 | BLOCK | 2 |
| 36 | 12638124 | WASHER | 2 |
| 37 | 140149 | THREADED PLUG | 2 |
| 38 | 140150 | GASKET | 2 |
| 39 | 137624 | PAD | 2 |
| 40 | 137621 | RADIATOR FASTENING BRACKET | 1 |
| 41 | 137630 | RUBBER THICKNESS | 1 |
| 42 | 16104411 | NUT | 2 |
| 43 | 12646724 | WASHER | 2 |
| 44 | 63370900 | LOWER GASKET | 1 |
| 45 | 10418801 | BRACKET | 2 |
| 46 | 123298 | SCREW | 8 |
| 47 | 63634400 | L.H. AIR INLET-Valid for Spider- | 1 |
| 48 | 63634300 | R.H. AIR INLET-Valid for Spider- | 1 |
| 49 | 155062 | AIR INTAKE DUCT-Valid for Spider- | 2 |
| 50 | 155040 | R.H. CENTRAL DUCT-Valid for Spider- | 1 |
| - | 155038 | L.H. CENTRAL DUCT-Valid for Spider- | 1 |
| 51 | 12637821 | WASHER-Valid for Spider- | 2 |
| 52 | 169180 | NUT-Valid for Spider- | 2 |
| 53 | 155061 | R.H. AIR INLET PIPE-Valid for Spider- | 1 |
| - | 155059 | L.H. AIR INLET PIPE-Valid for Spider- | 1 |
| 54 | 14496424 | WASHER-Valid for Spider- | 2 |
| 55 | 102741 | NUT-Valid for Spider- | 2 |
