355 M2.7 (1994-1995) Page 7 INJECTION DEVICE IGNITION
Product Description

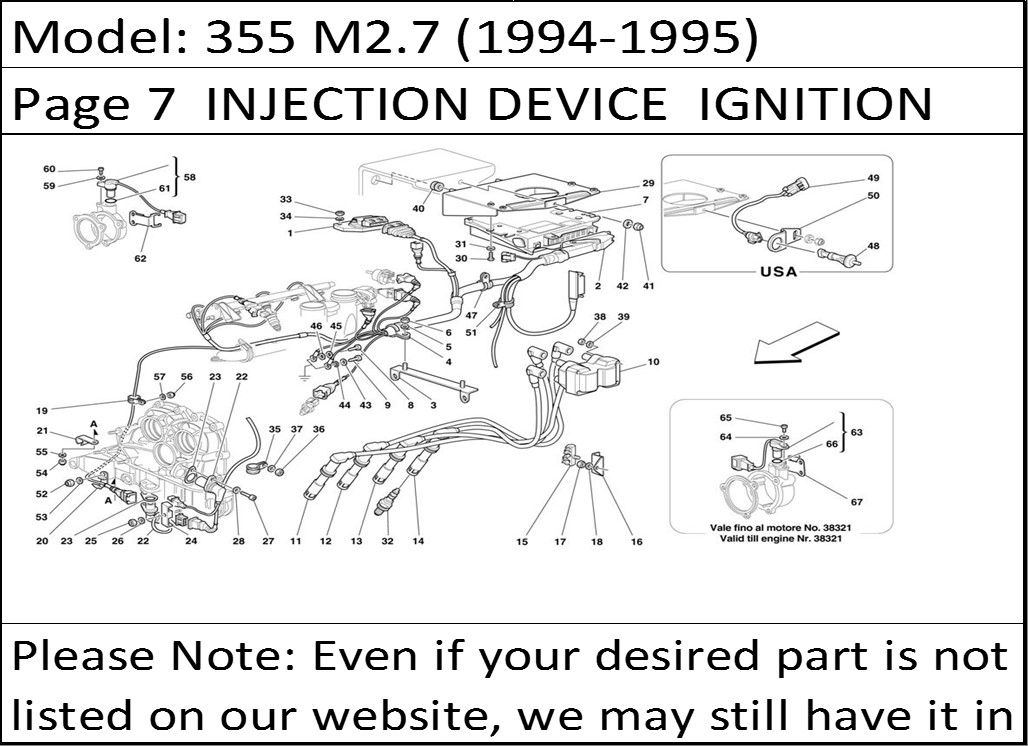

355 M2.7 (1994-1995) Page 7 INJECTION DEVICE IGNITION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 137511 | POWER MODULE | 2 |
| 2 | 163859 | R.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid from engine Nr. 38322 | 1 |
| 2 | 162358 | R.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid till engine Nr. 38321 | 1 |
| 2 | 162359 | L.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid till engine Nr. 38321 | 1 |
| 2 | 162622 | R.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid from engine Nr. 38322 | 1 |
| 2 | 162623 | L.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid from engine Nr. 38322 | 1 |
| 2 | 162998 | R.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid till engine Nr. 38321 | 1 |
| 2 | 163860 | L.H. SIDE ENGINE CONNECTING CABLE -Not for USA, CDN and CH -Valid from engine Nr. 38322 | 1 |
| 2 | 162999 | L.H. SIDE ENGINE CONNECTING CABLE -Valid for USA, CDN and CH -Valid till engine Nr. 38321 | 1 |
| 3 | 159185 | BRACKET | 1 |
| 4 | 10441890 | BRACKET WITH SHEATH | 2 |
| 5 | 10519424 | WASHER | 2 |
| 6 | 102948 | NUT | 2 |
| 7 | 164921 | ELECTRONIC CONTROL STATION -Valid after stock exhaustion of 152213 | 2 |
| 8 | 10902024 | SCREW | 2 |
| 9 | 10977624 | SCREW | 2 |
| 10 | 138255D | COIL DECAL | 2 |
| 10 | 138255 | IGNITION COIL ASSEMBLY | 2 |
| 11 | 156483 | CABLE (FOR SPARK PLUG 8) | 1 |
| 11 | 156476 | CABLE (FOR SPARK PLUG 1) | 1 |
| 12 | 156482 | CABLE (FOR SPARK PLUG 7) | 1 |
| 12 | 156477 | CABLE (FOR SPARK PLUG 2) | 1 |
| 13 | 156478 | CABLE (FOR SPARK PLUG 3) | 1 |
| 13 | 156481 | CABLE (FOR SPARK PLUG 6) | 1 |
| 14 | 156480 | CABLE (FOR SPARK PLUG 5) | 1 |
| 14 | 156479 | CABLE (FOR SPARK PLUG 4) | 1 |
| 15 | 119402 | CLIP | 2 |
| 16 | 162475 | CLIP FIXING BRACKET | 2 |
| 17 | 102948 | NUT | 2 |
| 18 | 10519424 | WASHER | 2 |
| 19 | 10441790 | BRACKET WITH SHEATH | 1 |
| 20 | 129544 | CLIP | 1 |
| 21 | 143121 | CLIP | 1 |
| 22 | 162916 | ANGOLAR SPEED SENSOR | 2 |
| 23 | 140621 | THICKNESS | 2 |
| 24 | 139244 | SUPPORT | 1 |
| 25 | 15896470 | NUT | 1 |
| 26 | 11199274 | WASHER | 1 |
| 27 | 14305724 | SCREW | 2 |
| 28 | 12601274 | WASHER | 2 |
| 29 | 158334 | CONTROL UNIT FIXING BRACKET | 2 |
| 30 | 10902011 | SCREW | 8 |
| 31 | 10519424 | WASHER | 8 |
| 32 | 167098 | SPARK PLUG - For F355 not as spare part | 8 |
| 32 | 168325 | SPARK PLUG -Valid till stock exhaustion | 8 |
| 32 | PMR7A | SPARK PLUG -Valid after stock exhaustion of 168325 | 8 |
| 32 | 171626 | SPARK PLUG -Not as spare part now -Replaced by 167098 | 8 |
| 33 | 113647 | NUT | 4 |
| 34 | 10519377 | WASHER | 4 |
| 35 | 10441390 | BRACKET WITH SHEATH | 1 |
| 36 | 102741 | NUT | 1 |
| 37 | 10519424 | WASHER | 1 |
| 38 | 113647 | NUT | 8 |
| 39 | 10519377 | WASHER | 8 |
| 40 | 10399280 | CABLE GROMMET | 4 |
| 41 | 102948 | NUT | 2 |
| 42 | 10519424 | WASHER | 2 |
| 43 | 149951 | WASHER | 2 |
| 44 | 14497801 | WASHER | 2 |
| 45 | 10615474 | WASHER | 2 |
| 46 | 12648201 | WASHER | 2 |
| 47 | 106195 | BRACKET WITH SHEATH | 2 |
| 48 | 163132 | TESTER PUSH -Valid for USA | 2 |
| 49 | 163123 | TESTER PUSH CABLE -Valid for USA | 2 |
| 50 | 163160 | BRACKET -Valid for USA | 2 |
| 51 | 10441990 | R.H. BRACKET WITH SHEATH | 1 |
| 51 | 10441790 | L.H. BRACKET WITH SHEATH | 1 |
| 52 | 102948 | NUT | 1 |
| 53 | 10519424 | WASHER | 1 |
| 54 | 169180 | NUT | 1 |
| 55 | 14496324 | WASHER | 1 |
| 56 | 169180 | NUT | 1 |
| 57 | 14496324 | WASHER | 1 |
| 58 | 150866 | R.H. PHASE SENSOR | 1 |
| 59 | 12601274 | WASHER | 1 |
| 60 | 14305224 | SCREW | 1 |
| 61 | 150867 | SEAL RING | 1 |
| 62 | 160867 | BRACKET | 1 |
| 63 | 150866 | L.H. PHASE SENSOR -Valid till engine Nr. 38321 | 1 |
| 64 | 12601274 | WASHER -Valid till engine Nr. 38321 | 1 |
| 65 | 14305224 | SCREW -Valid till engine Nr. 38321 | 1 |
| 66 | 150867 | SEAL RING -Valid till engine Nr. 38321 | 1 |
| 67 | 160867 | BRACKET -Valid till engine Nr. 38321 | 1 |
