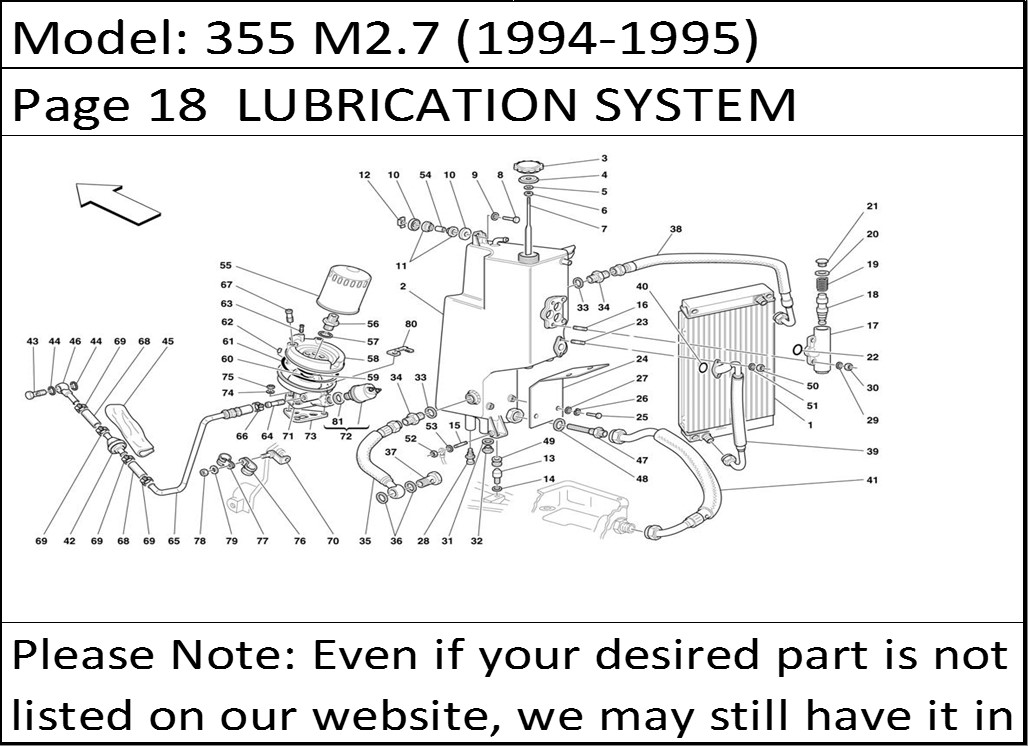

355 M2.7 (1994-1995) Page 18 LUBRICATION SYSTEM
Product Description
355 M2.7 (1994-1995) Page 18 LUBRICATION SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 152733 | OIL RADIATOR | 1 |
| 2 | 170063 | OIL TANK -Valid after stock exhaustion of 161485 | 1 |
| 3 | 145623 | TANK PLUG | 1 |
| 4 | 180585 | GASKET | 1 |
| 5 | 12601274 | WASHER | 1 |
| 6 | 15896214 | NUT | 1 |
| 7 | 145112 | OIL LEVEL ROD | 1 |
| 8 | 16043834 | SCREW | 2 |
| 9 | 127496 | WASHER | 2 |
| 10 | 107979 | CUP | 4 |
| 11 | 107978 | PAD | 4 |
| 12 | 141530 | NUT WITH CAGE | 2 |
| 13 | 125708 | SUPPORT PIN | 1 |
| 14 | 108242 | WASHER | 1 |
| 15 | 11000824 | STUD | 1 |
| 16 | 13541024 | STUD | 4 |
| 17 | 160759 | THERMOSTAT VALVE BODY | 1 |
| 18 | 163951 | THERMOSTAT VALVE -Valid after stock exhaustion of 157413 | 1 |
| 18 | 157413 | THERMOSTAT VALVE -Valid till stock exhaustion | 1 |
| 19 | 136867 | SPRING | 1 |
| 20 | 144485 | GASKET | 1 |
| 21 | 136868 | PLUG | 1 |
| 22 | 139934 | GASKET O.R. | 3 |
| 23 | 13540824 | STUD | 2 |
| 24 | 145045 | ANTI-HEAT SHIELD | 1 |
| 25 | 10977524 | SCREW | 4 |
| 26 | 127493 | WASHER | 4 |
| 27 | 12637804 | WASHER | 4 |
| 28 | 148676 | OIL THERMISTOR -Valid for AUS | 1 |
| 28 | 107576 | OIL THERMISTOR -Not for AUS | 1 |
| 29 | 10519424 | WASHER | 4 |
| 30 | 102741 | NUT | 4 |
| 31 | 10257060 | GASKET | 1 |
| 32 | 10300771 | PLUG | 1 |
| 33 | 144485 | GASKET | 2 |
| 34 | 145085 | UNION | 2 |
| 35 | 145040 | HOSE FROM ENGINE TO RESERVOIR | 1 |
| 36 | 144487 | GASKET | 2 |
| 37 | 129809 | UNION | 1 |
| 38 | 141820 | HOSE FROM RESERVOIR TO RADIATOR | 1 |
| 39 | 145041 | HOSE FROM RADIATOR TO RESERVOIR | 1 |
| 40 | 139934 | O.R. GASKET | 1 |
| 41 | 145039 | HOSE FROM RESERVOIR TO OIL PUMP | 1 |
| 42 | 164548 | ONE-WAY VALVE -Valid after stock exhaustion of 161138 | 1 |
| 43 | 153419 | UNION | 1 |
| 44 | 10257060 | GASKET | 2 |
| 45 | 161353 | PROTECTION | 1 |
| 46 | 161065 | ORIENTABLE UNION | 1 |
| 47 | 145086 | FILTER ASSEMBLY | 1 |
| 48 | 145191 | GASKET | 1 |
| 49 | 103516 | CABLE GROMMET | 1 |
| 50 | 102741 | NUT | 2 |
| 51 | 10519424 | WASHER | 2 |
| 52 | 15896470 | NUT | 1 |
| 53 | 149951 | WASHER | 1 |
| 54 | 107980 | SPACER | 2 |
| 55 | 197654 | OIL FILTER CARTRIDGE | 1 |
| 56 | 157679 | UNION | 1 |
| 57 | 10246160 | GASKET | 1 |
| 58 | 157678 | OIL FILTER COVER | 1 |
| 59 | 157869 | O.R. GASKET | 1 |
| 60 | 157872 | O.R. GASKET | 1 |
| 61 | 157870 | O.R. GASKET | 1 |
| 62 | 109657 | CENTERING DOWEL | 1 |
| 63 | 117715 | UNION | 1 |
| 64 | 154525 | UNION | 1 |
| 65 | 161061 | OIL EXHAUST TUBE | 1 |
| 66 | 12179690 | SCREW COLLAR | 1 |
| 67 | 157681 | UNION | 2 |
| 68 | 161141 | RUBBER HOSE | 2 |
| 69 | 13000190 | SCREW COLLAR | 4 |
| 70 | 149694 | PIPE FIXING BRACKET | 1 |
| 71 | 157677 | OIL FILTER BASE-PLATE | 1 |
| 72 | 135940 | COMPLETE OIL PRESSURE TRANSMITTER | 1 |
| 73 | 188052 | GASKET | 1 |
| 74 | 12601374 | WASHER | 3 |
| 75 | 104030 | NUT | 3 |
| 76 | 10441890 | BRACKET WITH SHEATH | 1 |
| 77 | 10441390 | BRACKET WITH SHEATH | 1 |
| 78 | 102741 | NUT | 1 |
| 79 | 12601274 | WASHER | 1 |
| 80 | 162606 | CLIP -Valid from engine Nr. 38322 | 1 |
| 81 | 10259960 | GASKET | 1 |
