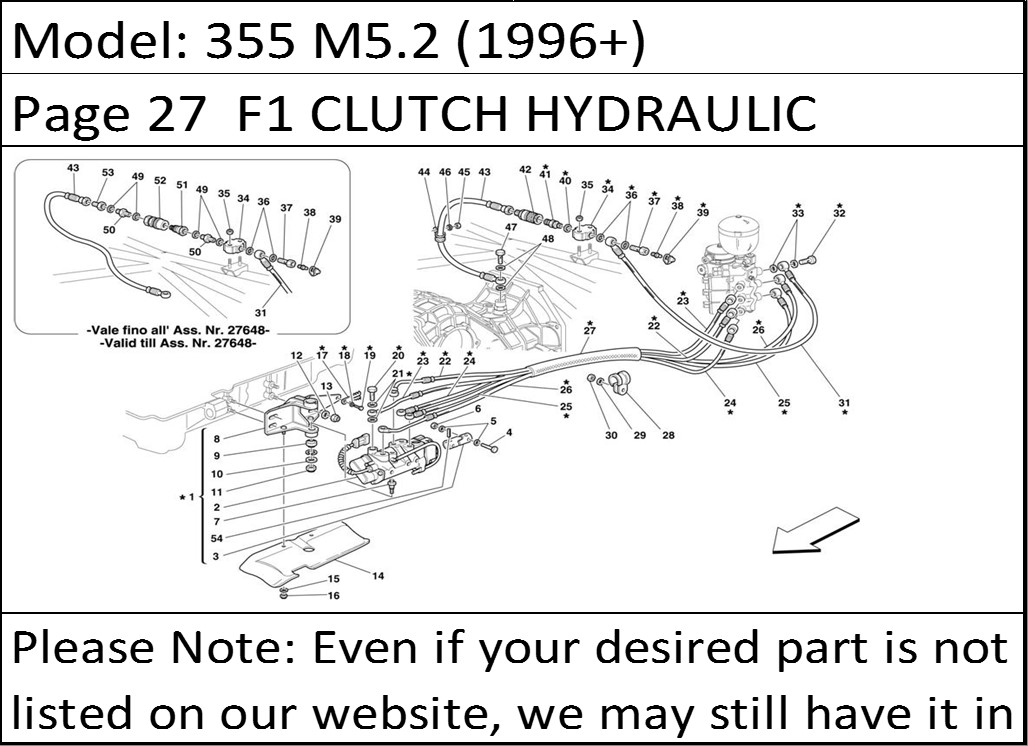

355 M5.2 (1996+) Page 27 F1 CLUTCH HYDRAULIC CONTROL VALID FOR 355 F1 CARS
Product Description
355 M5.2 (1996+) Page 27 F1 CLUTCH HYDRAULIC CONTROL VALID FOR 355 F1 CARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 175834 | F1 GEARBOX SYSTEM COMPONENTS KIT (See also TAB. 28) | 1 |
| 1 | 177687 | COMPLETE HYDRAULIC ACTUATOR | 1 |
| 2 | 177687 | ACTUATOR | 1 |
| 3 | 167946 | COUPLING BALL JOINT | 1 |
| 4 | 170767 | SCREW | 1 |
| 5 | 103493 | WASHER | 2 |
| 6 | 101139 | NUT | 1 |
| 7 | 169221 | THREADED PIN | 2 |
| 8 | 169219 | ACTUATOR SUPPORT | 1 |
| 9 | 169222 | BALL JOINT | 2 |
| 10 | 126980 | WASHER | 2 |
| 11 | 101139 | NUT | 2 |
| 12 | 12646724 | WASHER | 4 |
| 13 | 101139 | NUT | 4 |
| 14 | 168523 | SHIELD FOR ACTUATOR PROTECTION | 1 |
| 15 | 12637824 | WASHER | 2 |
| 16 | 12578011 | NUT | 2 |
| 17 | 166935 | CLIP | 1 |
| 18 | 12601074 | WASHER | 1 |
| 19 | 10444521 | SCREW | 1 |
| 20 | 111644 | UNION | 5 |
| 21 | 10261060 | GASKET | 10 |
| 22 | 168472 | PIPE (EV4) | 1 |
| 23 | 168470 | PIPE (EV3) | 1 |
| 24 | 168474 | PIPE (EV5) | 1 |
| 25 | 168468 | PIPE (EV2) | 1 |
| 26 | 168466 | PIPE (EV1) | 1 |
| 27 | 168525 | PROTECTION SHEATH | 1 |
| 28 | 124034 | BRACKET WITH SHEATH | 2 |
| 29 | 14496424 | WASHER | 2 |
| 30 | 102741 | NUT | 2 |
| 31 | 175833 | PIPE FROM PUMP TO BLOCK | 1 |
| 32 | 111644 | UNION | 6 |
| 33 | 10261060 | GASKET | 12 |
| 34 | 175667 | BLOCK | 1 |
| 35 | 102741 | NUT | 2 |
| 36 | 10261060 | GASKET | 2 |
| 37 | 171630 | UNION | 1 |
| 38 | 152954 | BLEEDER SCREW | 1 |
| 39 | 152955 | PROTECTION BOOT | 1 |
| 40 | 10284460 | GASKET -Valid from Ass. Nr. 27649 | 1 |
| 41 | 70001184 | QUICK MALE COUPLING -Valid from Ass. Nr. 27649 | 1 |
| 42 | 70001184 | QUICK FEMALE COUPLING -Valid from Ass. Nr. 27649 | 1 |
| 43 | 174421 | PIPE FROM BLOCK TO GEARBOX | 1 |
| 44 | 10441790 | BRACKET WITH SHEATH | 1 |
| 45 | 102741 | NUT | 1 |
| 46 | 12639724 | WASHER | 1 |
| 47 | 171454 | UNION | 1 |
| 48 | 10261060 | GASKET | 2 |
| 49 | 10284460 | GASKET -Valid till Ass. Nr. 27648 | 4 |
| 50 | 172447 | UNION -Valid till Ass. Nr. 27648 | 2 |
| 51 | 171773 | QUICK MALE COUPLING -Valid till Ass. Nr. 27648 | 1 |
| 52 | 171602 | QUICK FEMALE COUPLING -Valid till Ass. Nr. 27648 | 1 |
| 53 | 174317 | UNION -Valid till Ass. Nr. 27648 | 1 |
| 54 | 14164274 | PIN | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
