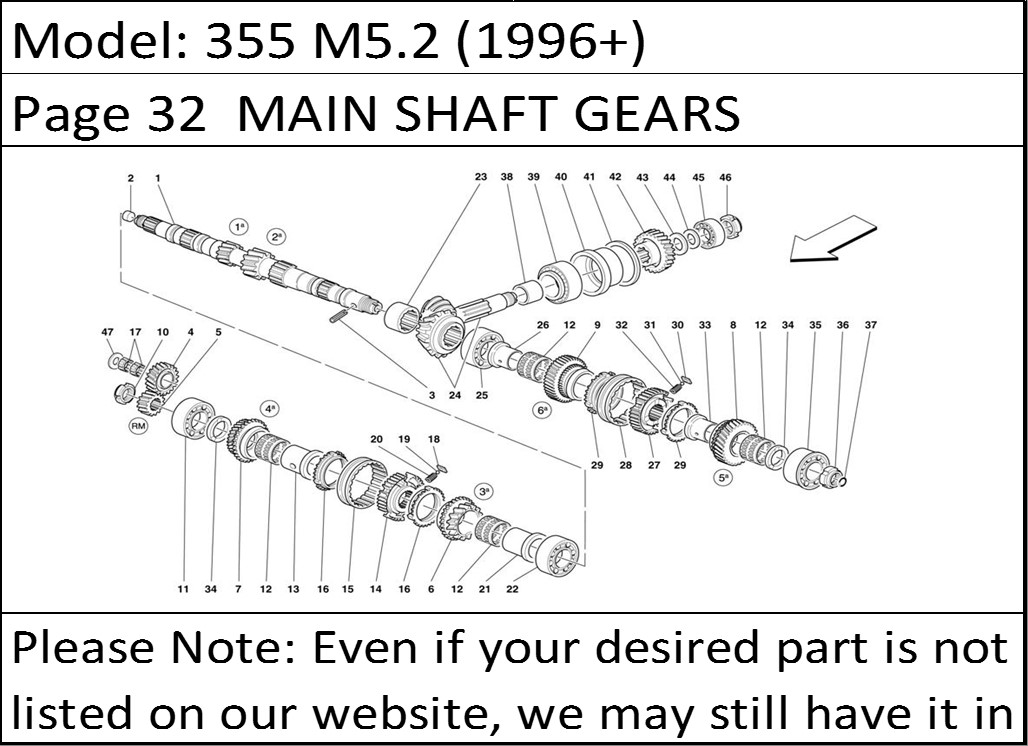

355 M5.2 (1996+) Page 32 MAIN SHAFT GEARS
Product Description
355 M5.2 (1996+) Page 32 MAIN SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 70000828 | PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR -Valid till gearbox Nr. 768 -Not for ABS | 1 |
| - | 70000846 | PINION COMPLETE KIT FOR NEUTRAL/REVERSE | 1 |
| - | 70000830 | PINION COMPLETE KIT FOR 3rd GEAR | 1 |
| - | 70000831 | PINION COMPLETE KIT FOR 4th GEAR | 1 |
| - | 70000873 | PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR -Valid from gearbox Nr. 769 and from 1st | 1 |
| - | 70000838 | PINION COMPLETE KIT FOR 6th GEAR | 1 |
| - | 70000832 | PINION COMPLETE KIT FOR 5th GEAR | 1 |
| 1 | 156925 | MAIN SHAFT FOR GEAR LEVER -Not as spare part -With the pinion complete kit for main shaft/1st g | 1 |
| 2 | 14328401 | PLUG | 1 |
| 3 | 14601470 | FLEXIBLE PIN | 1 |
| 4 | 160942 | IDLE GEAR FOR NEUTRAL/REVERSE -Not as spare part -With the pinion kit for Neutral/Reverse only | 1 |
| 5 | 155644 | RM DRIVING GEAR -Not as spare part -With the pinion kit for Neutral/Reverse only | 1 |
| 6 | 157260 | PINION FOR 3rd GEAR -Not as spare part -With the pinion complete kit for 3rd gear only | 1 |
| 7 | 155657 | PINION FOR 4th GEAR -Not as spare part -With the pinion complete kit for 4th gear only | 1 |
| 8 | 155658 | PINION FOR 5th GEAR -Not as spare part -With the pinion complete kit for 5th gear only | 1 |
| 9 | 155659 | PINION FOR 6th GEAR -Not as spare part -With the pinion complete kit for 6th gear only | 1 |
| 10 | 125480 | RING NUT | 1 |
| 11 | 157179 | BEARING | 1 |
| 12 | 107525 | ROLLER CAGE | 4 |
| 13 | 151576 | BUSHING | 1 |
| 14 | 161015 | SYNCHRONIZER BODY | 1 |
| 15 | 152198 | SLEEVE FOR SYNCHRONIZER | 1 |
| 16 | 155155 | SYNCHRONIZER RING | 2 |
| 17 | 104734 | ROLLER CAGE | 2 |
| 18 | 152195 | PAD FOR SYNCHRONIZER | 3 |
| 19 | 152197 | BALL | 3 |
| 20 | 161016 | SPRING FOR SYNCHRONIZER | 3 |
| 21 | 152914 | BUSHING | 1 |
| 22 | 157177 | BEARING | 1 |
| 23 | 138694 | SPACER | 1 |
| 24 | 168047 | COMPLETE BEVEL SET | 1 |
| 25 | 157178 | BEARING | 1 |
| 26 | 152386 | BUSHING | 1 |
| 27 | 152207 | SYNCHRONIZER BODY | 1 |
| 28 | 152206 | SLEEVE FOR SYNCHRONIZER | 1 |
| 29 | 152209 | SYNCHRONIZER RING | 2 |
| 30 | 152195 | PAD FOR SYNCHRONIZER | 3 |
| 31 | 152197 | BALL | 3 |
| 32 | 152196 | SPRING FOR SYNCHRONIZER | 3 |
| 33 | 151576 | BUSHING | 1 |
| 34 | 153457 | SPACER mm. 4,2 | 2 |
| 34 | 153459 | SPACER mm. 4,3 | 2 |
| 34 | 164932 | SPACER mm. 4,4 | 2 |
| 34 | 164933 | SPACER mm. 4,5 | 2 |
| 34 | 168073 | SPACER mm. 4,6 | 2 |
| 34 | 149365 | SPACER mm. 3,4 | 2 |
| 34 | 149366 | SPACER mm. 3,5 | 2 |
| 34 | 149370 | SPACER mm. 3,9 | 2 |
| 34 | 149372 | SPACER mm. 4,1 | 2 |
| 34 | 149371 | SPACER mm. 4,0 | 2 |
| 34 | 149369 | SPACER mm. 3,8 | 2 |
| 34 | 149368 | SPACER mm. 3,7 | 2 |
| 34 | 149367 | SPACER mm. 3,6 | 2 |
| 35 | 155694 | BEARING | 1 |
| 36 | 153000 | RING NUT | 1 |
| 37 | 109724 | O.R. GASKET | 1 |
| 38 | 131335 | BAG FOR BEARINGS | 1 |
| 39 | 131015 | BEARING | 1 |
| 40 | 139828 | BAG FOR BEARING | 1 |
| 41 | 170066 | SPACER mm. 1,7 | 1 |
| 41 | 170065 | SPACER mm. 1,6 | 1 |
| 41 | 131392 | SPACER mm. 2,2 | 1 |
| 41 | 131388 | SPACER mm. 1,8 | 1 |
| 41 | 131389 | SPACER mm. 1,9 | 1 |
| 41 | 131390 | SPACER mm. 2,0 | 1 |
| 41 | 131391 | SPACER mm. 2,1 | 1 |
| 41 | 131393 | SPACER mm. 2,3 | 1 |
| 42 | 160060 | DRIVEN GEAR ON PINION -Valid for USA, CDN and AUS -Not as spare part -With the gear transmission | 1 |
| 42 | 155112 | DRIVEN GEAR ON PINION -Not for USA, CDN and AUS -Not as spare part -With the gear transmission to | 1 |
| 43 | 157319 | SPACER | 1 |
| 44 | 141046 | SPACER mm. 2,05 | 1 |
| 44 | 131374 | SPACER mm. 1,8 | 1 |
| 44 | 131376 | SPACER mm. 2,0 | 1 |
| 44 | 131377 | SPACER mm. 2,1 | 1 |
| 44 | 131378 | SPACER mm. 2,2 | 1 |
| 44 | 131379 | SPACER mm. 2,3 | 1 |
| 44 | 157993 | SPACER mm. 2,4 | 1 |
| 44 | 157994 | SPACER mm. 2,5 | 1 |
| 44 | 141048 | SPACER mm. 2,15 | 1 |
| 44 | 131375 | SPACER mm. 1,9 | 1 |
| 44 | 141044 | SPACER mm. 1,95 | 1 |
| 45 | 131016 | BEARING | 1 |
| 46 | 105137 | RING NUT | 1 |
| 47 | 160939 | SPACER mm. 3,4 | 1 |
| 47 | 160940 | SPACER mm. 3,6 | 1 |
| 47 | 160929 | SPACER mm. 3,5 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
