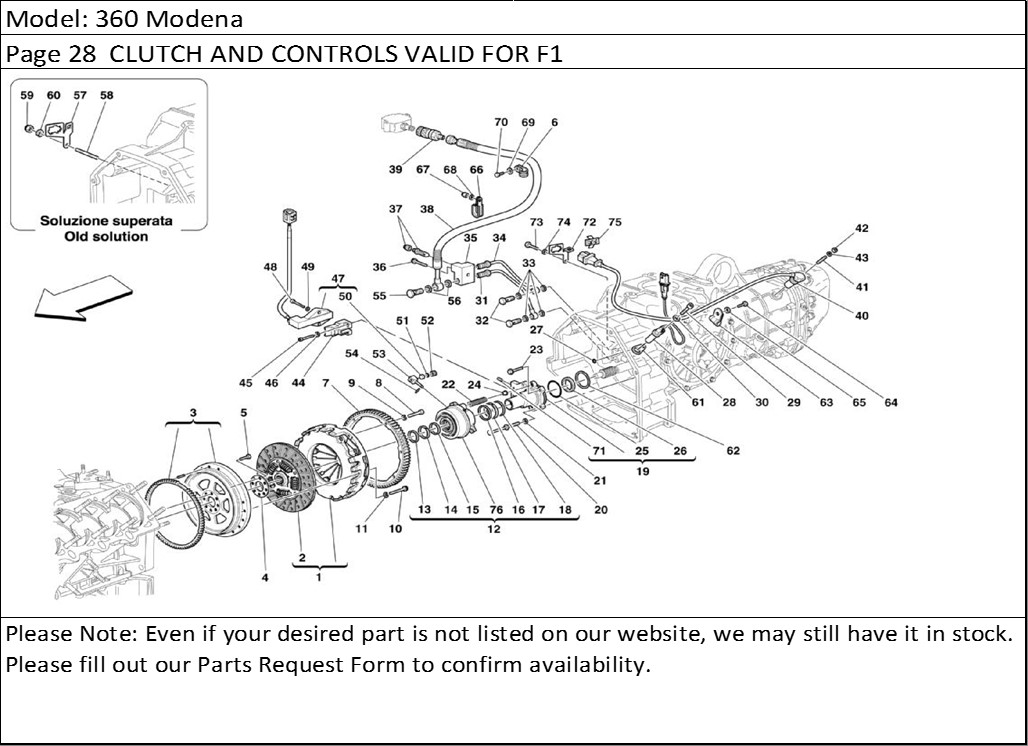

360 Modena Page 28 CLUTCH AND CONTROLS VALID FOR F1
Product Description
360 Modena Page 28 CLUTCH AND CONTROLS VALID FOR F1
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 201680 | COMPLETE CLUTCH | 1 |
| 2 | 201680 | CLUTCH DISC | 1 |
| 3 | 181596 | COMPLETE ENGINE FLYWHEEL | 1 |
| 4 | 103876 | FLYWHEEL FIXING WASHER | 1 |
| 5 | 201755 | SCREW | 8 |
| 5 | 103875 | SCREW -Not as spare part -Replaced by 201755 | 8 |
| 6 | 121834 | BRACKET | 1 |
| 7 | 186157 | RING GEAR -Valid from car Ass. Nr. 43022 (gearbox No. 7922) | 1 |
| 7 | 176917 | RING GEAR -Valid till car Ass. Nr. 43021 (gearbox No. 7921) -Not as spare part -Replaced by clutch 186158 + ring gear 186157 and appropriate fixages | 1 |
| 8 | 186196 | SCREW -For 6 holes ring gear q.ty 6 | 3 |
| 9 | 127494 | WASHER -For 3 holes ring gear | 3 |
| 9 | 11197771 | WASHER -For 6 holes ring gear | 6 |
| 10 | 178739 | SCREW | 15 |
| 11 | 11194379 | WASHER | 15 |
| 12 | 178331 | COMPLETE THRUST BEARING -Not as spare part | 1 |
| 13 | 181837 | SCRAPER RING | 1 |
| 14 | 154507 | RING -Not as spare part -Replaced by 189184 | 1 |
| 14 | 170416 | RING | 1 |
| 15 | 181838 | SEAL RING | 1 |
| 16 | 181828 | SEAL RING | 1 |
| 17 | 154507 | RING | 1 |
| 18 | 181836 | SCRAPER RING | 1 |
| 19 | CRF360/430 | COMPLETE BEARING SUPPORT FLANGE | 1 |
| 20 | 205396 | STUD FOR END OF STROKE -Valid from engine Nr. 81310 | 2 |
| 21 | 12601374 | WASHER -Not as spare part | 2 |
| 22 | 155207 | PRELOAD SPRING | 2 |
| 23 | 13839224 | SCREW | 2 |
| 24 | 155206 | SPACER | 2 |
| 25 | 136140 | O.R. GASKET | 1 |
| 26 | 172363 | SEAL RING | 1 |
| 27 | 166432 | O.R. GASKET | 2 |
| 28 | 182194 | ANGOLAR SPEED SENSOR | 2 |
| 29 | 14305724 | SCREW | 2 |
| 30 | 12601274 | WASHER | 2 |
| 31 | 180183 | CLUTCH CONTROL TUBE | 1 |
| 32 | 11903811 | UNION | 2 |
| 33 | 10284460 | GASKET | 4 |
| 34 | 180184 | BLEEDER SYSTEM PIPE | 1 |
| 35 | 235706 | BLOCK | 1 |
| 36 | 16286324 | SCREW | 1 |
| 37 | 121699 | BLEEDER SCREW | 1 |
| 38 | 239429 | COMPLETE CLUTCH HOSE | 1 |
| 39 | 70001184 | FEMALE COUPLING | 1 |
| 40 | 168729 | ELECTRO-MAGNETIC SENSOR | 1 |
| 41 | 11500124 | STUD | 1 |
| 42 | 10720124 | NUT | 1 |
| 43 | 12604274 | WASHER | 1 |
| 44 | 201282 | SUPPORT | 1 |
| 45 | 14358524 | SCREW | 2 |
| 46 | 10519378 | WASHER | 2 |
| 47 | 178060 | COMPLETE SENSOR KIT -Includes sensor ref. 50 and magnet | 1 |
| 48 | 14303324 | SCREW | 2 |
| 49 | 10519224 | WASHER | 2 |
| 50 | 178060 | MAGNET -Not as spare part now -Replaced by 178060 | 1 |
| 51 | 165658 | O.R. GASKET | 1 |
| 52 | 167802 | PLUG | 1 |
| 53 | 165567 | PIN | 1 |
| 54 | 14158570 | PIN | 1 |
| 55 | 171454 | UNION | 1 |
| 56 | 10261060 | GASKET | 2 |
| 57 | 185230 | SENSOR FIXING BRACKET -Not as spare part -Replaced by 197831 + clip 170301 ref.71 | 1 |
| 57 | 197831 | SENSOR FIXING BRACKET | 1 |
| 58 | 65928500 | THREADED PLUG | 2 |
| 59 | 10902024 | SCREW | 1 |
| 60 | 10519424 | WASHER | 1 |
| 61 | 182896 | THICKNESS | 2 |
| 62 | 173360 | SPACER -Possible fitting | 2 |
| 63 | 10440990 | BRACKET WITH SHEATH | 1 |
| 64 | 10977724 | SCREW | 1 |
| 65 | 12637824 | WASHER | 1 |
| 66 | 139512 | BRACKET WITH SHEATH | 1 |
| 67 | 102741 | NUT | 1 |
| 68 | 14496424 | WASHER | 1 |
| 69 | 14496424 | WASHER | 1 |
| 70 | 10979424 | SCREW | 1 |
| 71 | 170301 | CLIP | 1 |
| 72 | 201024 | THRUST BEARING | 1 |
| 72 | 178331 | THRUST BEARING -Not as spare part -Replaced by 201024 | 1 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 64529600 | SPACER | 8 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -For cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer | 2 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -For cars with headlights washer | 6 |
| 24 | 65896700 | L.H. SUPPORT -For cars with headlights washer | 1 |
| 24 | 65896600 | R.H. SUPPORT -For cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -For cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -For cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer | 4 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 16043934 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 40 | 14190190 | NUT WITH CAGE | 2 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 42 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 43 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 44 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 45 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 5 | 67465400 | Description not available | |
| 5 | 67465405 | Description not available | |
| 5 | 67465427 | Description not available | |
| 5 | 67465431 | Description not available | |
| 5 | 67465505 | Description not available |
