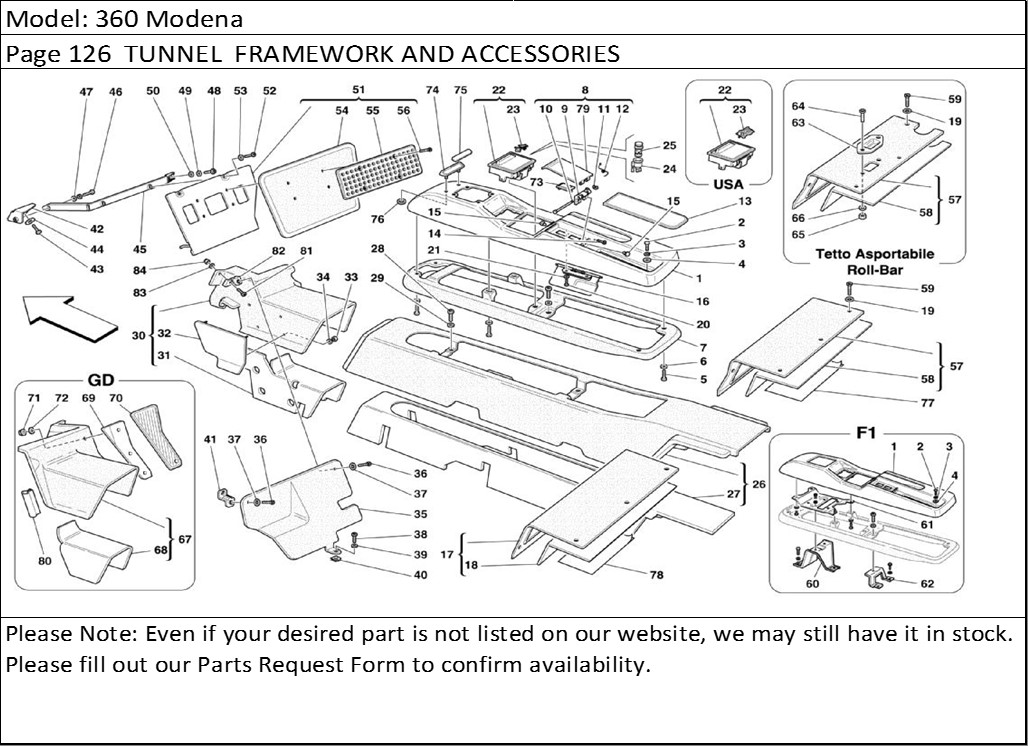

360 Modena Page 126 TUNNEL FRAMEWORK AND ACCESSORIES
Product Description
360 Modena Page 126 TUNNEL FRAMEWORK AND ACCESSORIES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 66121600 | CENTRAL UPPER TUNNEL COVER -Valid for F1 -Valid from Ass. Nr. 42147 | 1 |
| 1 | 65386400 | CENTRAL UPPER TUNNEL COVER -Valid for F1 -Valid till Ass. Nr. 42146 | 1 |
| 1 | 65158600 | CENTRAL UPPER TUNNEL COVER -Not for F1 -Valid till Ass. Nr. 42146 | 1 |
| 1 | 66121500 | CENTRAL UPPER TUNNEL COVER -Not for F1 -Valid from Ass. Nr. 42147 | 1 |
| 2 | 16043424 | SCREW | 1 |
| 3 | 127496 | WASHER | 1 |
| 4 | 13550301 | WASHER | 1 |
| 5 | 13276011 | SCREW | 5 |
| 6 | 12644424 | WASHER | 5 |
| 7 | 65158298 | Description not available | |
| 7 | 65158487 | Description not available | |
| 7 | 65158498 | Description not available | |
| 7 | 65158296 | Description not available | |
| 7 | 65158483 | Description not available | |
| 7 | 65158494 | Description not available | |
| 7 | 65158484 | Description not available | |
| 7 | 65158496 | Description not available | |
| 7 | 65158284 | Description not available | |
| 7 | 65158294 | Description not available | |
| 7 | 65158283 | Description not available | |
| 7 | 65158490 | Description not available | |
| 7 | 65158482 | Description not available | |
| 7 | 65158290 | Description not available | |
| 7 | 65158287 | Description not available | |
| 7 | 65158282 | Description not available | |
| 8 | 65158700 | SHUTTER ASSEMBLY -Valid till Ass. Nr. 42146 | 1 |
| 8 | 66123500 | SHUTTER ASSEMBLY -Valid from Ass. Nr. 42147 | 1 |
| 9 | 65308900 | BOX HINGE -Valid till Ass. Nr. 42146 | 1 |
| 9 | 66121800 | BOX HINGE -Valid from Ass. Nr. 42147 | 1 |
| 10 | 65309000 | PIN | 1 |
| 11 | 11087576 | FLEXIBLE RING | 2 |
| 12 | 65309100 | SPRING FOR DOOR | 1 |
| 13 | 65549219 | Description not available | |
| 13 | 65549227 | Description not available | |
| 13 | 65549205 | Description not available | |
| 13 | 65549229 | Description not available | |
| 13 | 65549202 | Description not available | |
| 13 | 65549200 | Description not available | |
| 13 | 65549217 | Description not available | |
| 13 | 65549228 | Description not available | |
| 13 | 65549204 | Description not available | |
| 13 | 65549225 | Description not available | |
| 13 | 65549230 | Description not available | |
| 13 | 65549231 | Description not available | |
| 14 | 14440524 | SCREW | 2 |
| 15 | 65391300 | RUBBER | 2 |
| 16 | 66465700 | COMPLETE BRAKE DOOR | 1 |
| 17 | 65319498 | Description not available | |
| 17 | 65719798 | Description not available | |
| 17 | 65728782 | Description not available | |
| 17 | 65728790 | Description not available | |
| 17 | 65719782 | Description not available | |
| 17 | 65976784 | Description not available | |
| 17 | 65719790 | Description not available | |
| 17 | 65719787 | Description not available | |
| 17 | 65728784 | Description not available | |
| 17 | 65976798 | Description not available | |
| 17 | 65728796 | Description not available | |
| 17 | 65976787 | Description not available | |
| 17 | 65728794 | Description not available | |
| 17 | 65728783 | Description not available | |
| 17 | 65976782 | Description not available | |
| 17 | 65976790 | Description not available | |
| 17 | 65719796 | Description not available | |
| 17 | 65976794 | Description not available | |
| 17 | 65319487 | Description not available | |
| 17 | 65319482 | Description not available | |
| 17 | 65319490 | Description not available | |
| 17 | 65719783 | Description not available | |
| 17 | 65719794 | Description not available | |
| 17 | 65319496 | Description not available | |
| 17 | 65319494 | Description not available | |
| 17 | 65728787 | Description not available | |
| 17 | 65728798 | Description not available | |
| 17 | 65319483 | Description not available | |
| 17 | 65976783 | Description not available | |
| 17 | 65719784 | Description not available | |
| 17 | 65319484 | Description not available | |
| 17 | 65976796 | Description not available | |
| 18 | 65388100 | L.H. INSULATION | 1 |
| 19 | 12611442 | WASHER -For clear carpets | 8 |
| 19 | 12611407 | WASHER -For dark carpets | 8 |
| 20 | 115670 | SCREW | 2 |
| 21 | 10519278 | WASHER | 2 |
| 22 | 68401700 | COMPLETE ASH TRAY -Valid for USA MY 2004 | 1 |
| 22 | 67505800 | COMPLETE ASH TRAY | 1 |
| 23 | 64460400 | FERRARI-PININFARINA MARK | 1 |
| 23 | 68401600 | 50 YEARS USA MARK -Valid for USA MY 2004 | 1 |
| 24 | 226941 | CIGAR LIGHTER BODY | 1 |
| 25 | 61107500 | CIGAR LIGHTER | 1 |
| 26 | 65305194 | Description not available | |
| 26 | 65305190 | Description not available | |
| 26 | 65712896 | Description not available | |
| 26 | 65712884 | Description not available | |
| 26 | 65305198 | Description not available | |
| 26 | 65712894 | Description not available | |
| 26 | 65305187 | Description not available | |
| 26 | 65712887 | Description not available | |
| 26 | 65712883 | Description not available | |
| 26 | 65305183 | Description not available | |
| 26 | 65712898 | Description not available | |
| 26 | 65305182 | Description not available | |
| 26 | 65712882 | Description not available | |
| 26 | 65305184 | Description not available | |
| 26 | 65305196 | Description not available | |
| 26 | 65712890 | Description not available | |
| 27 | 65391000 | TUNNEL INSULATION | 1 |
| 28 | 13276470 | SCREW | 4 |
| 29 | 12644424 | WASHER | 4 |
| 30 | 65072490 | Description not available | |
| 30 | 65072482 | Description not available | |
| 30 | 65072496 | Description not available | |
| 30 | 65072487 | Description not available | |
| 30 | 65072484 | Description not available | |
| 30 | 65072494 | Description not available | |
| 30 | 65072483 | Description not available | |
| 30 | 65072498 | Description not available | |
| 31 | 65390900 | FRONT INSULATION TUNNEL -Not for GD | 1 |
| 32 | 65305300 | ACCELERATOR PEDAL PROTECTION -Not for GD | 1 |
| 33 | 10794014 | NUT -Not for GD | 4 |
| 34 | 12642801 | WASHER -Not for GD | 4 |
| 35 | 65712583 | Description not available | |
| 35 | 65712594 | Description not available | |
| 35 | 65708890 | Description not available | |
| 35 | 65712582 | Description not available | |
| 35 | 65708898 | Description not available | |
| 35 | 65712596 | Description not available | |
| 35 | 65712584 | Description not available | |
| 35 | 65708884 | Description not available | |
| 35 | 65708896 | Description not available | |
| 35 | 65712587 | Description not available | |
| 35 | 65712598 | Description not available | |
| 35 | 65708883 | Description not available | |
| 35 | 65708882 | Description not available | |
| 35 | 65708894 | Description not available | |
| 35 | 65712590 | Description not available | |
| 35 | 65708887 | Description not available | |
| 36 | 13311077 | SCREW | 2 |
| 37 | 12611107 | WASHER | 2 |
| 38 | 13273911 | SCREW | 1 |
| 39 | 12638124 | WASHER | 1 |
| 40 | 14370971 | BRACKET | 1 |
| 41 | 65709300 | L.H. UPPER BRACKET | 1 |
| 42 | 65538800 | BRACKET -Valid for GD | 1 |
| 42 | 65523500 | BRACKET -Not for GD | 1 |
| 43 | 10902424 | SCREW | 1 |
| 44 | 12640624 | WASHER | 1 |
| 45 | 65538700 | SUPPORT PIPE -Valid for GD | 1 |
| 45 | 65522900 | SUPPORT PIPE -Not for GD | 1 |
| 46 | 10902424 | SCREW | 1 |
| 47 | 12640624 | WASHER | 1 |
| 48 | 10902424 | SCREW | 1 |
| 49 | 12601274 | WASHER | 1 |
| 50 | 12644424 | WASHER | 1 |
| 51 | 65538082 | Description not available | |
| 51 | 66125298 | Description not available | |
| 51 | 65538090 | Description not available | |
| 51 | 66125394 | Description not available | |
| 51 | 65538098 | Description not available | |
| 51 | 66125287 | Description not available | |
| 51 | 65538094 | Description not available | |
| 51 | 66125283 | Description not available | |
| 51 | 66125387 | Description not available | |
| 51 | 66125398 | Description not available | |
| 51 | 63355383 | Description not available | |
| 51 | 63355387 | Description not available | |
| 51 | 63355398 | Description not available | |
| 51 | 63355394 | Description not available | |
| 51 | 66125294 | Description not available | |
| 51 | 65538083 | Description not available | |
| 51 | 65538084 | Description not available | |
| 51 | 66125282 | Description not available | |
| 51 | 66125290 | Description not available | |
| 51 | 63355396 | Description not available | |
| 51 | 63355384 | Description not available | |
| 51 | 66125382 | Description not available | |
| 51 | 66125390 | Description not available | |
| 51 | 66125383 | Description not available | |
| 51 | 66125284 | Description not available | |
| 51 | 66125396 | Description not available | |
| 51 | 66125384 | Description not available | |
| 51 | 66125296 | Description not available | |
| 51 | 63355382 | Description not available | |
| 51 | 63355390 | Description not available | |
| 51 | 65538096 | Description not available | |
| 51 | 65538087 | Description not available | |
| 52 | 13274217 | SCREW | 2 |
| 53 | 12601177 | WASHER | 2 |
| 54 | 65071583 | Description not available | |
| 54 | 65538196 | Description not available | |
| 54 | 65538198 | Description not available | |
| 54 | 65538187 | Description not available | |
| 54 | 65538184 | Description not available | |
| 54 | 65071596 | Description not available | |
| 54 | 65071584 | Description not available | |
| 54 | 65071594 | Description not available | |
| 54 | 65538194 | Description not available | |
| 54 | 65538183 | Description not available | |
| 54 | 65538182 | Description not available | |
| 54 | 65538190 | Description not available | |
| 54 | 65071598 | Description not available | |
| 54 | 65071587 | Description not available | |
| 54 | 65071590 | Description not available | |
| 54 | 65071582 | Description not available | |
| 55 | 66122200 | COVER -Valid from Ass. Nr. 42147 | 1 |
| 55 | 65071600 | COVER -Valid till Ass. Nr. 42146 | 1 |
| 56 | 65847800 | SCREW | 4 |
| 57 | 65976690 | Description not available | |
| 57 | 65976684 | Description not available | |
| 57 | 65728687 | Description not available | |
| 57 | 65728682 | Description not available | |
| 57 | 65319194 | Description not available | |
| 57 | 65319183 | Description not available | |
| 57 | 65719683 | Description not available | |
| 57 | 65319190 | Description not available | |
| 57 | 65319182 | Description not available | |
| 57 | 65319196 | Description not available | |
| 57 | 65976682 | Description not available | |
| 57 | 65728683 | Description not available | |
| 57 | 65728684 | Description not available | |
| 57 | 65728690 | Description not available | |
| 57 | 65719696 | Description not available | |
| 57 | 65719690 | Description not available | |
| 57 | 65719682 | Description not available | |
| 57 | 65719684 | Description not available | |
| 57 | 65319184 | Description not available | |
| 57 | 65976696 | Description not available | |
| 57 | 65719694 | Description not available | |
| 57 | 65728698 | Description not available | |
| 57 | 65319198 | Description not available | |
| 57 | 65728694 | Description not available | |
| 57 | 65976694 | Description not available | |
| 57 | 65728696 | Description not available | |
| 57 | 65719687 | Description not available | |
| 57 | 65319187 | Description not available | |
| 57 | 65976683 | Description not available | |
| 57 | 65976687 | Description not available | |
| 57 | 65976698 | Description not available | |
| 57 | 65719698 | Description not available | |
| 58 | 65319200 | R.H. INSULATION | 1 |
