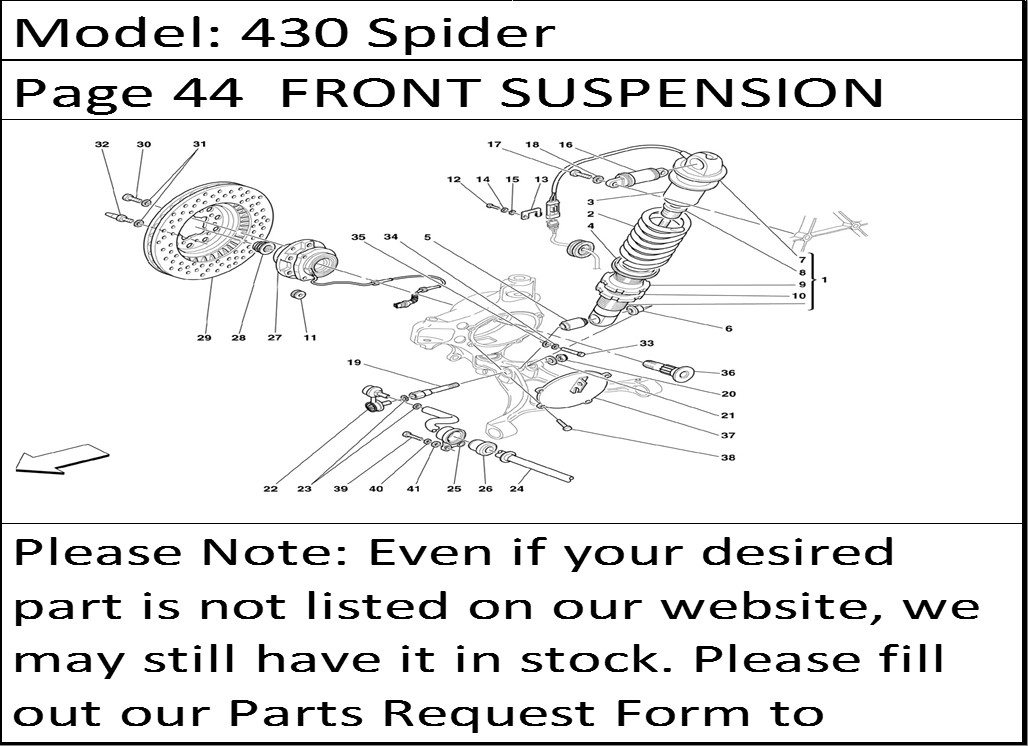

430 Spider Page 44 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC
Product Description
430 Spider Page 44 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 213396 | FRONT SHOCK ABSORBER | 2 |
| 2 | 190676 | SPRING -Not as spare part now- -Replaced by 216381- -Replace both- | 2 |
| 2 | 216381 | SPRING | 2 |
| 3 | 177688 | UPPER SPACER | 2 |
| 4 | 169684 | LOWER SPACER | 2 |
| 5 | 157630 | BALL JOINT | 2 |
| 6 | 193492 | SPACER | 2 |
| 7 | 174727 | SPRING RETAINING UPPER SPACER | 2 |
| 8 | 174728 | SHOCK ABSORBER PAD | 2 |
| 9 | 174725 | SPACER | 2 |
| 10 | 174726 | RING NUT | 2 |
| 11 | 10460287 | RUBBER RING | 2 |
| 12 | 10902024 | SCREW | 2 |
| 13 | 162606 | CLIP | 2 |
| 14 | 127494 | WASHER | 2 |
| 15 | 12643724 | WASHER | 2 |
| 16 | 212948 | SILENTBLOCK | 2 |
| 17 | 11306934 | SCREW | 4 |
| 18 | 160092 | WASHER | 4 |
| 19 | 204977 | SCREW | 2 |
| 20 | 14058721 | NUT | 2 |
| 21 | 155002 | WASHER | 2 |
| 22 | 162620 | R.H. BALL TIE ROD | 1 |
| 22 | 162619 | L.H. BALL TIE ROD | 1 |
| 23 | 160092 | WASHER | 4 |
| 24 | 170715 | FRONT ANTI-ROLL BAR | 1 |
| 25 | 203607 | ANTI-ROLL BAR SUPPORT | 2 |
| 26 | 170588 | BAR BUFFER | 2 |
| 27 | 194134 | HUB COMPLETE BEARING | 2 |
| 28 | 209184 | NUT | 2 |
| 29 | 213484 | FRONT BRAKE DISC -Iron version- | 2 |
| 29 | 240595 | FRONT BRAKE DISC -CCM version- -Valid till Ass. Nr. 64740- -Valid till stock exhaustion- -Replace together- | 2 |
| 29 | 240531 | FRONT BRAKE DISC -CCM version- -Valid from Ass. Nr. 64741 - -Valid after stock exhaustion of 202179- -Replace together- -Not as spare part- -Replaced by 240531 - | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
