Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

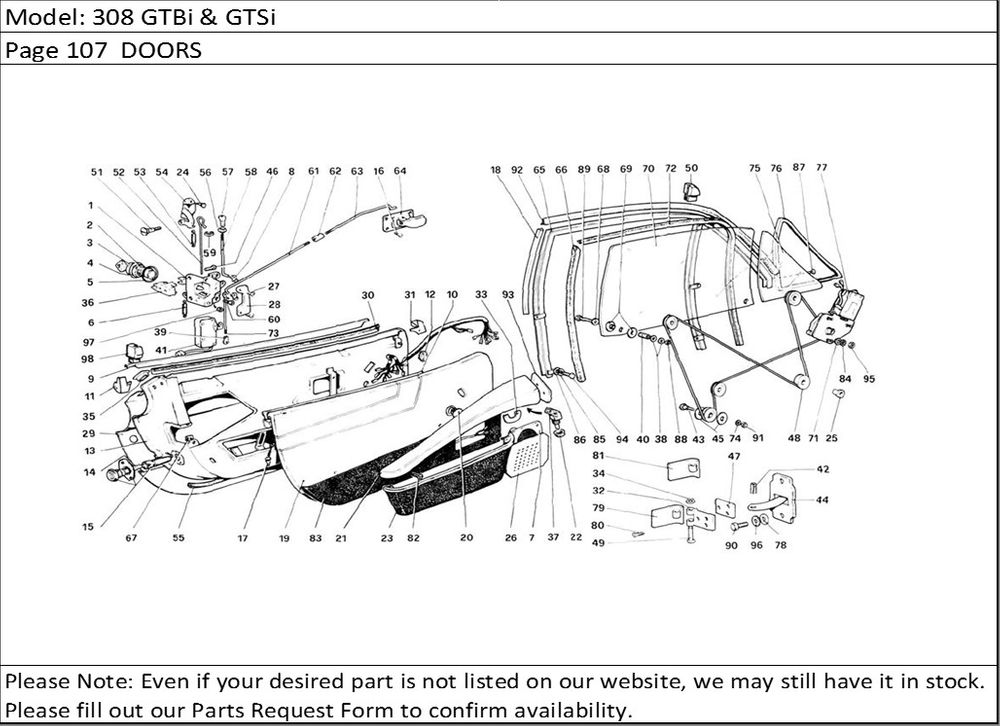

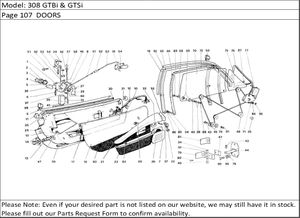

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 20170809 | Serratura porta Dx. . | 1 |
| 1 | 20170908 | Serratura porta Sx. | 1 |
| 2 | 20063202 | Ghiera | 2 |
| 3 | 20035606 | Blocchetto serratura Dx. | 1 |
| 3 | 20035705 | Blocchetto serratura Sx. | 1 |
| 4 | 20035804 | Distanziale | 2 |
| 5 | 20181103 | Guarnizione per blocchetto serratura | 2 |
| 6 | 60046000 | Molla richiamo maniglia | 2 |
| 7 | 60507900 | Altoparlante | 2 |
| 8 | 30016109 | Molletta | 1 |
| 9 | 60508300 | Modanatura porta Sx. GTS | 1 |
| 9 | 60415106 | Modanatura porta Dx. GTB | 1 |
| 9 | 60415205 | Modanatura porta Sx. GTB | 1 |
| 9 | 60508200 | Modanatura porta Dx. QTS | 1 |
| 10 | 60136207 | Guarnizione interna | 2 |
| 11 | 60269305 | Modanatura posteriore Sx. GTB | 1 |
| 11 | 60269206 | Modanatura posteriore Dx. GTB | 1 |
| 11 | 60602000 | Modanatura posteriore Sx. GTS | 1 |
| 11 | 60601900 | Modanatura posteriore Dx. GTS | 1 |
| 12 | 40127409 | Tappo | 3 |
| 13 | 60293206 | Telaio porta Dx. GTB | 1 |
| 13 | 60347804 | Telaio porta Dx. GTS | 1 |
| 13 | 60347903 | Telaio porta Sx. GTS | 1 |
| 13 | 60293305 | Telaio porta Sx. GTB | 1 |
| 14 | 20083309 | Lampada | 2 |
| 15 | 60291200 | Fanale porta aperta | 2 |
| 16 | 15903902 | Vite fiss. maniglia int. apriporta | 2 |
| 17 | 40195703 | Tappo fine corsa cristallo | 4 |
| 18 | 60278405 | Guarnizione (GTB) | 2 |
| 19 | 60746700 | Rivestimento pannello porta Sx. | 1 |
| 19 | 60760900 | Pannello interne porta Dx. GTS | 1 |
| 19 | 60761000 | Pannello interno porta Sx. GTS | 1 |
| 19 | 60763800 | Pannello interne porta Dx. GTB | 1 |
| 19 | 60763900 | Pannello interne porta Sx. GTB | 1 |
| 19 | 60746600 | Rivestimento pannello Dx. | 1 |
| 20 | 30063101 | Tappo | 2 |
| 21 | 60067501 | Rivestimento appoggiabraccia Sx. | 1 |
| 21 | 60760700 | Appoggiabraccia Dx.Per GD vale 60808800 | 1 |
| 21 | 60804700 | Appoggiabraccia Sx.Per GD vale 60760800 | 1 |
| 21 | 60067402 | Rivestimento appoggiabraccia Dx. | 1 |
| 22 | 60730900 | Ghiera fiss. interruttore specchio | 1 |
| 23 | 60753100 | Rivestimento tasca Sx. | 1 |
| 23 | 60803900 | Tasca portaoggetti Sx. | 1 |
| 23 | 60753000 | Rivestimento tasca Dx. | 1 |
| 23 | 60803800 | Tasca portaoggetti Dx. | 1 |
| 24 | 20043808 | Gommino paracolpi GTB | 2 |
| 25 | 60441607 | Boccola | 4 |
| 26 | 60745600 | Modanatura altoparlante Sx. | 1 |
| 26 | 60745500 | Modanatura altoparlante Dx. | 1 |
| 27 | 15908502 | Vite per modanatura serratura | 4 |
| 28 | 60304904 | Modanatura sulla serratura Sx. | 1 |
| 28 | 60304805 | Modanatura sulla serratura Dx. | 1 |
| 29 | 60649300 | Rivestimento esterno porta Sx. GTS | 1 |
| 29 | 60214004 | Rivestimento esterno porta Dx. GTB | 1 |
| 29 | 60214103 | Rivestimento esterno porta Sx. GTB | 1 |
| 29 | 60649200 | Rivestmento esterno porta Dx. GTS | 1 |
| 30 | 60827600 | Guarnizione esterna Sx. | 1 |
| 30 | 60827500 | Guarnizione esterna Dx. | 1 |
| 31 | 60269008 | Modanatura anteriore Dx. GTB | 1 |
| 31 | 60269107 | Modanatura anteriore Sx. GTB | 1 |
| 31 | 60602100 | Modanatura anteriore Dx. GTS | 1 |
| 31 | 60602200 | Modanatura anteriore Sx. GTS | 1 |
| 32 | 60251204 | Cerniera fissa porta | 4 |
| 33 | 60138906 | Modanatura Sx. per maniglia interna | 1 |
| 33 | 60138807 | Modanatura Dx. per maniglia interna | 1 |
| 34 | 11065775 | Seeger | 2 |
| 35 | 60567000 | Guarnizione esterna sede maniglia | 2 |
| 36 | 60606600 | Blocchetto Sx. | 1 |
| 36 | 60606500 | Blocchetto Dx. | 1 |
| 37 | 60730700 | Interruttore comando specchio est. | 1 |
| 38 | 12640601 | Rondella fiss. cavo a cristallo | 8 |
| 39 | 40063208 | Molletta asta sicurezza inferiore | 4 |
| 40 | 60441409 | Distanziale | 4 |
| 41 | 60636800 | Dispositive bloccaggio porta Dx. | 1 |
| 41 | 60636900 | Dispositivo bloccaggio porta Sx. | 1 |
| 42 | 60730200 | Spina per tirante | 2 |
| 43 | 60078805 | Perno per carruccole superior! | 6 |
| 43 | 14141410 | Perno carrucole fisse inferior! GTB | 4 |
| 43 | 10902421 | Perno per carrucole fisse inf. GTS | 4 |
| 44 | 60666800 | Tirante arresto porta | 2 |
| 45 | 12644401 | Rondella | 16 |
| 46 | 60088705 | Vite speciale f issaggio cavo | 2 |
| 47 | 60269404 | Piastra fiss. cerniera fissa | 4 |
| 48 | 60056306 | Carrucola GTB | 10 |
| 48 | 60398007 | Carrucola GTS | 10 |
| 49 | 20074100 | Perno cerniera | 4 |
| 50 | 60265808 | Terminale superiore Dx. GTS | 1 |
| 50 | 60265907 | Terminale superiore Sx. GTS | 1 |
| 51 | 60273901 | Perno | 2 |
| 52 | 60116803 | Cavo per manjglia apriporta | 2 |
| 53 | 20036000 | Molla superiofe richiamo maniglia | 2 |
| 54 | 60271004 | Maniglia apriporta esterna Dx. | 1 |
| 54 | 60271103 | Maniglia apriporta esterna Sx. | 1 |
| 55 | 60159605 | Guarnizione inferiore | 2 |
| 56 | 40162307 | Boccola per asta di sicurezza | 2 |
| 57 | 20170403 | Pomello per asta di sicurezza | 2 |
| 58 | 60059409 | Asta di sicurezza superiore | 2 |
| 59 | 20043709 | Boccola fiss. cavo a maniglia | 2 |
| 60 | 20298303 | Vite fiss. serratura | 8 |
| 61 | 40132706 | Semiasta posteriore | 2 |
| 62 | 60088606 | Manicotto | 2 |
| 63 | 60305208 | Semiasta anteriore | 2 |
| 64 | 60035607 | Maniglia apriporta interna | 2 |
| 65 | 60292208 | Telaino post, per cristallo porta Dx. GTS | 1 |
| 65 | 60263605 | Telaino per cristalli porta Sx. GTB | 1 |
| 65 | 60292000 | Telaino ant. per cristallo porta Dx. GTS | 1 |
| 65 | 60263506 | Telaino per cristallo porta Dx. GTB | 1 |
| 65 | 60292109 | Telaino ant. per cristallo porta Sx. GTS | 1 |
| 65 | 60292307 | Telaino post, per cristallo porta Sx. GTS | 1 |
| 66 | 60302205 | Canalino scorrivetro posteriore GTB | 2 |
| 66 | 60343308 | Canalino scorrivetro posteriore GTS | 2 |
| 67 | 20037008 | Molletta fiss. serratura porta | 8 |
| 68 | 12643701 | Rondella | 4 |
| 69 | 50086909 | Boccola | 8 |
| 70 | 60263803 | Cristallo scendente azzurrato Dx. GTB | 1 |
| 70 | 60263902 | Cristallo scendente azzurrato Sx. GTB | 1 |
| 70 | 60162500 | Cristallo scendente azzurrato Sx. GTS | 1 |
| 70 | 60162401 | Cristallo scendente azzurrato Dx. GTS | 1 |
| 71 | 12638101 | Rondella fiss. motorino alzacristallo | 6 |
| 72 | 60302106 | Canalino scorrivetro ant. GTB | 2 |
| 72 | 60343407 | Canalino scorrivetro ant. GTS | 2 |
| 73 | 60803000 | Asta di sicurezza inferiore | 2 |
| 74 | 10615471 | Rondella | 10 |
| 75 | 60264405 | Cristallo fisso Dx. | 1 |
| 75 | 60264504 | Cristallo fisso Sx. | 1 |
| 76 | 60519100 | Guarnizione cristallo fisso GTS | 2 |
| 76 | 60322500 | Guarnizione cristallo fisso GTB | 2 |
| 77 | 60030509 | Dispositivo alzacristalli | 2 |
| 78 | 12638101 | Rondella tranciata per tirante | 4 |
| 79 | 50031608 | Cerniera mobile inferiore porta | 2 |
| 80 | 50206408 | Vite fiss. cerniera al telaio | 12 |
| 81 | 60265402 | Cerniera mobile superiore porta Dx. | 1 |
| 81 | 60265501 | Cerniera mobile superiore porta Sx. | 1 |
| 82 | 13274818 | Vite fissaggio appoggiabraccia | 1 |
| 83 | 60747100 | Rivestimento inferiore pannello Sx. | 1 |
| 83 | 60747000 | Rivestimento inferiore pannello Dx. | 1 |
| 84 | 10615371 | Rondella elastica fiss. motorino | 6 |
| 85 | 12605371 | Rondella fiss. inferiore telaino | 6 |
| 86 | 12643701 | Rondella fiss. inferiore telaino | 6 |
| 87 | 20286704 | Vite (GTB) fissaggio ant. telainoPer GTS vale n. 6081 5200 | 4 |
| 88 | 13832101 | Dado fissaggio cristallo a cavo | 4 |
| 89 | 60657800 | Vite fissaggio cristallo a cavo | 4 |
| 90 | 10977721 | Vite fissaggio tirante | 4 |
| 91 | 15896211 | Dado | 10 |
| 92 | 60278504 | Guarnizione GTB | 2 |
| 92 | 60343100 | Guarnizione GTS | 2 |
| 93 | 60261807 | Modanatura appoggiabraccia Dx. | 1 |
| 93 | 60261906 | Modanatura appoggiabraccia Sx. | 1 |
| 93 | 60125309 | Rivest. modanatura appoggiabraccia | 2 |
| 94 | 10902221 | Vite fissaggio telaino | 2 |
| 94 | 20030003 | Vite fiss. telaino zona post. inf. | 2 |
| 94 | 10902621 | Vite fiss. telaino zona ant. inf. | 2 |
| 95 | 15896411 | Dado fiss. motorino | 6 |
| 96 | 12035471 | Rondella elastica per tirante | 4 |
| 97 | 12574211 | Dado | 8 |
| 98 | 60266103 | Terminale Sx. GTS | 1 |
| 98 | 60266004 | Terminale Dx. GTS | 1 |
