458 Italia Page 46 EVAPORATOR UNIT
Product Description

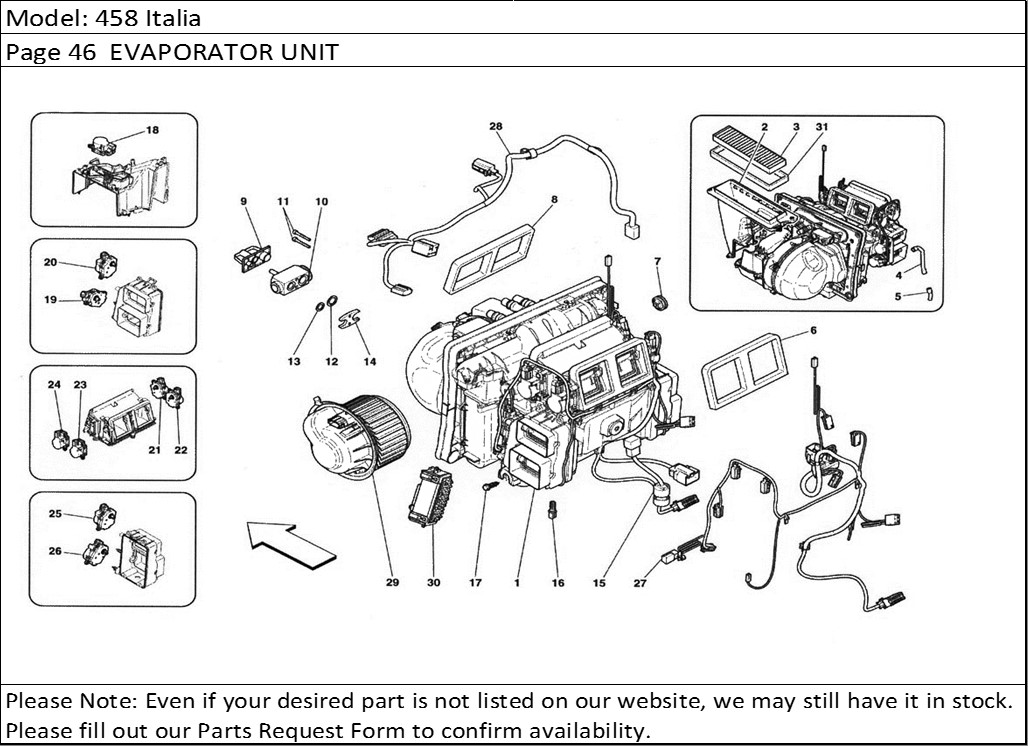

458 Italia Page 46 EVAPORATOR UNIT
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 82797700 | COMPLETE EVAPORATOR -Not for GD- -Applicable until depletion- | 1 |
| 1 | 83346500 | COMPLETE EVAPORATOR -Applicable for GD- -Applicable after depletion of 82797700 not for GD- | 1 |
| 2 | 82761800 | MOBILE DUCT -Not for GD- -No longer supplied- -Replaced by 83594700- | 1 |
| 2 | 83594700 | MOBILE DUCT -Not for GD- | 1 |
| 2 | 82969400 | MOBILE DUCT -Applicable for GD- | 1 |
| 3 | 82295100 | ANTI-POLLEN FILTER | 1 |
| 4 | 83244100 | UPPER DRAIN PIPE -No longer supplied- -Replaced by 83244100- | 1 |
| 4 | 83244100 | UPPER DRAIN PIPE | 1 |
| 5 | 67935700 | LOWER DRAIN PIPE -Not for GD- -No longer supplied- -Replaced by 67935700- | 1 |
| 5 | 67935700 | LOWER DRAIN PIPE -Not for GD- | 1 |
| 5 | 83304600 | LOWER DRAIN PIPE -Applicable for GD- | 1 |
| 6 | 82046800 | FRONT FILLER FOAM | 1 |
| 7 | 68389800 | RUBBER PAD | |
| 8 | 82046600 | DEFROSTER DUCT FILLER FOAM | 1 |
| 9 | 82049600 | COVER | 1 |
| 10 | 82049300 | TXVBLOCK | 1 |
| 11 | 82049500 | SCREW | 2 |
| 12 | 82049100 | O-RING | 1 |
| 13 | 82049200 | O-RING | 1 |
| 14 | 82049400 | PLATE | 1 |
| 15 | 236847 | TEMPERATURE SENSOR -No longer supplied- | 1 |
| 16 | 68390100 | AIR SENSOR | 2 |
| 17 | 68391900 | SCREW | |
| 18 | 264869 | LIN BUS RECIRCULATION ACTUATOR -No longer supplied- -Replaced by 82047200- | 1 |
| 18 | 82047200 | LIN BUS RECIRCULATION ACTUATOR -Not for GD- | 1 |
| 18 | 82048300 | LIN BUS RECIRCULATION ACTUATOR -Applicable for GD- | 1 |
| 19 | 264870 | LIN BUS RH FOOTWELL ACTUATOR -No longer supplied- -Replaced by 82047300- | 1 |
| 19 | 82047300 | LIN BUS RH FOOTWELL ACTUATOR | 1 |
| 20 | 264871 | LIN BUS RH LATERAL ACTUATOR -No longer supplied- -Replaced by 82047400- | 1 |
| 20 | 82047400 | LIN BUS RH LATERAL ACTUATOR | 1 |
| 21 | 264872 | LIN BUS RH DEFROSTER ACTUATOR -No longer supplied- -Replaced by 82047500- | 1 |
| 21 | 82047500 | LIN BUS RH DEFROSTER ACTUATOR | 1 |
| 22 | 264873 | LIN BUS RH FAN ACTUATOR -No longer supplied- -Replaced by 82047600- | 1 |
| 22 | 82047600 | LIN BUS RH FAN ACTUATOR | 1 |
| 23 | 264874 | LIN BUS LH FAN ACTUATOR -No longer supplied- -Replaced by 82047700- | 1 |
| 23 | 82047700 | LIN BUS LH FAN ACTUATOR | 1 |
| 24 | 264875 | LIN BUS LH DEFROSTER ACTUATOR -No longer supplied- -Replaced by 82047900- | 1 |
| 24 | 82047900 | LIN BUS LH DEFROSTER ACTUATOR | 1 |
| 25 | 264876 | LIN BUS LH LATERAL ACTUATOR -No longer supplied- -Replaced by 82048100- | 1 |
| 25 | 82048100 | LIN BUS LH LATERAL ACTUATOR | 1 |
| 26 | 264877 | LIN BUS LH FOOTWELL ACTUATOR -No longer supplied- -Replaced by 82048200- | 1 |
| 26 | 82048200 | LIN BUS LH FOOTWELL ACTUATOR | 1 |
| 27 | 264878 | AC WIRING HARNESS -Passenger compartment side- | 1 |
| 28 | 264879 | AC WIRING HARNESS -Engine side- | 1 |
| 29 | 264880 | FAN | 1 |
| 30 | 264881 | SPEED REGULATOR | 1 |
| 31 | 264882 | DYNAMIC INTAKE FILLER FOAM | 1 |
| 32 | 16287127 | SCREW | 4 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
