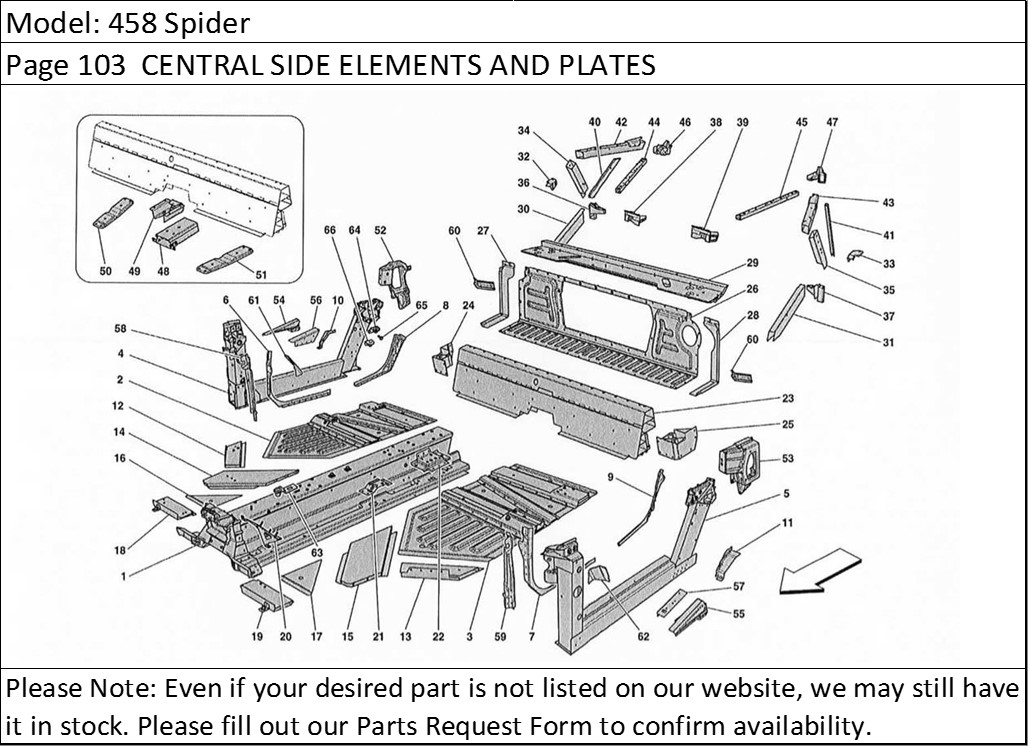

458 Spider Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Product Description
458 Spider Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 275282 | COMPL. TUNNEL -Not available for sale- -Not for RHD- | 1 |
| 1 | 277794 | COMPL. TUNNEL -Not available for sale- -Applicable for RHD- | 1 |
| 2 | 271556 | COMPL. RH HALF FLOOR PANEL -Not available for sale- | 1 |
| 3 | 271555 | COMPL. LH HALF FLOOR PANEL -Not available for sale- | 1 |
| 4 | 285739 | RH SILL -Not available for sale- -Applicable for EU GS | 1 |
| 4 | 285739 | RH SILL -Not available for sale- -Applicable for USA | 1 |
| 4 | 285739 | RH SILL -Not available for sale- -Applicable for USA | 1 |
| 4 | 288642 | RH SILL -Not available for sale- -Applicable for RHD- | 1 |
| 5 | 285740 | LH SILL -Not available for sale- -Not for RHD- | 1 |
| 5 | 288643 | LH SILL -Not available for sale- -Applicable for RHD- | 1 |
| 6 | 82992100 | FRONT RH ENDPIECE | 1 |
| 7 | 82992200 | FRONT LH ENDPIECE | 1 |
| 8 | 83815000 | REAR RH ENDPIECE | 1 |
| 9 | 83814700 | REAR LH ENDPIECE | 1 |
| 10 | 249925 | FRONT FASTENER BRACKET FOR RH FLANK | 1 |
| 11 | 249924 | FRONT FASTENER BRACKET FOR LH FLANK | 1 |
| 12 | 280494 | RH BRACE | 1 |
| 13 | 280493 | LH BRACE -Not for RHD- | 1 |
| 13 | 280497 | LH BRACE -Applicable for RHD- | 1 |
| 14 | 280496 | RH BRACE BETWEEN TORQUE BOX AND TUNNEL -Not for RHD- | 1 |
| 14 | 280525 | RH BRACE BETWEEN TORQUE BOX AND TUNNEL -Applicable for RHD- | 1 |
| 15 | 280495 | LH BRACE BETWEEN TORQUE BOX AND TUNNEL -Not for RHD- | 1 |
| 15 | 280524 | LH BRACE BETWEEN TORQUE BOX AND TUNNEL -Applicable for RHD- | 1 |
| 16 | 248977 | FRONT RH FLOOR ENDPIECE | 1 |
| 17 | 248976 | FRONT LH FLOOR ENDPIECE | 1 |
| 18 | 246743 | FRONT RH CROSS MEMBER | 1 |
| 19 | 246742 | FRONT LH CROSS MEMBER -Not for RHD- | 1 |
| 19 | 263695 | FRONT LH CROSS MEMBER -Applicable for RHD- | 1 |
| 20 | 256175 | ACCELERATOR PEDAL FASTENER BRACKET -Not for RHD- | 1 |
| 20 | 266326 | ACCELERATOR PEDAL FASTENER BRACKET -Applicable for RHD- | 1 |
| 21 | 262866 | LH SEAT GUIDE RAIL FASTENER BRACKET | 1 |
| 21 | 262867 | RH SEAT GUIDE RAIL FASTENER BRACKET | 1 |
| 22 | 281118 | REAR FASTENER BRACKET FOR LH SEAT | 1 |
| 22 | 281117 | REAR FASTENER BRACKET FOR RH SEAT | 1 |
| 23 | 285775 | SILL LINK CROSS MEMBER -Not available for sale- | 1 |
| 24 | 264308 | LOWER RH EXTRUSION | 1 |
| 25 | 264309 | LOWER LH EXTRUSION | 1 |
| 26 | 269483 | REAR FIREWALL -Applicable up to Ass. No. 104675- | 1 |
| 26 | 280928 | REAR FIREWALL -Applicable from Ass. No. 104676- | 1 |
| 27 | 257398 | RH LATERAL MOUNTING FOR FIREWALL | 1 |
| 28 | 257397 | LH LATERAL MOUNTING FOR FIREWALL | 1 |
| 29 | 276525 | FUEL TANK CROSS MEMBER -Not available for sale- | 1 |
| 30 | 256697 | RH LATERAL IMPACT BOX MEMBER | 1 |
| 31 | 256696 | LH LATERAL IMPACT BOX MEMBER | 1 |
| 32 | 254479 | REAR FASTENER BRACKET FOR RH REAR FLANK | 1 |
| 33 | 254478 | REAR FASTENER BRACKET FOR LH REAR FLANK | 1 |
| 34 | 255316 | RH REAR PILLAR BRACE -Not for USA | 1 |
| 34 | 255316 | RH REAR PILLAR BRACE -Applicable for USA | 1 |
| 34 | 255316 | RH REAR PILLAR BRACE -Applicable for USA | 1 |
| 35 | 255315 | LH REAR PILLAR BRACE | 1 |
| 36 | 264431 | RH SUBFRAME LINK EXTRUSION | 1 |
| 37 | 264310 | LH SUBFRAME LINK EXTRUSION | 1 |
| 38 | 271054 | UPPER RH BELT JOINT CASTING | 1 |
| 39 | 271053 | UPPER LH BELT JOINT CASTING | 1 |
| 40 | 255318 | RH SUSPENSION CASTING BRACE | 1 |
| 41 | 255317 | LH SUSPENSION CASTING BRACE | 1 |
| 42 | 269996 | RH UPPER EXTERNAL DIAGONAL BRACE -Not for USA | 1 |
| 42 | 269996 | RH UPPER EXTERNAL DIAGONAL BRACE -Applicable for USA | 1 |
| 42 | 269996 | RH UPPER EXTERNAL DIAGONAL BRACE -Applicable for USA | 1 |
| 43 | 269995 | LH UPPER EXTERNAL DIAGONAL BRACE | 1 |
| 44 | 271958 | RH INTERNAL BOX MEMBER | 1 |
| 45 | 271956 | LH INTERNAL BOX MEMBER | 1 |
| 46 | 264311 | CASTING FOR REAR RH SHOCK TOWER. | 1 |
| 47 | 264312 | CASTING FOR REAR LH SHOCK TOWER. | 1 |
| 48 | 283984 | COMPL. ENGINE BUFFER ASSEMBLY | 1 |
| 49 | 256871 | REAR SHELF MOUNTING PLATE | 1 |
| 50 | 255255 | RH FUEL PIPE GUARD PLATE | 1 |
| 51 | 255252 | LH FUEL PIPE GUARD PLATE | 1 |
| 52 | 81992500 | COMPL. RH LATERAL IMPACT REINFORCEMENT-Not available for sale- | 1 |
| 53 | 81992600 | COMPL. LH LATERAL IMPACT REINFORCEMENT-Not available for sale- | 1 |
| 54 | 270985 | EXTERNAL RH TRUSS | 1 |
| 55 | 270984 | EXTERNAL LH TRUSS | 1 |
| 56 | 271425 | INTERNAL RH TRUSS -Not for RHD- | 1 |
| 56 | 274086 | INTERNAL RH TRUSS -Applicable for RHD- | 1 |
| 57 | 271422 | INTERNAL LH TRUSS -Not for RHD- | 1 |
| 57 | 274085 | INTERNAL LH TRUSS -Applicable for RHD- | 1 |
| 58 | 83816100 | A PILLAR FLANGE | 1 |
| 59 | 83816300 | A PILLAR FLANGE | 1 |
| 60 | 82677800 | BRACKET | 2 |
| 61 | 268144 | RH LATERAL INTERNAL FILLER PLATE | 1 |
| 62 | 268143 | LH LATERAL INTERNAL FILLER PLATE | 1 |
| 63 | 84682900 | ACCELEROMETER FASTENER BRACKET | 1 |
| 64 | 84717500 | RH FASTENER BRACKET -Applicable for USA | 1 |
| 64 | 84717400 | LH FASTENER BRACKET -Applicable for USA | 1 |
| 65 | 16285127 | SCREW -M5 X 16- -Applicable for USA | 4 |
| 66 | 285699 | ACCELEROMETER MOUNTING BRACKET -Applicable from Ass. No. 106205- | 2 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
