458 Spider Page 104 FRAME REAR ELEMENTS STRUCTURES AND PLATES
Product Description
458 Spider Page 104 FRAME REAR ELEMENTS STRUCTURES AND PLATES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

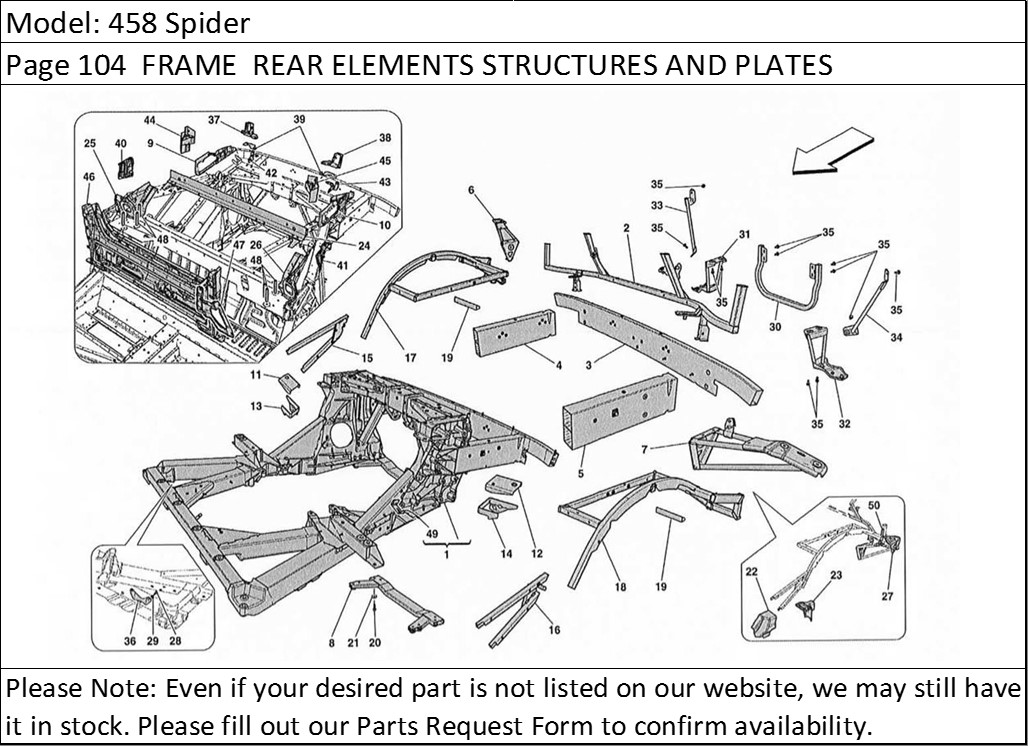

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 985285794 | REAR SUBFRAME -Not available for sale- -Not for USA | 1 |
| 1 | 985280310 | REAR SUBFRAME -Not available for sale- -Applicable for USA | 1 |
| 2 | 82993500 | UPPER REAR TRELLIS | 1 |
| 3 | 271420 | REAR BUMPER FASTENING CROSS MEMBER -Not available for sale | 1 |
| 4 | 271357 | REAR RH STRUT -Not available for sale- | 1 |
| 5 | 271356 | REAR LH STRUT -Not available for sale- | 1 |
| 6 | 84041200 | RH FLANK MOUNTING BRACKET -Not available for sale- | 1 |
| 7 | 84041800 | LH FLANK MOUNTING BRACKET -Not available for sale- | 1 |
| 8 | 270599 | LOWER GEARBOX MOUNTING CROSS MEMBER | 1 |
| 9 | 83189900 | RH REAR MOUNTING BRACKET | 1 |
| 10 | 83190200 | LH REAR MOUNTING BRACKET | 1 |
| 11 | 82572600 | UPPER RH TRELLIS MOUNTING BRACKET | 1 |
| 12 | 82572700 | UPPER LH TRELLIS MOUNTING BRACKET | 1 |
| 13 | 260696 | LOWER RH TRELLIS MOUNTING BRACKET | 1 |
| 14 | 260695 | LOWER LH TRELLIS MOUNTING BRACKET | 1 |
| 15 | 84042200 | FRONT RH FLANK TRELLIS | 1 |
| 16 | 84042600 | FRONT LH FLANK TRELLIS | 1 |
| 17 | 83484200 | REARRH FLANK TRELLIS | 1 |
| 18 | 83489700 | REAR LH FLANK TRELLIS | 1 |
| 19 | 81952000 | ANGULAR BRACE FOR FLANK MOUNTING BRACKET | 2 |
| 20 | 14308234 | SCREW | 10 |
| 21 | 12626024 | WASHER | 10 |
| 22 | 81288800 | FRONT LOWER BRACKET FOR LH FENDER | 1 |
| 22 | 81287800 | FRONT LOWER BRACKET FOR RH FENDER | 1 |
| 23 | 81518200 | REAR LOWER BRACKET FOR LH FENDER | 1 |
| 23 | 81518100 | REAR LOWER BRACKET FOR RH FENDER | 1 |
| 24 | 82149000 | REAR ROOF TUB CROSS-MEMBER | 1 |
| 25 | 83229400 | RH FRONT ROOF TUB BRACKET | 1 |
| 26 | 83229500 | LH FRONT ROOF TUB BRACKET | 1 |
| 27 | 81582700 | LH REAR FLANK BRACKET | 1 |
| 27 | 81582600 | RH REAR FLANK BRACKET | 1 |
| 28 | 269959 | SCREW | 4 |
| 29 | 12647778 | WASHER | 4 |
| 30 | 82629200 | COMPL. CENTRE REAR TRELLIS | 1 |
| 31 | 84043900 | COMPL. RH BUMPER MOUNTING TRELLIS | 1 |
| 32 | 84044400 | COMPL. LH BUMPER MOUNTING TRELLIS | 1 |
| 33 | 84043000 | COMPL. RH BUMPER MOUNTING BRACKET | 1 |
| 34 | 84043400 | COMPL. LH BUMPER MOUNTING BRACKET | 1 |
| 35 | 11625824 | SCREW | 12 |
| 36 | 268207 | PLATE | 2 |
| 37 | 83330300 | RH LID BUFFER BRACKET | 1 |
| 38 | 83458500 | LH LID BUFFER BRACKET | 1 |
| 39 | 83458600 | SPACER FOR BUFFER BRACKET | 2 |
| 40 | 83499100 | MOUNTING BRACKET FOR RH FLANK LATERAL SHIELD | 1 |
| 41 | 83499300 | MOUNTING BRACKET FOR LH FLANK LATERAL SHIELD | 1 |
| 42 | 84249300 | RH BUFFER CONNECTOR BRACKET | 1 |
| 43 | 84249500 | LH BUFFER CONNECTOR BRACKET | 1 |
| 44 | 83739000 | RH VERTICAL EXTRUDED ELEMENT | 1 |
| 45 | 83739100 | LH VERTICAL EXTRUDED ELEMENT | 1 |
| 46 | 82140800 | TUB FOR POWERED REAR SCREEN | 1 |
| 47 | 83959100 | LH PILLAR CONNECTOR REINFORCEMENT | 1 |
| 47 | 83959000 | RH PILLAR CONNECTOR REINFORCEMENT | 1 |
| 48 | 13791321 | SCREW | 6 |
| 49 | 256195 | LH BRACKET | 1 |
| 49 | 256197 | RH BRACKET | 1 |
| 50 | 82626400 | LH LATERAL REAR BRACKET | 1 |
| 50 | 82626300 | RH LATERAL REAR BRACKET | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
