Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

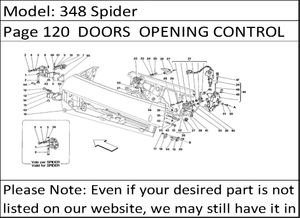

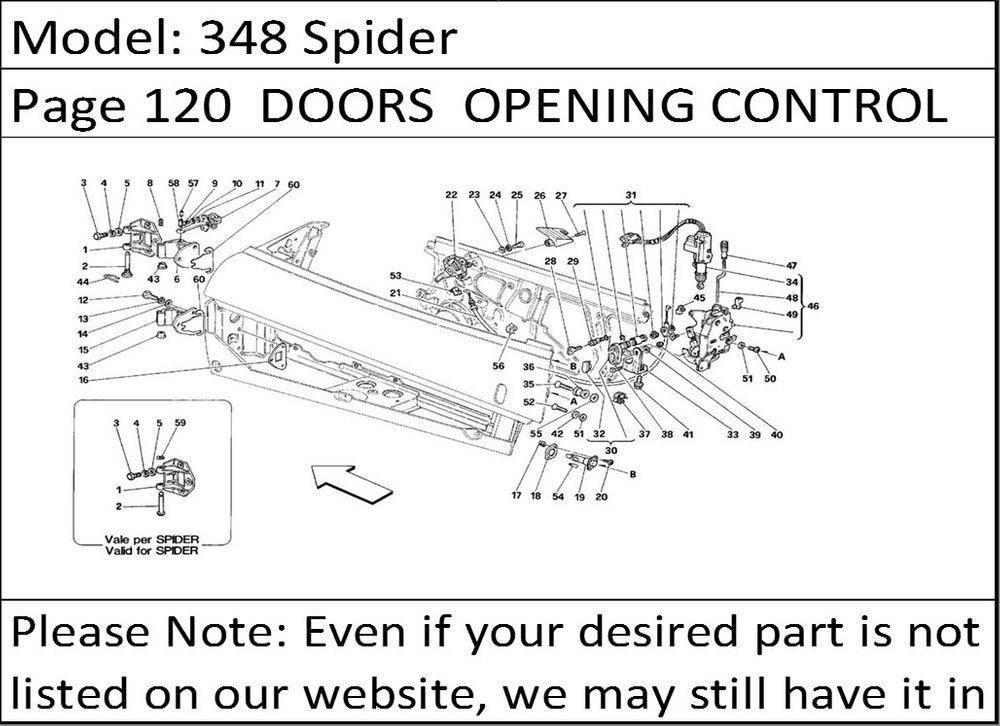

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 64829800 | FIXED HINGE-Not for Spider | 4 |
| 1 | 63396000 | FIXED HINGE-Valid for Spider | 4 |
| 2 | 63345300 | PIN-Valid for Spider | 4 |
| 2 | 62054100 | PIN-Not for Spider | 4 |
| 3 | 16135921 | SCREW | 12 |
| 4 | 127496 | WASHER | 12 |
| 5 | 10519624 | WASHER | 12 |
| 6 | 62063500 | UPPER MOBILE HINGE-Not for Spider-Valid till car Ass. Nr. 15171 | 2 |
| 6 | 63972500 | UPPER MOBILE HINGE-Not for Spider-Valid from car Ass. Nr. 15172 | 2 |
| 6 | 63396100 | UPPER MOBILE HINGE-Valid for Spider-Valid till car Ass. Nr. 15171 | 2 |
| 6 | 63972400 | UPPER MOBILE HINGE-Valid for Spider-Valid from car Ass. Nr. 15172 | 2 |
| 7 | 63942000 | TIE ROD FOR DOOR STOP-Valid from car Ass. Nr. 15172 | 2 |
| 8 | 65859300 | PIN-Valid till car Ass. Nr. 15171 | 2 |
| 9 | 16134321 | SCREW-Valid till car Ass. Nr. 15171 | 4 |
| 9 | 63942300 | SCREW-Valid from car Ass. Nr. 15172 | 4 |
| 10 | 127494 | WASHER-Valid from car Ass. Nr. 15172 | 4 |
| 10 | 127493 | WASHER-Valid till car Ass. Nr. 15171 | 4 |
| 11 | 12644424 | WASHER-Valid from car Ass. Nr. 15172 | 4 |
| 11 | 12638124 | WASHER-Valid till car Ass. Nr. 15171 | 4 |
| 12 | 16135921 | SCREW | 12 |
| 13 | 127496 | WASHER | 12 |
| 14 | 10519624 | WASHER | 12 |
| 15 | 62172600 | LOWER MOBILE HINGE-Not for Spider | 2 |
| 15 | 63396200 | LOWER MOBILE HINGE-Valid for Spider | 2 |
| 16 | 62101100 | PLATE FOR MOVABLE HINGE | 4 |
| 17 | 14115580 | BLOCK | 4 |
| 18 | 140576 | GASKET | 2 |
| 19 | 60788100 | OPENING DOOR LAMP | 2 |
| 20 | 15901470 | SCREW | 4 |
| 21 | 64314100 | DOOR OPENING CABLE | 2 |
| 22 | 62584400 | L.H. INNER DEVICE FOR DOOR OPENING | 1 |
| 22 | 62171600 | R.H. INNER DEVICE FOR DOOR OPENING | 1 |
| 23 | 60711900 | WASHER | 6 |
| 24 | 149951 | WASHER | 6 |
| 25 | 14071911 | SCREW | 6 |
| 26 | 62158500 | L.H. INNER HANDLE FOR DOOR OPENING | 1 |
| 26 | 62158400 | R.H. INNER HANDLE FOR DOOR OPENING | 1 |
| 27 | 13309211 | SCREW | 2 |
| 28 | 95401152 | BLANK KEY | |
| 30 | 62108810 | BODY COMPLETE WITH L.H. DOOR OPENING PUSH BUTTON | 1 |
| 30 | 62108710 | BODY COMPLETE WITH R.H. DOOR OPENING PUSH BUTTON | 1 |
| 31 | 70000655 | KIT FOR L.H. PUSH BUTTON | 1 |
| 31 | 70000654 | KIT FOR R.H. PUSH BUTTON | 1 |
| 32 | 62584200 | DOOR OPENING PUSH BUTTON | 2 |
| 33 | 62171000 | BRACKET FOR PUSH BUTTON FASTENING-Not for USA, CDN, AUS and SA | 2 |
| 33 | 62194500 | BRACKET FOR PUSH BUTTON FASTENING-Valid for USA, CDN, AUS and SA | 2 |
| 34 | 62832300 | DOORS LOCKING/RELEASING ACTUATOR | 1 |
| 35 | 62858700 | SCREW | 2 |
| 36 | 63364100 | STRIKER | 2 |
| 37 | 61130600 | CLIP | 8 |
| 38 | 62171200 | SCREW | 4 |
| 39 | 12646601 | WASHER | 4 |
| 40 | 102948 | NUT | 4 |
| 41 | 13836371 | SCREW | 4 |
| 42 | 12647777 | WASHER | 2 |
| 43 | 62825300 | BUSHING | 8 |
| 44 | 62116700 | CLIP-Not for Spider | 4 |
| 45 | 40063208 | CABLE RETAIN CLIP | 2 |
| 46 | 62109400 | L.H. DOOR LOCK-Not for Spider | 1 |
| 46 | 62109300 | R.H. DOOR LOCK-Not for Spider | 1 |
| 46 | 64685200 | R.H. DOOR LOCK-Valid for Spider | 1 |
| 46 | 64685300 | L.H. DOOR LOCK-Valid for Spider | 1 |
| 47 | 62800900 | KNOB FOR SAFETY ROD | 2 |
| 48 | 62109200 | SAFETY LOCK ROD FOR L.H. DOOR-Not for Spider | 1 |
| 48 | 62109100 | SAFETY LOCK ROD FOR R.H. DOOR-Not for Spider | 1 |
| 48 | 63617700 | SAFETY LOCK ROD FOR L.H. DOOR-Valid for Spider | 1 |
| 48 | 63617600 | SAFETY LOCK ROD FOR R.H. DOOR-Valid for Spider | 1 |
| 49 | 63695300 | ROD CLIP-Valid for Spider | 2 |
| 49 | 63280600 | ROD CLIP-Not for Spider | 2 |
| 50 | 62941000 | SCREW | 6 |
| 51 | 63314400 | WASHER | 8 |
| 52 | 62940900 | SCREW | 2 |
| 53 | 63291200 | CABLE RETAIN CLIP | 2 |
| 54 | 101525 | 12V-3W BULB | 2 |
| 55 | 63285300 | WASHER | 2 |
| 56 | 14569480 | CLIP | 4 |
| 57 | 63942200 | INNER PIN-Valid from car Ass. Nr. 15172 | 2 |
| 58 | 63942100 | OUTER PIN-Valid from car Ass. Nr. 15172 | 2 |
| 59 | 11087974 | FLEXIBLE RING-Valid for Spider | 4 |
| 60 | 63963300 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1 | 4 |
| 60 | 63618700 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 0,5 | 4 |
| 60 | 63617500 | SHIM FOR UPPER AND LOWER MOBILE HINGE-Thickness mm 1,5 | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
