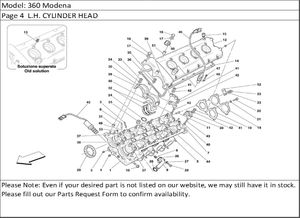

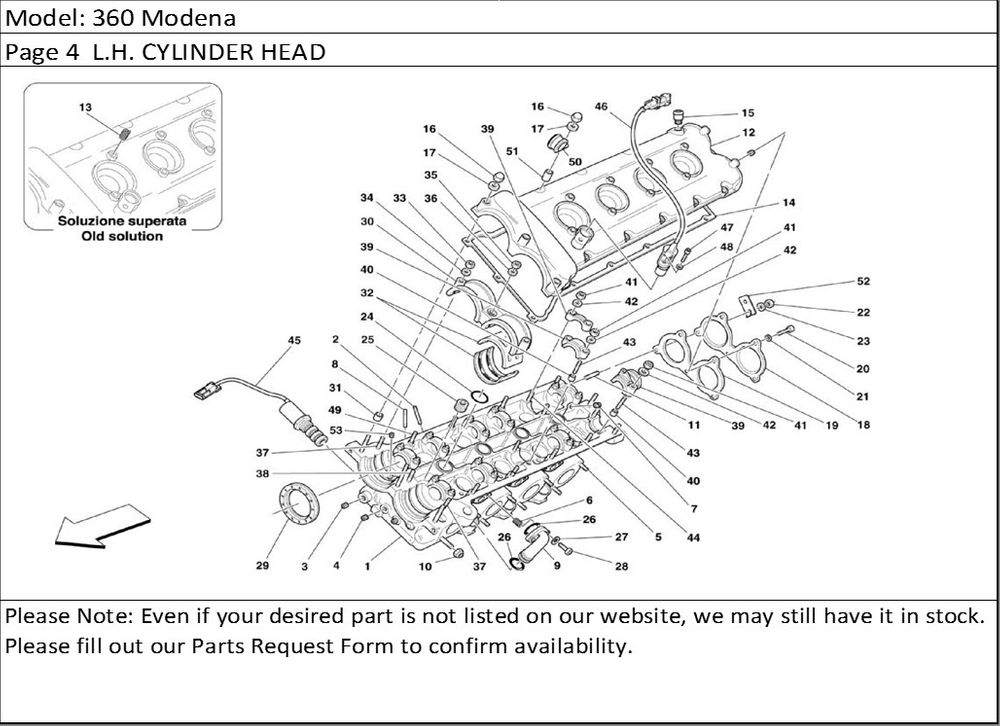

360 Modena Page 4 L.H. CYLINDER HEAD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 212393 | COMPLETE R.H. CYLINDERS HEAD -Valid from engine Nr. 78049 | 1 |
| 1 | 198760 | R.H. HEAD -Not as spare part -With the complete cylinders head 212393 -Valid from engine Nr.78 | 1 |
| 1 | 179306 | R.H. HEAD -Not as spare part -With the complete cylinders head 180706 -Valid till engine Nr.78 | 1 |
| 2 | 13541224 | STUD | 8 |
| 3 | 14326101 | THREADED PLUG | 9 |
| 4 | 14326001 | THREADED PLUG | 2 |
| 5 | 13543324 | STUD | 8 |
| 6 | 13525270 | THREADED INSERT -Not as spare part -Replaced by 13525170 | 6 |
| 6 | 13525170 | THREADED INSERT | 6 |
| 7 | 141563 | THREADED PLUG | 2 |
| 8 | 11500224 | STUD | 8 |
| 9 | 151485 | OIL EXHAUST DUCTING | 3 |
| 10 | 138392 | NUT | 8 |
| 11 | 13541024 | STUD | 3 |
| 12 | 176479 | L.H. CYLINDERS HEAD COVER -Not as spare part -With the complete cylinders head 180706 | 1 |
| 13 | 13525470 | THREADED INSERT | 8 |
| 14 | 173541 | GASKET | 1 |
| 15 | 173985 | UNION | 1 |
| 16 | 100044 | NUT | 13 |
| 17 | 12604274 | WASHER | 13 |
| 18 | 177019 | REAR SMALL COVER | 1 |
| 19 | 177055 | COVER GASKET | 1 |
| 20 | 14433124 | SCREW -Not as spare part -Replaced by 14432224 | 2 |
| 20 | 14432224 | SCREW | 2 |
| 21 | 12604274 | WASHER | 2 |
| 22 | 102741 | NUT | 3 |
| 23 | 12601274 | WASHER | 3 |
| 24 | 167135 | O.R. GASKET | 4 |
| 25 | 127635 | THREADED PLUG | 5 |
| 26 | 147278 | O.R. GASKET | 6 |
| 27 | 12601174 | WASHER | 6 |
| 28 | 14304224 | SCREW -Not as spare part -Replaced by 212538 | 6 |
| 28 | 212538 | SCREW | 6 |
| 29 | 187140 | SEAL RING | 2 |
| 30 | 173784 | FRONT SUPPORT -Not as spare part -With the complete cylinders head 180706 | 1 |
| 31 | 102725 | CENTERING DOWEL | 2 |
| 32 | 182694 | HALF BEARING -Valid after stock exhaustion of 176174 | 4 |
| 33 | 15896214 | NUT | 2 |
| 34 | 11197771 | WASHER | 2 |
| 35 | 16100814 | NUT | 1 |
| 36 | 11193874 | WASHER | 1 |
| 37 | 13541724 | STUD | 2 |
| 38 | 13543424 | STUD | 1 |
| 40 | 102725 | CENTERING DOWEL | 22 |
| 41 | 15896214 | NUT | 22 |
| 42 | 11197771 | WASHER | 22 |
| 43 | 13541424 | STUD -Not as spare part -Replaced by 13541321 | 14 |
| 43 | 13541324 | STUD | 14 |
| 44 | 13541324 | STUD FOR INTAKE SIDE INTERMEDIATE CAP | 8 |
| 45 | 195086 | VARIATOR CONTROL SOLENOID VALVE | 1 |
| 46 | 177673 | PHASE SENSOR | 1 |
| 47 | 14305724 | SCREW | 1 |
| 48 | 12601274 | WASHER | 1 |
| 49 | 13541624 | STUD | 1 |
| 49 | 13541824 | STUD | 1 |
| 49 | 11500624 | STUD | 1 |
| 49 | 13541124 | STUD | 5 |
| 49 | 13541324 | STUD -Q.ty 2 from Ass. Nr. 36124 | 3 |
| 49 | 13541724 | STUD -Q.ty 2 from Ass. Nr. 36124 | 1 |
| 49 | 13542024 | STUD | 1 |
| 50 | 10441890 | BRACKET WITH SHEATH | 1 |
| 51 | 184483 | SPACER | 1 |
| 52 | 178316 | BRACKET | 1 |
| 53 | 198823 | THREADED PLUG -Valid from engine Nr. 78049 | 2 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 64529600 | SPACER | 8 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -For cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -For cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -For cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -For cars with headlights washer | 2 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -For cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -For cars with headlights washer | 6 |
| 24 | 65896700 | L.H. SUPPORT -For cars with headlights washer | 1 |
| 24 | 65896600 | R.H. SUPPORT -For cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -For cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -For cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -For cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -For cars with headlights washer | 4 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 16043934 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 40 | 14190190 | NUT WITH CAGE | 2 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 42 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 43 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 44 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 45 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 5 | 67465400 | Description not available | |
| 5 | 67465405 | Description not available | |
| 5 | 67465427 | Description not available | |
| 5 | 67465431 | Description not available | |
| 5 | 67465505 | Description not available | |
