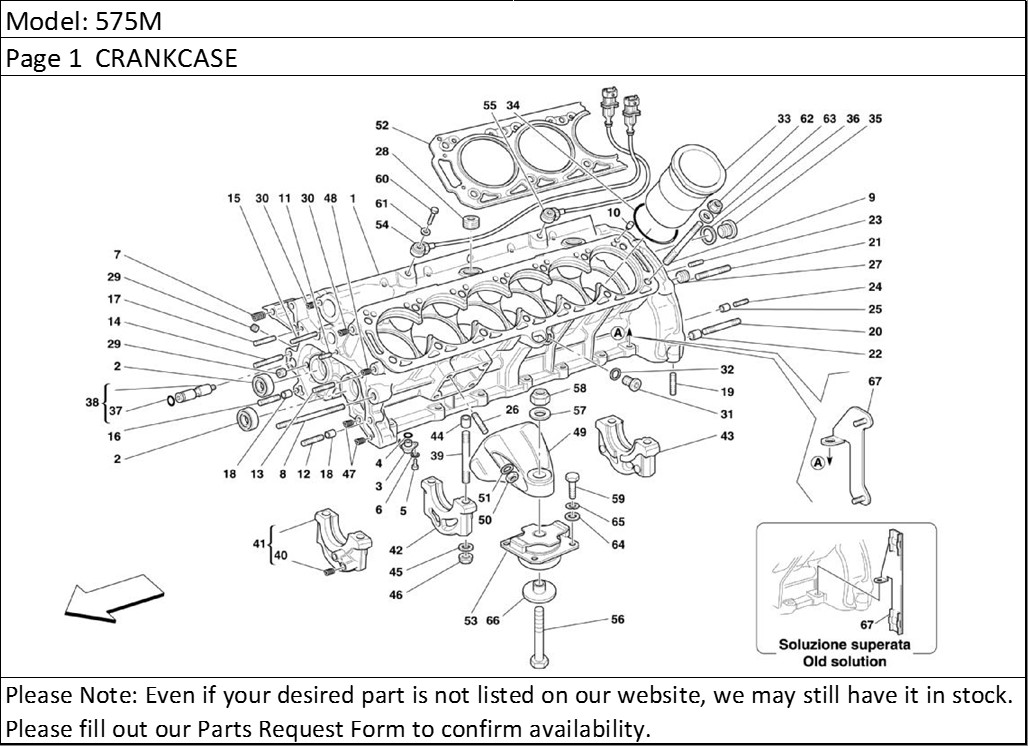

575M Page 1 CRANKCASE
Product Description
575M Page 1 CRANKCASE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 194382 | COMPLETE CRANKCASE | 1 |
| 1 | 185310 | ENGINE BASE-PLATE -With the complete crankcase | 1 |
| 2 | 171177 | BEARING | 2 |
| 3 | 170749 | PISTONS COOLING NOZZLE | 12 |
| 4 | 143856 | O.R. GASKET | 12 |
| 5 | 14303021 | SCREW | 12 |
| 6 | 12601074 | WASHER | 12 |
| 7 | 13526170 | THREADED INSERT | 3 |
| 8 | 13972234 | STUD | 1 |
| 9 | 140591 | STUD | 28 |
| 10 | 163121 | DOWEL | 4 |
| 11 | 13541224 | STUD | 1 |
| 12 | 13543924 | STUD | 1 |
| 13 | 13543524 | STUD | 1 |
| 14 | 13541924 | STUD | 1 |
| 15 | 13541724 | STUD | 1 |
| 16 | 13543424 | STUD | 1 |
| 17 | 13543824 | STUD | 1 |
| 18 | 100041 | DOWEL | 2 |
| 19 | 13517224 | STUD | 2 |
| 20 | 13543924 | STUD | 2 |
| 21 | 13543824 | STUD | 3 |
| 22 | 102704 | DOWEL | 2 |
| 23 | 13541024 | STUD | 2 |
| 24 | 13541224 | STUD | 2 |
| 25 | 103038 | DOWEL | 2 |
| 26 | 13546524 | STUD | 8 |
| 27 | 10268450 | THREADED PLUG | 2 |
| 28 | 14325540 | THREADED PLUG | 2 |
| 29 | 10275550 | THREADED PLUG | 3 |
| 30 | 13525870 | THREADED INSERT | 2 |
| 31 | 200988 | THREADED PLUG | 2 |
| 31 | 150731 | THREADED PLUG -Not as spare part -Replaced by 200988 | 2 |
| 32 | 10280060 | GASKET | 2 |
| 33 | 180387 | CYLINDER LINER | 12 |
| 34 | 140321 | GASKET | 12 |
| 35 | 10304640 | THREADED PLUG | 1 |
| 36 | 10264560 | GASKET | 1 |
| 37 | 134232 | O.R. GASKET | 1 |
| 38 | 151160 | OIL PRESSURE RELIEF VALVE | 1 |
| 39 | 180263 | STUD | 14 |
| 40 | 13525770 | THREADED INSERT | 2 |
| 41 | 185302 | FRONT CAP -With complete crankcase | 1 |
| 42 | 185303 | INTERMEDIATE CAP -With complete crankcase | 5 |
| 43 | 185304 | REAR CAP -With complete crankcase | 1 |
| 44 | 125317 | DOWEL | 14 |
| 45 | 103842 | WASHER | 14 |
| 46 | 6103841 | NUT | 14 |
| 47 | 13525570 | THREADED INSERT | 2 |
| 48 | 13525570 | THREADED INSERT | 1 |
| 49 | 141892 | ENGINE FIXING SUPPORT | 2 |
| 50 | 133988 | NUT | 8 |
| 51 | 11190574 | WASHER | 8 |
| 52 | 185558 | GASKET | 2 |
| 53 | 192022 | WICK BODY | 2 |
| 54 | 181809 | SENSOR FOR FIRING -L=650 | 2 |
| 55 | 182266 | SENSOR FOR FIRING -L=400 | 2 |
| 56 | 15981634 | SCREW | 2 |
| 57 | 12601774 | WASHER | 2 |
| 58 | 176573 | NUT | 2 |
| 59 | 15970634 | SCREW | 8 |
| 60 | 16043834 | SCREW | 4 |
| 61 | 11198074 | WASHER | 4 |
| 62 | 140664 | NUT | 28 |
| 63 | 140603 | WASHER | 28 |
| 64 | 14496624 | WASHER | 8 |
| 65 | 127497 | WASHER | 8 |
| 66 | 182141 | WASHER | 2 |
| 67 | 212777 | INJECTION CABLE SSUPPORTING BRACKET | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
