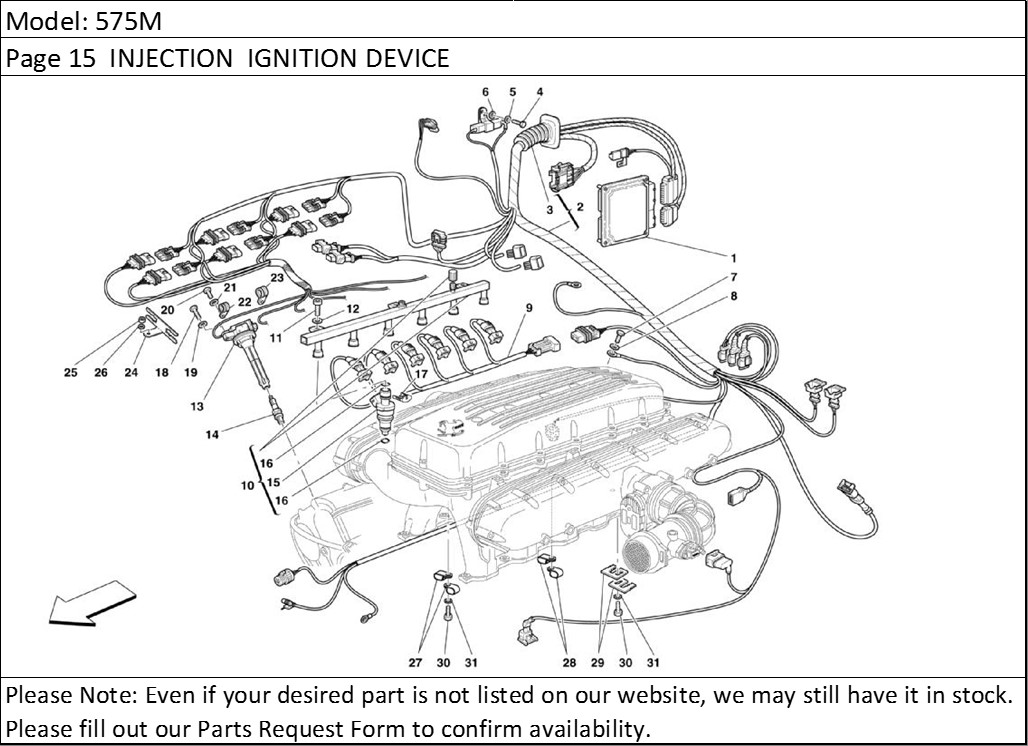

575M Page 15 INJECTION IGNITION DEVICE
Product Description
575M Page 15 INJECTION IGNITION DEVICE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 211503 | CONTROL UNIT IGNITION -Not for F1 -Not for USA and CDN -Valid from Ass. Nr. 55769 | 2 |
| 1 | 181165 | CONTROL UNIT IGNITION -Not for F1 -Valid till Ass. Nr. 49202 -Not as spare part -Replaced by 198456 | 2 |
| 1 | 198455 | CONTROL UNIT IGNITION -Valid for F1 -Valid till Ass. Nr. 53133 -Valid from Ass. Nr. 49203 till Ass. Nr. 52555 | 2 |
| 1 | 211504 | CONTROL UNIT IGNITION -Valid for F1 -Not for USA and CDN -Valid from Ass. Nr. 55769 | 2 |
| 1 | 211422 | CONTROL UNIT IGNITION -Not for F1 -Valid for USA and CDN -Valid from Ass. Nr. 55769 | 2 |
| 1 | 211423 | CONTROL UNIT IGNITION -Valid for F1 -Valid for USA and CDN -Valid from Ass. Nr. 55769 | 2 |
| 1 | 202756 | CONTROL UNIT IGNITION -Not for F1 -Valid from Ass. Nr. 52556 -Valid till Ass. Nr.55768 | 2 |
| 1 | 198456 | CONTROL UNIT IGNITION -Not for F1 -Valid from Ass. Nr. 49203 till Ass. Nr. 52555 | 2 |
| 1 | 202757 | CONTROL UNIT IGNITION -Valid for F1 -Valid from Ass. Nr. 52556 -Valid till Ass. Nr.55768 | 2 |
| 2 | 196496 | R.H. SIDE ENGINE CONNECTING CABLES -Valid for GD -Valid from engine Nr. 72331 | 1 |
| 2 | 187765 | L.H. SIDE ENGINE CONNECTING CABLES -Not for GD | 1 |
| 2 | 189489 | R.H. SIDE ENGINE CONNECTING CABLES -Valid for GD -Valid till engine Nr. 72330 | 1 |
| 2 | 187764 | R.H. SIDE ENGINE CONNECTING CABLES -Not for GD -Valid till engine Nr. 72330 | 1 |
| 2 | 196495 | R.H. SIDE ENGINE CONNECTING CABLES -Not for GD -Valid from engine Nr. 72331 | 1 |
| 2 | 189490 | L.H. SIDE ENGINE CONNECTING CABLES -Valid for GD | 1 |
| 3 | 183318 | RUBBER BOOT | 2 |
| 4 | 10902124 | SCREW | 2 |
| 5 | 127494 | WASHER | 2 |
| 6 | 12643724 | WASHER | 2 |
| 7 | 10902024 | SCREW | 2 |
| 8 | 127494 | WASHER | 2 |
| 9 | 182192 | INJECTORS CONNECTING CABLES | 2 |
| 10 | 180563 | PIPE FOR INJECTORS | 2 |
| 11 | 14306224 | SCREW | 6 |
| 12 | 12601374 | WASHER | 6 |
| 13 | 186914 | IGNITION COIL | 12 |
| 14 | DCPR9EIX | SPARK PLUG | 12 |
| 15 | 180552 | ELECTRO-INJECTOR | 12 |
| 16 | 133902 | O.R. GASKET | 24 |
| 17 | 144730 | INJECTORS RETAINING CLIP | 12 |
| 18 | 10902534 | SCREW -Valid till engine Nr. 79585 | 24 |
| 18 | 14432224 | SCREW -Valid from engine Nr. 79586 | 24 |
| 19 | 12601274 | WASHER | 24 |
| 20 | 10979434 | SCREW | 10 |
| 21 | 12601274 | WASHER | 10 |
| 22 | 10441190 | BRACKET WITH SHEATH | 4 |
| 23 | 10441390 | BRACKET WITH SHEATH | 6 |
| 24 | 188586 | CONNECTOR FIXING BRACKET | 6 |
| 25 | 102741 | NUT | 6 |
| 26 | 10519424 | WASHER | 6 |
| 27 | 10441290 | BRACKET | 2 |
| 28 | 10441490 | BRACKET | 2 |
| 29 | 156198 | CLIP | 2 |
| 30 | 10902024 | SCREW | 3 |
| 31 | 127494 | WASHER | 3 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
