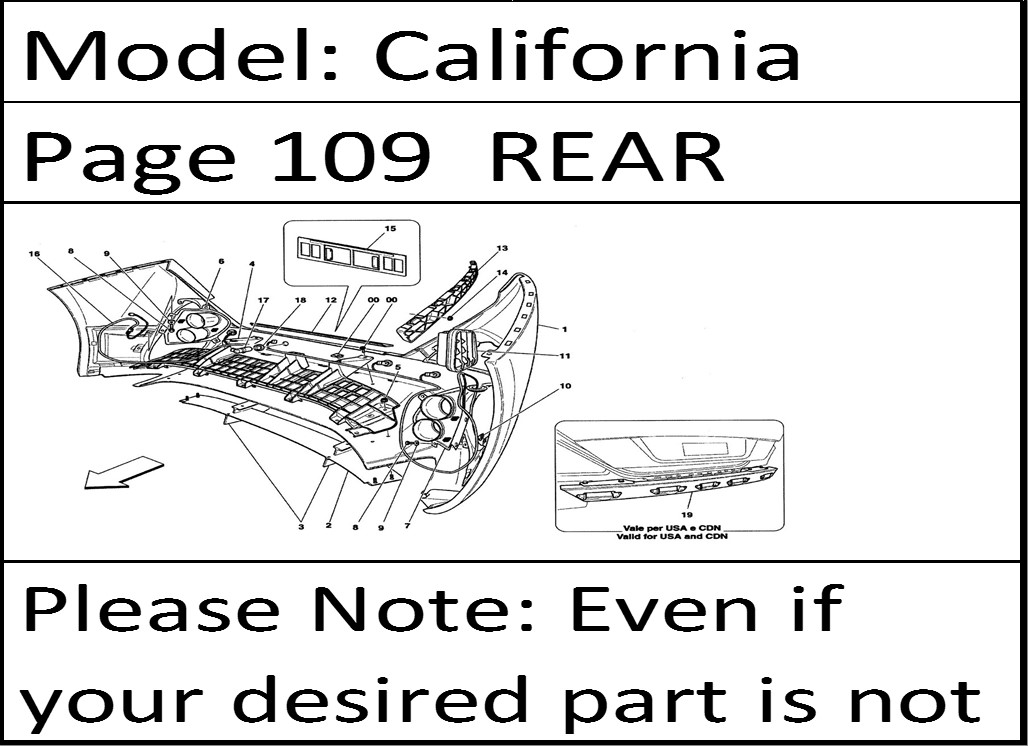

California Page 109 REAR BUMPER
Product Description
California Page 109 REAR BUMPER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 81961910 | COMPLETE REAR BUMPER -Not for USA and CDN- | 1 |
| 1 | 82433510 | COMPLETE REAR BUMPER -Valid for USA and CDN- | 1 |
| 2 | 81013900 | REAR BUMPER SPOILER | 1 |
| 3 | 81014000 | FIN | 2 |
| 4 | 81013800 | REAR BUMPER REINFORCEMENT | 1 |
| 5 | 13046114 | NUT | 4 |
| 6 | 80666800 | R.H. REAR EXHAUST TERMINAL GRILL | 1 |
| 7 | 80666700 | L.H. REAR EXHAUST TERMINAL GRILL | 1 |
| 8 | 80874100 | SCREW | 8 |
| 9 | 81078500 | WASHER | 8 |
| 10 | 80874300 | CLIP | 10 |
| 11 | 69763100 | AIR OUTLET PLATE | 1 |
| 12 | 81536400 | BUMPER UPPER MOULDING | 1 |
| 13 | 69769300 | L.H. BRACKET | 1 |
| 13 | 69769200 | R.H. BRACKET | 1 |
| 14 | 13046011 | NUT | 6 |
| 15 | 82283100 | REAR LICENSE PLATE MOUNTING -Applicable for ECE- | 1 |
| 15 | 82283200 | REAR LICENSE PLATE MOUNTING -Valid for USA and CDN- | 1 |
| 15 | 82289300 | REAR LICENSE PLATE MOUNTING -Valid for J- | 1 |
| 16 | 250995 | REAR PARKING SENSOR WIRING HARNESS -Not for USA and CDN- | 1 |
| 16 | 250996 | REAR PARKING SENSOR WIRING HARNESS -Valid for USA and CDN- | 1 |
| 17 | 239082 | REAR PARKING SENSORS | 4 |
| 18 | 81544800 | RING | 4 |
| 19 | 81370500 | REAR CROSS MEMBER -Valid for USA and CDN- | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
