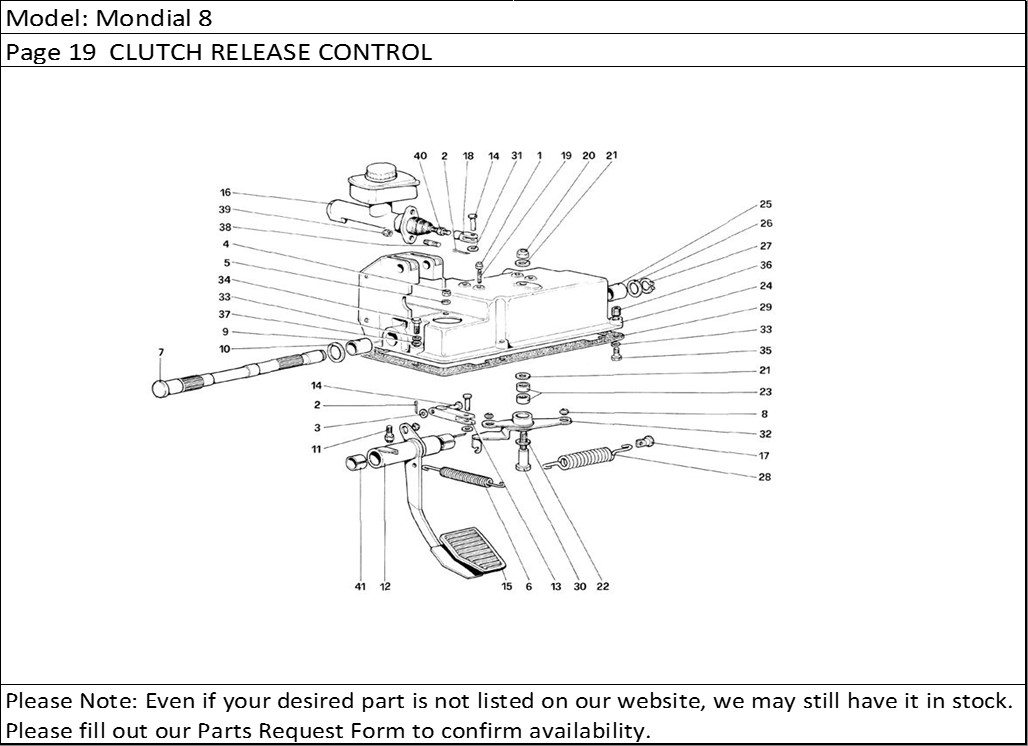

Mondial 8 Page 19 CLUTCH RELEASE CONTROL
Product Description
Mondial 8 Page 19 CLUTCH RELEASE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 12574121 | Dado | 4 |
| 2 | 10734201 | Copiglia | 3 |
| 3 | 10519601 | Rondella | 2 |
| 4 | 16100821 | Dado | 1 |
| 5 | 12601371 | Rondella | 1 |
| 6 | 104895 | Molla richiamo pedale | 1 |
| 7 | 112152 | Perno supporto pedali | 1 |
| 8 | 109407 | Snodo sferico | 3 |
| 9 | 101314 | Boccola | 1 |
| 10 | 112125 | Rondella di rasamento | 1 |
| 11 | 114825 | Puntalino d''arresto | 1 |
| 12 | 112179 | Pedale frizione | 1 |
| 13 | 112172 | Forcellino | 1 |
| 14 | 10050810 | Perno | 3 |
| 15 | 106949 | Gommino copripedale | 1 |
| 16 | 116093 | Pompa comando idraulico frizione | 1 |
| 17 | 114828 | Perno tenuta molla | 1 |
| 18 | 10007871 | Forcellino | 1 |
| 19 | 11000821 | THREADED STUD | 4 |
| 20 | 16105121 | Dado autobloccante | 1 |
| 21 | 113500 | Rondella | 2 |
| 22 | 112126 | Rondella di rasamento | 1 |
| 23 | 115430 | Astuccio a rullini | 2 |
| 24 | 112150 | Supporto pedaliera | 1 |
| 25 | 112153 | Boccola | 1 |
| 26 | 112128 | Rondella di rasamento | 1 |
| 27 | 11066675 | Anello elastico | 1 |
| 28 | 114826 | Molla assistenza | 1 |
| 29 | 112151 | Guarnizione | 1 |
| 30 | 114830 | Perno per leva rinvio | 1 |
| 31 | 12642701 | Rondella | 1 |
| 32 | 114829 | Leva rinvio | 1 |
| 33 | 106852 | Rondella | 5 |
| 34 | 16136021 | Vite | 3 |
| 35 | 16043421 | Vite | 2 |
| 36 | 105510 | Heli - coil | 2 |
| 37 | 10519620 | Rondella | 3 |
| 38 | 13543321 | THREADED STUD | 2 |
| 39 | 16104111 | Dado | 2 |
| 40 | 16102311 | Controdado | 1 |
| 41 | 103163 | Boccola | 2 |
