Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

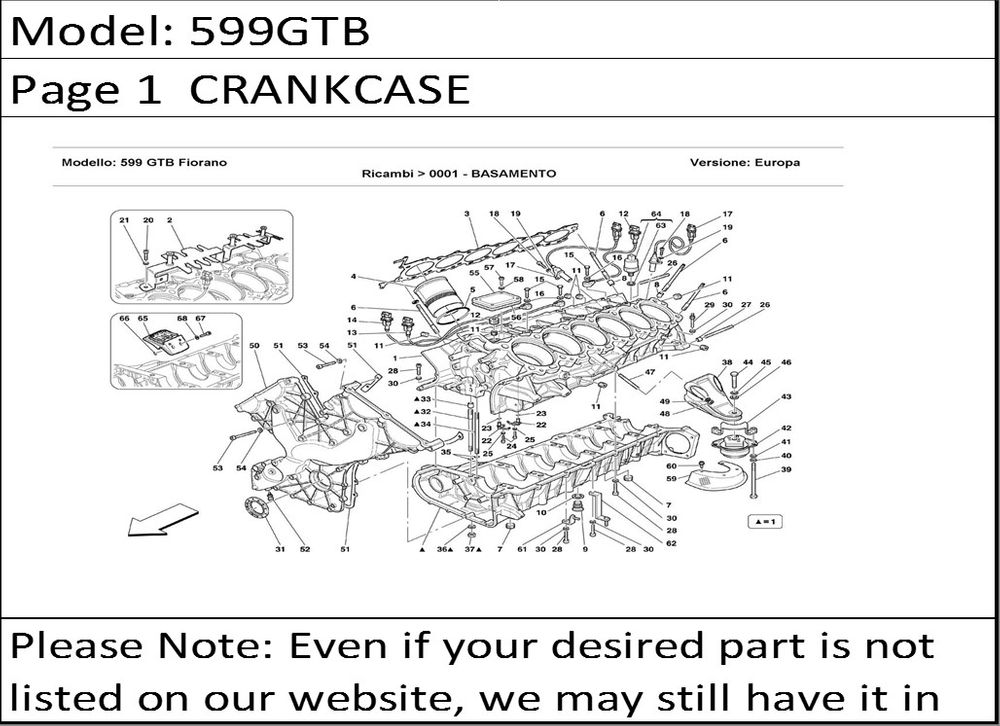

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 213370 | COMPLETE CRANKCASE-Valid till engine Nr. 122778 for not USA and CDN--Valid till engine Nr.124965 for USA and CDN- | 1 |
| 1 | 213370 | COMPLETE CRANKCASE | 1 |
| 2 | 223787 | CONNECTOR SUPPORT | 1 |
| 3 | 213513 | R.H. GASKET | 1 |
| - | 213514 | L.H. GASKET | 1 |
| 4 | 213971 | CYLINDER LlNER | 12 |
| 5 | 186251 | O.R. GASKET | 36 |
| 6 | 217968 | STUD | 28 |
| 7 | 10269850 | THREADED PLUG | 3 |
| 8 | 185360 | CENTERING DOWEL | 4 |
| 9 | 104280 | OIL OUTLET PLUG | 1 |
| 10 | 10261860 | GASKET | 1 |
| 11 | 164400 | THREADED PLUG | 7 |
| - | 10269850 | THREADED PLUG | 3 |
| 12 | 227016 | SENSOR FOR FIRING-L= 300 mm--For cylinders 5/6- | 1 |
| - | 227017 | SENSOR FOR FIRING-L= 300 mm--For cylinders 7/8- | 1 |
| 13 | 227015 | SENSOR FOR FIRING-L= 400 mm--For cylinders 3/4- | 1 |
| - | 227019 | SENSOR FOR FIRING-L= 400 mm--For cylinders 9/10- | 1 |
| 14 | 227014 | SENSOR FOR FIRING-L= 650 mm--For cylinders 1/2- | 1 |
| - | 227020 | SENSOR FOR FIRING-L= 650 mm--Far cylinders 11/12- | 1 |
| 15 | 16043834 | SCREW | 6 |
| 16 | 11198074 | WASHER | 6 |
| 17 | 227045 | ANGOLAR SPEED SENSOR | 2 |
| 18 | 14305724 | SCREW | 2 |
| 19 | 11197774 | WASHER | 2 |
| 20 | 14305124 | SCREW | 3 |
| 21 | 11197774 | WASHER | 3 |
| 22 | 221381 | PISTONS COOLING NOZZLE | 12 |
| 23 | 164877 | O.R. GASKET | 12 |
| 24 | 14302921 | SCREW | 12 |
| 25 | 11181474 | WASHER | 12 |
| 26 | 13546934 | STUD-M10x1,25x20 gambo 50- | 2 |
| - | 13547034 | STUD-M10x1,25x20 gambo 55- | 2 |
| - | 13547134 | STUD-M10x1,25x20 gambo 60- | 2 |
| - | 13547434 | STUD-M10x1,25x20 gambo 75- | 1 |
| 27 | 100052 | CENTERING DOWEL | 2 |
| 28 | 14305424 | SCREW-L= 25 mm- | 11 |
| - | 14305324 | SCREW-L= 20 mm- | 1 |
| - | 14305824 | SCREW-L= 40 mm- | 1 |
| 29 | 219283 | STUD | 1 |
| - | 214412 | STUD | 2 |
| 30 | 11197774 | WASHER | 16 |
| 31 | 188717 | GASKET | 1 |
| 32 | 217796 | STUD | 14 |
| 33 | 176421 | CENTERING DOWEL | 14 |
| 34 | 190426 | STUD | 14 |
| 35 | 134704 | O.R. GASKET | 28 |
| 36 | 178348 | WASHER | 28 |
| 37 | 133988 | NUT | 28 |
| 38 | 209827 | ENGINE FIXING R.H. SUPPORT | 1 |
| - | 210375 | ENGINE FIXING L.H. SUPPORT | 1 |
| 39 | 15971834 | SCREW-L= 100 mm- | 2 |
| - | 122418 | SCREW-L= 165 mm- | 2 |
| 40 | 14496624 | WASHER | 4 |
| 41 | 127497 | WASHER | 4 |
| 42 | 196746 | FLEXlBLE PAD | 2 |
| 43 | 215704 | BRACKET FOR FULL BUMP POSISION PAD | 2 |
| 44 | 16039734 | SCREW | 2 |
| 45 | 13550521 | WASHER | 2 |
| 46 | 127498 | WASHER | 2 |
| 47 | 13449934 | STUD | 8 |
| 48 | 133988 | NUT | 8 |
| 49 | 11190574 | WASHER | 8 |
| 50 | 211282 | FRONT COVER | 1 |
| 51 | 197770 | FRONT COVER GASKET | 1 |
| 52 | 180137 | TEMPERATURE SENSOR | 1 |
| 53 | 14432224 | SCREW-L= 22 mm- | 13 |
| - | 14305524 | SCREW-L= 30 mm- | 4 |
| - | 14305624 | SCREW-L= 35 mm- | 1 |
| - | 14305824 | SCREW-L= 40 mm- | 4 |
| - | 14305924 | SCREW-L= 45 mm- | 1 |
| - | 14304824 | SCREW-L= 55 mm- | 2 |
| 54 | 11197774 | WASHER | 27 |
| 55 | 208451 | COVER | 1 |
| 56 | 209623 | GASKET | 1 |
| 57 | 14305324 | SCREW | 4 |
| 58 | 11197774 | WASHER | 4 |
| 59 | 212879 | SHIELD | 2 |
| 60 | 13026924 | SCREW | 4 |
| 61 | 224128 | PIPE FIXJNG BRACKET | 2 |
| 62 | 226548 | PIPE FIXJNG BRACKET | 1 |
| 63 | 183010 | GASKET | 2 |
| 64 | 201207 | OIL PRESSURE TRANSMITTER | 1 |
| 65 | 10259960 | GASKET | 1 |
| 29 | 820340 | RH THREE POINT SEAT BELT -Not for GD- | 1 |
| 29 | 829594 | RH THREE POINT SEAT BELT -Applicable for GD- | 1 |
| 30 | 82447100 | SCREW | 2 |
| 31 | 65408700 | NUT | 2 |
| 32 | 82140000 | SCREW | 8 |
| 33 | 66327100 | SCREW | 8 |
| 34 | 83491700 | BELT GUIDE SCREW COVER -Applicable for USA and CDN- | 2 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
