Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

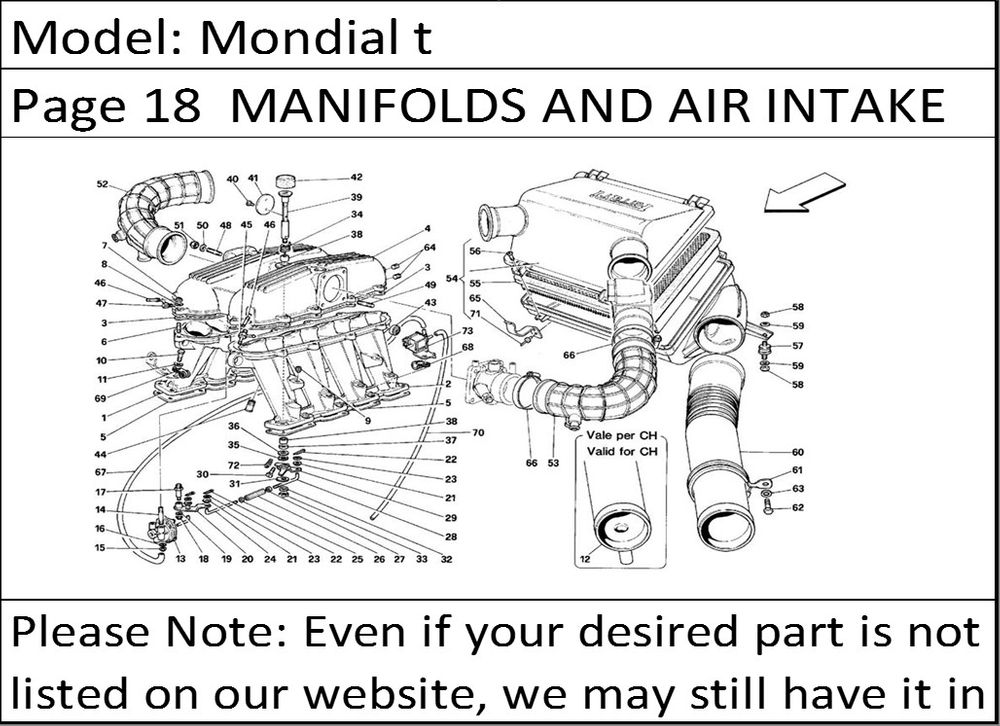

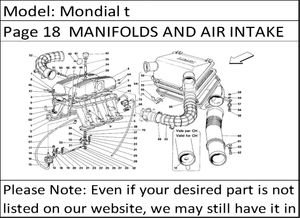

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 144508 | R.H. complete suction manifold | 1 |
| - | 144509 | L.H. complete suction manifold | 1 |
| - | 145365 | Suction manifolds cover assy | 1 |
| 3 | 138045 | Gasket | 2 |
| 5 | 138029 | Gasket | 2 |
| 6 | 11500321 | Stud bolt | 20 |
| 7 | 101239 | Nut | 20 |
| 8 | 12601274 | Washer | 20 |
| 9 | 13525770 | Heli-coil | 4 |
| 10 | 16043724 | Screw | 20 |
| 11 | 12601374 | Washer | 20 |
| 12 | 142492 | Tube -Valid for CH | 1 |
| 13 | 136815 | Pneumatic capsule | 1 |
| 14 | 11001721 | Stud bolt | 2 |
| 15 | 169180 | Nut | 2 |
| 16 | 14496301 | Washer | 2 |
| 17 | 137277 | Lever stud bolt | 1 |
| 18 | 169180 | Nut | 1 |
| 19 | 12637824 | Washer | 1 |
| 20 | 137135 | Lever | 1 |
| 21 | 137271 | Bush | 3 |
| 22 | 10794501 | Split pin | 3 |
| 23 | 14496201 | Washer | 3 |
| 24 | 137270 | L.H. thread tie rod | 1 |
| 25 | 10791111 | L.H. thread nut | 1 |
| 26 | 137273 | Sleeve | 1 |
| 27 | 10794011 | Nut | 1 |
| 28 | 137276 | R.H. thread tie rod | 1 |
| 29 | 137134 | Throttle lever | 1 |
| 30 | 153399 | Register screw | 1 |
| 31 | 113566 | Safety plate | 1 |
| 32 | 137126 | Washer | 1 |
| 33 | 16102314 | Nut | 1 |
| 34 | 138169 | Spring | 1 |
| 35 | 11065676 | Seeger | 1 |
| 36 | 136921 | Washer | 1 |
| 37 | 129269 | Seal ring | 2 |
| 38 | 136922 | Bush | 2 |
| 39 | 138173 | Throttle shaft | 1 |
| 40 | 136923 | Screw | 2 |
| 41 | 137280 | Throttle | 1 |
| 42 | 139373 | Cap | 1 |
| 43 | 100424 | Ball joint | 2 |
| 44 | 113636 | Union | 2 |
| 45 | 128959 | Multipleunion | 1 |
| 46 | 117348 | Union | 2 |
| 47 | 128016 | Union | 1 |
| 48 | 13541124 | Upper fasteningstud bolt | 4 |
| 49 | 13541124 | Lower fastening stud bolt | 4 |
| 50 | 14496424 | Washer | 8 |
| 51 | 102948 | Nut | 8 |
| 52 | 136317 | R.H. sleeve | 1 |
| 53 | 136318 | L.H. sleeve | 1 |
| 54 | 137993 | Complete air inlet - Not for cars with catalyst | 1 |
| 54 | 141862 | Complete air inlet - Valid for cars with catalyst | 1 |
| 55 | 155871 | Air filter | 1 |
| 56 | 10376777 | Screw | 4 |
| 57 | 102947 | Pad | 3 |
| 58 | 102741 | Nut | 6 |
| 59 | 14496424 | Washer | 6 |
| 60 | 143950 | Air inlet connection pipe -Valid for cars catalyst and 77DB - Not for USA and CH | 1 |
| 61 | 140653 | Clamp | 1 |
| 62 | 10902024 | Screw | 1 |
| 63 | 11193279 | Washer | 1 |
| 64 | 141563 | Cap - Not for cars catalyst | 4 |
| 65 | 139550 | Spring | 2 |
| 66 | 12176490 | Clamp | 4 |
| 67 | 128907 | Pneumatic capsule to solenoid valve pipe | 1 |
| 68 | 10450590 | R.H. bracket | 1 |
| 68 | 10450490 | L.H. bracket | 1 |
| 69 | 10450290 | Bracket | 2 |
| 70 | 135959 | Pipe from solenoid valve to 3-way union | 1 |
| 71 | 14640891 | Rivet | 2 |
| 72 | 153400 | Spring | 1 |
| 73 | 111704 | Solenoid valve | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
