Home > Ferrari Parts 208 GTB/GTS Turbo (1980-1982) Table 112 Instrument Panel Parts

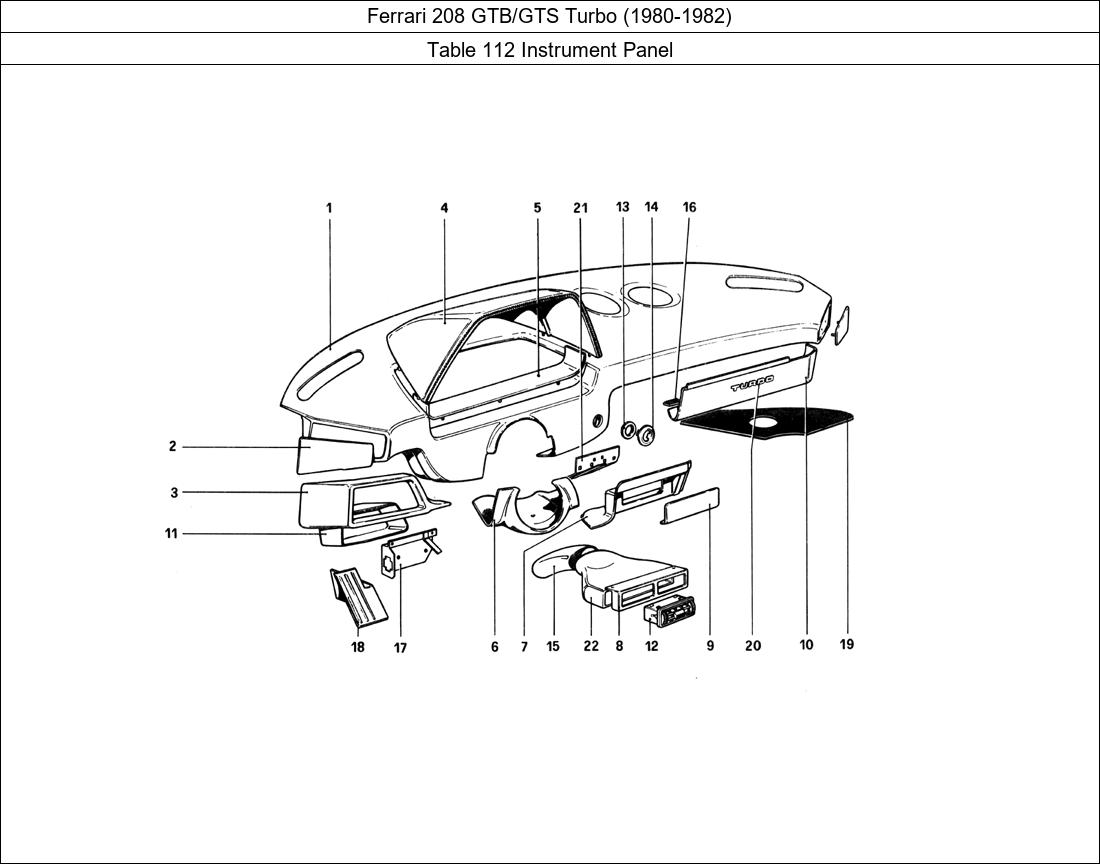

Ferrari Parts 208 GTB/GTS Turbo (1980-1982) Table 112 Instrument Panel Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	60303500	PLANCIA PORTASTRUMENTI	1
1	60068806	RIVESTIMENTO PLANCIA	1
2	60069408	MODANATURA DX.	1
2	60069507	MODANATURA SX.	1
2	60069606	CLADDING MOULDING RIGHT. AND SX.	2
3	60752300	MOLDING STORAGE SOTTOPLANCIA	1
3	60752400	COVERING LHD	1
4	60066800	RIVESTIMENTO VISIERA	1
4	60066909	VISIERA CRUSCOTTO	1
5	60069804	MOULDING LOWER DASH	1
5	60069705	RIVESTIMENTO MODANATURA	1
6	60092103	COPRIPIANTONE	1
6	60092202	RIVESTIMENTO COPRIPIANTONE	1
7	60068707	PLANCETTA AUTORADIO	1
7	60068608	RIVESTIMENTO PLANCETTA	1
8	60375409	SUPPORTO PER BOCCHETTA A.C.	1
9	60146206	PARATIA COPRISEDE RADIO	1
10	60078706	CABINET DOOR	1
10	60078607	DOOR LINING	1
10	60956600	DOOR AND RELAY VALVE COVERS	1
11	60752500	PORTAOGGETTI SOTTOPLANCIA	1
11	60752600	STORAGE COVER SOTTOPLANCIE	1
12	60124302	AIR OUTLET AC	2
13	60164100	RING NUT	1
14	60164001	IGNITION LOCK SURROUND PLASTIC	1
15	60133204	AC DUCT	1
16	50101708	BLOCCHETTO DI FISSAGGIO	4
17	61106700	SUPPORT FOR BLOCKS	1
18	60091006	SUOLETTA APPOGGIAPIEDI GTB	1
18	60370202	SUOLETTA APPOGGIAPIEDI GTS	1
19	60143609	R.H. CARPET	1
19	60143708	L.H. CARPET	1
19	60378403	TAPPETO SOTTOPLANCIA DX. GTS	1
19	60378502	TAPPETO SOTTOPLANCIA SX. GTS	1
20	61008000	SIGLA TURBO	1
21	60094109	SUPPORT	1
22	60375201	AC CONVEYHOR FOR LHD	1
