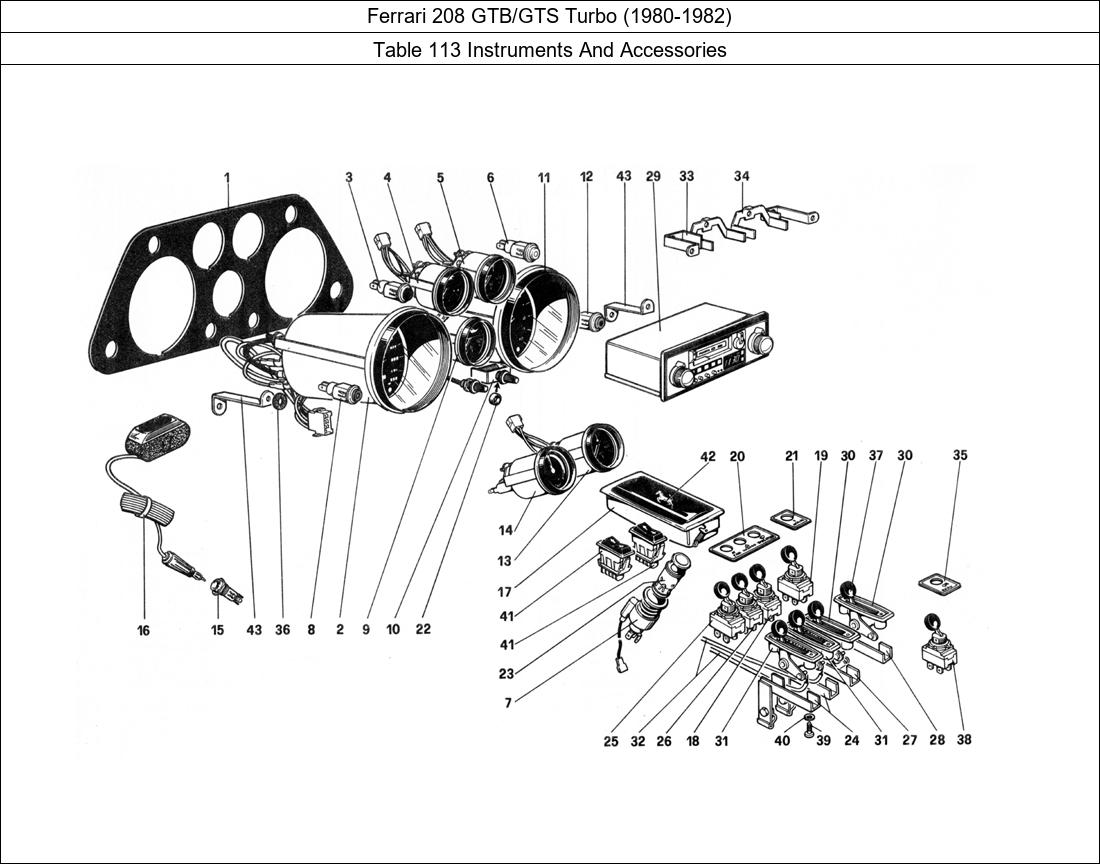

Ferrari Parts 208 GTB/GTS Turbo (1980-1982) Table 113 Instruments And Accessories Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	60768200	PIASTRA PORTASTRUMENTI	1
2	118067	CONTA KM. CON AZZERATORE	1
3	40083701	SPIA ARANCIO	1
4	116958	INDICATORE LIVELLO BENZINA	1
5	117120	TERMOMETRO ACQUA	1
6	40083602	(N) YELLOW WARNING LIGHT SA	1
7	61107600	BODY FOR CIGARETTE LIGHTER	1
8	60771400	SPIA EMERGENZA ROSSA	1
9	117122	INDICATORE PRESSIONE OLIO	1
10	117099	REOSTATO LUCI STRUMENTI	1
11	118936	ELECTRONIC REV. COUNTER	1
12	60771300	ALTERNATOR WARNING LIGHT	1
13	117121	TERMOMETRO OLIO	1
14	119461	MANOMETRO ARIA	1
15	40179301	SPMA PER LAMPADA DI SOCCORSO	1
16	40179202	EMERGENCY LAMP	1
17	60781300	PORTACENERE CON CAVALLINO	1
18	60063104	SWITCH HAZARD 7 PIN	1
19	40168007	INTERRUTTORE ANTENNA RADIO	1
20	60770800	PLATE SWITCH	1
21	60063203	SWITCH PLATE R-DEF.	1
22	40302903	DISTANZIALE PER REOSTATO	1
23	61107500	BODY FOR CIGARETTE LIGHTER	1
24	60258704	PONTICELLO LEVA RUBINETTO	2
25	50322007	SWITCH / CONSOLE	1
26	60053600	INTERIOR SWITCH	1
27	40136905	BRACKET / SUPPORT	1
28	50073402	BRACKET / SUPPORT	1
29	61111400	AUTORADIO CON OROLOGIO	1
30	60770900	LEVA DEFROSTER	2
31	60548200	LEVA RUBINETTO RISCALDAMENTO	2
32	60126208	HOUSING AND CABLE TAP	2
33	60077906	STAFFA SUPERIORE SX.	1
34	60077807	STAFFA SUPERIORE DX.	1
35	60712600	SWITCH PLATE R-FOG LIGHT	1
36	60160801	SPACER	1
37	50017201	TOGGLE SWITCH KNOB "MOUSE EAR"	1
38	60053709	SINGLE TOGGLE 2 WIRE SWITCH	1
39	17671201	VITE FISS. LEVE E PONTICELLI	8
40	12638101	WASHER	8
41	114633	WINDOW SWITCH	2
42	60036100	SMALL PRANCING HORSE MOTIF CHROME	1
43	60078003	BRACKET	2
