Home > Ferrari Parts Enzo Table 106 Rear Bumper And Flat Floor Pan Parts

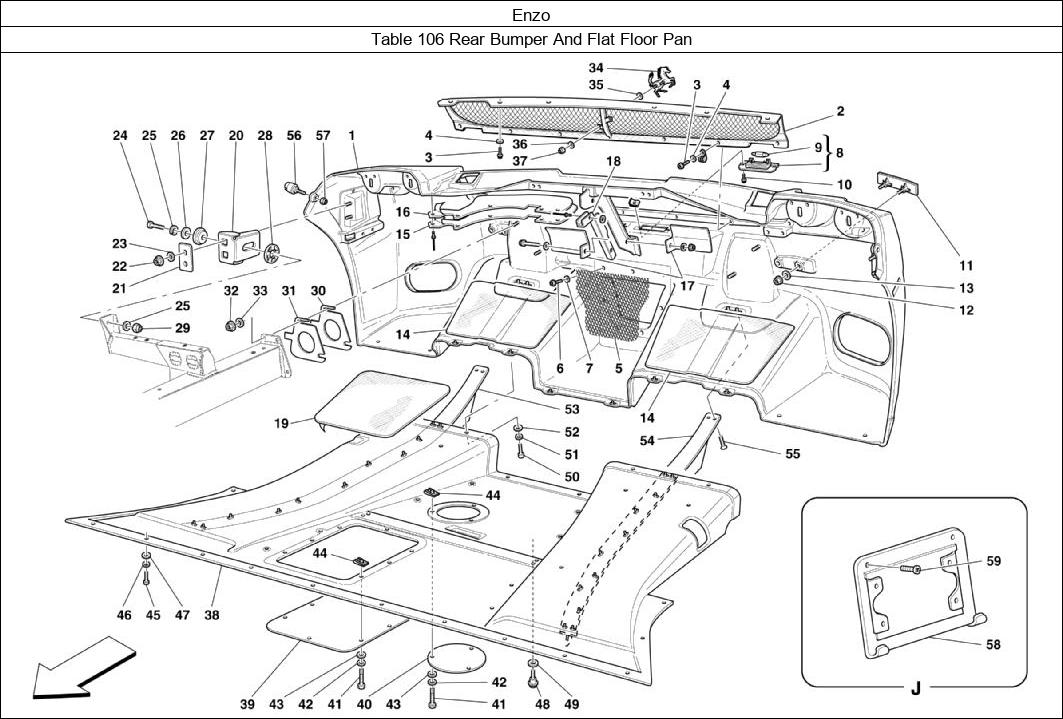

Ferrari Parts Enzo Table 106 Rear Bumper And Flat Floor Pan Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	66530910	COMPLETE REAR BUMPER	1
1	66955810	COMPLETE REAR BUMPER	1
1	67634910	COMPLETE REAR BUMPER	1
2	66925600	AIR OUTLET GRILLE	1
3	65366700	SCREW -M5 X 12-	12
3	16285127	SCREW -M5 X 16-	1
3	169814	SCREW	12
4	166467	WASHER	13
5	66927600	LOWER CENTER GRILLE	1
6	65366700	SCREW -M5 X 12-	7
7	166467	WASHER	7
8	186180	NUMBER PLATE LIGHT	2
8	186180	NUMBER PLATE LIGHT	2
9	10857790	12V-5W LAMP	2
10	15644175	SCREW	4
11	67362000	L.H. REFLECTOR	1
11	67362100	R.H. REFLECTOR	1
12	13046011	NUT	4
13	12620374	WASHER -NO LONGER SUPPLIED-	4
14	67380200	INSULATION	2
15	67414200	BUMPER COVER	2
16	67414100	HEAT SHIELD	2
17	67414300	NUMBER PLATE LIGHTS SHIELD	1
18	67414400	CENTRAL SUPPORT SHIELD	1
19	67380200	INSULATION	2
20	62973000	SIDE BRACKET	2
21	62126600	PLATE	2
22	13046314	NUT	4
23	12646824	WASHER	4
24	11307024	SCREW	2
25	12646801	WASHER	4
26	127497	WASHER	2
27	62128200	EXTERNAL SMALL BLOCK	2
28	62128300	INTERNAL SMALL BLOCK	2
29	104114	NUT	2
30	67192000	THICKNESS	8
31	67196900	THICKNESS	1
32	13046314	NUT	4
33	12646824	WASHER	4
34	60032109	BADGE PRANCING HORSE CHROMED 75MM HEIGHT	1
35	60995100	GASKET	1
36	14496101	WASHER	1
37	61002200	NUT	1
38	66531100	REAR UNDER THE BODY SHELL SHIE…	1
39	66570300	COVER FOR CHANGE OIL	1
40	66570200	COVER INSPECTION TRANSMISSION	1
41	14742224	SCREW	11
42	12620474	WASHER	11
43	14498804	WASHER	11
44	62766300	CLIP	11
45	10902224	SCREW	22
46	12601174	STEERING COLUMN WASHER	22
47	12638124	WASHER	22
48	66806900	SCREW	4
49	12601474	MAIN BEARING WAVE WASHER	4
49	12601474	M10 WAVY WASHER	4
50	14304224	SCREW	6
51	12601174	STEERING COLUMN WASHER	6
52	12638124	WASHER	6
53	66569700	R.H. VERTICAL FIN	1
54	66569600	L.H. VERTICAL FIN	1
55	14440724	SCREW	26
56	67204600	PAD	2
57	13046124	NUT	2
58	67740200	REAR PLATE FRAME	1
59	14072614	SCREW	4
