Home > Ferrari Parts 308 GTB/GTS Quattrovalvole Table 2 Crankcase Parts

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 2 Crankcase Parts

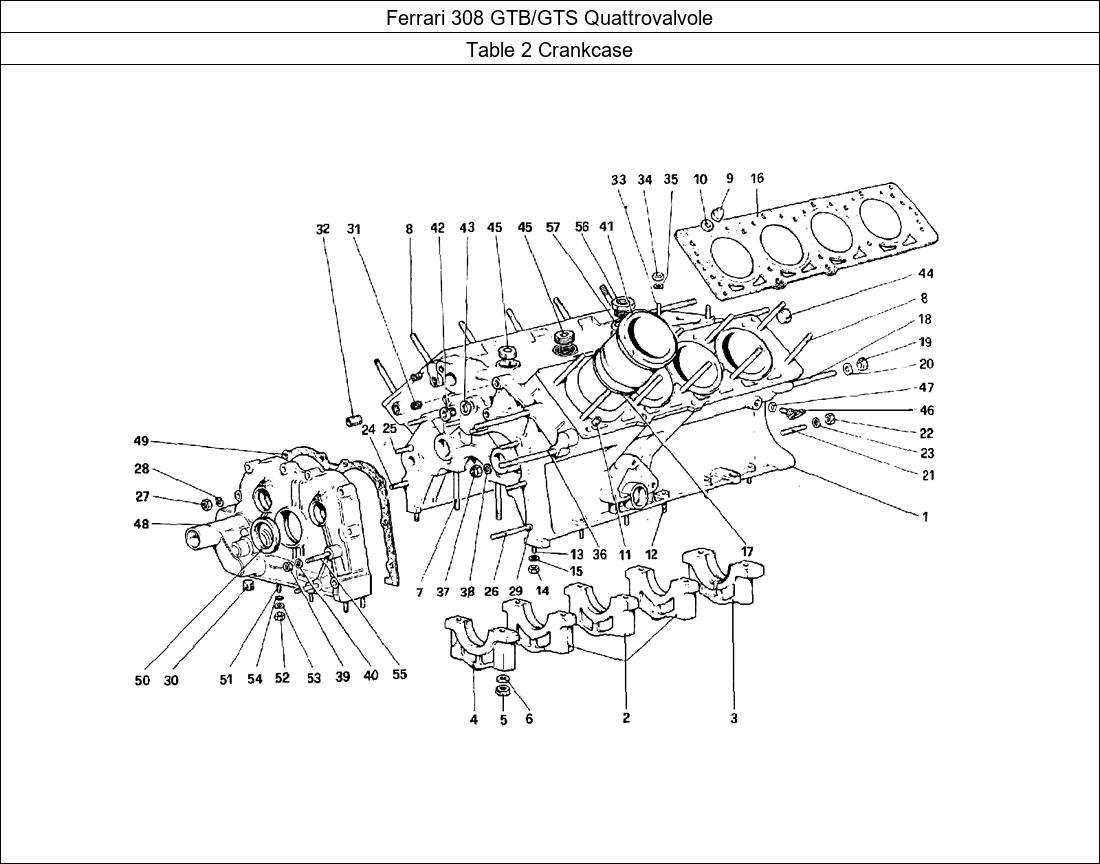

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	117598	CRANKASE, COMPLETE	1
1	121286	CRANKASE, COMPLETE	1
1	117579	DITTO, THICKNESS 3,75 MM.	1
1	121267	CRANKASE	1
1	120591	CRANKASE	1
2	103764	CAP FOR INTERMEDIATE SUPPORT	3
3	103765	CAP FOR REAR SUPPORT	1
4	103766	CAP FOR FRONT SUPPORT	1
5	103841	NUT	10
6	103842	WASHER	10
7	104075	STUD	10
8	111591	STUD	20
9	100101	CYLINDER HEAD NUT 4 CAM M10X1	20
10	100100	HEAD NUT WASHER M11	20
11	118317	DOWEL	4
12	13543621	STUD	6
13	12354521	STUD	2
13	13543321	STUD	1
14	16100811	NUT	9
15	11190871	WASHER	9
16	117515	GASKET	2
17	110021	O RING	8
18	13953521	STUD	5
19	12164711	NUT	5
20	12601471	WASHER	5
21	11500621	STUD BOLT	6
22	15896211	NUT	6
23	11197771	WASHER BELLVILLE 6MM	6
23	11197771	CAM COVER WASHER	6
24	13517321	STUD	6
25	13517421	STUD FOR BELT STRETCHER	1
25	13517521	STUD	1
26	13952521	STUD	1
27	16104411	NUT	8
28	12601371	WASHER	8
29	102704	DOWEL	2
30	14326150	PLUG	1
31	13525770	HELI-COIL	4
32	13526070	THREADED INSERT	2
33	13517221	STUD	3
34	16104411	NUT	3
35	12601371	WASHER	3
36	115237	STUD	2
37	12575621	SELFLOCKING NUT	2
38	107993	WASHER	2
39	16104411	NUT	2
40	12601371	WASHER	2
41	123713	PIPE	8
41	119536	CYL. LINER 4V (GREEN)	8
42	10275001	OIL LEVEL INSPECTION PLUG	2
43	10263460	COPPER WASHER 22X27MM	2
44	10269850	PLUG FOR LUBRICATING PORTS	2
45	14325540	CORE PLUG	2
46	103948	RADIATOR DRAIN TAP - PETCOCK	1
47	10280060	WASHER 14X20X1.5MM	1
48	117977	FRONT COVER, COMPLETE	1
48	121289	FRONT COVER COMPLETE	1
48	117971	FRONT COVER	1
48	121271	FRONT COVER	1
49	103791	GASKET	1
50	108224	OIL SEAL 44X60X10	1
51	12354521	STUD	6
52	16100811	NUT	6
53	11198071	WASHER	6
54	103039	O-RING	1
55	13543621	STUD	2
56	115245	UNION FOR THERMAL SWITCH	1
57	10296260	COPPER WASHER	1
