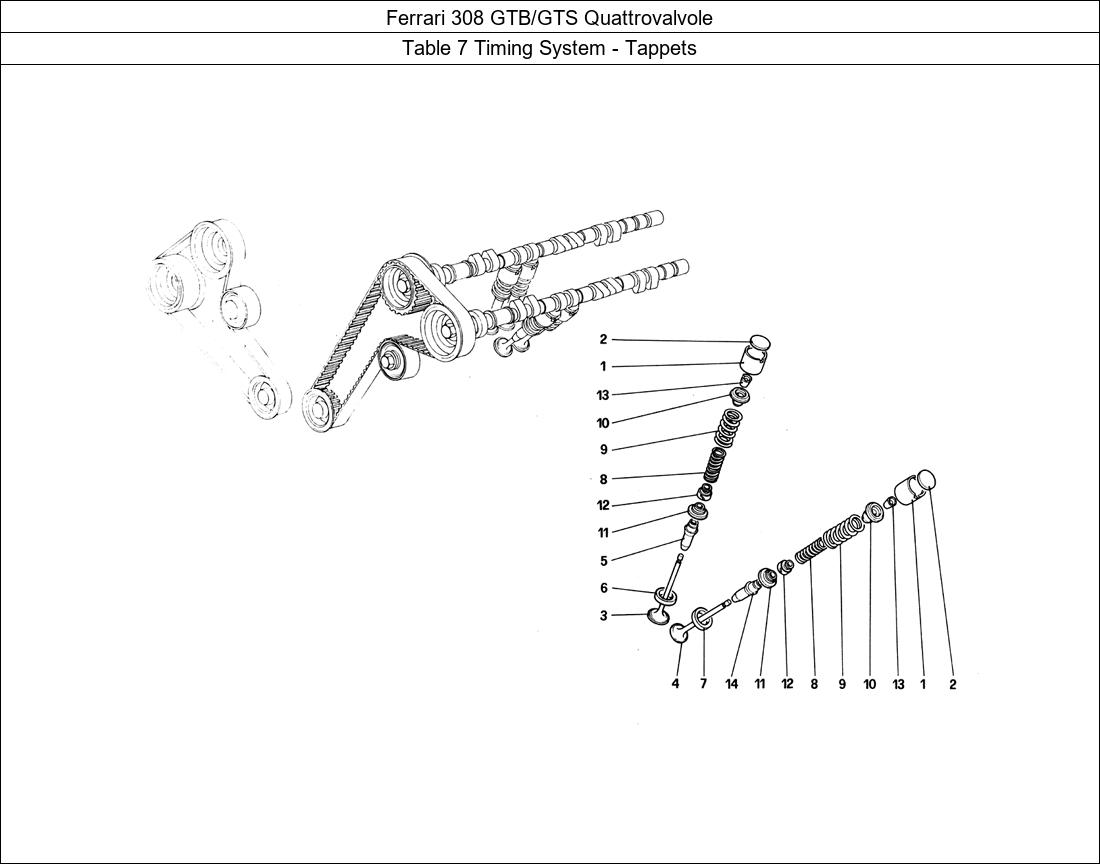

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 7 Timing System - Tappets Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	117562	TAPPET FOR VALVE CONTROL	32
2	117569	SHIM FOR VALVE ADJUSTING, THICKNESS 3,25 MM.	32
2	117572	DITTO, THICKNESS 3,40 MM.	32
2	117574	DITTO, THICKNESS 3,50 MM.	32
2	117575	DITTO, THICKNESS 3,55 MM.	32
2	117576	DITTO, THICKNESS 3,60 MM.	32
2	117577	DITTO, THICKNESS 3,65 MM.	32
2	117578	DITTO, THICKNESS 3,70 MM.	32
2	117579	DITTO, THICKNESS 3,75 MM.	32
2	117580	DITTO, THICKNESS 3,80 MM.	32
2	117581	DITTO, THICKNESS 3,85 MM.	32
2	117582	DITTO, THICKNESS 3,90 MM.	32
2	117583	''DITTO, THICKNESS 3,95 MM.	32
2	117584	DITTO, THICKNESS 4,00 MM.	32
2	117585	DITTO, THICKNESS 4,05 MM.	32
2	117586	DITTO, THICKNESS 4,10 MM.	32
2	117587	DITTO, THICKNESS 4,1 5 MM.	32
2	117588	DITTO, THICKNESS 4,20 MM.	32
2	117589	DITTO, THICKNESS 4,25 RUM.	32
2	117590	DITTO, THICKNESS 4,30 MM.	32
2	117591	DITTO, THICKNESS 4,35 MM.	32
2	117592	DITTO, THICKNESS 4,40 MM.	32
2	117593	DITTO, THICKNESS 4,45 MM.	32
2	117594	DITTO, THICKNESS 4,50 MM.	32
2	117595	DITTO, THICKNESS 4,55 MM.	32
2	117596	DITTO, THICKNESS 4,60 MM.	32
2	117570	TAPPET PAD 3.30MM	32
2	117571	TAPPET PAD 3.35MM	32
2	117573	TAPPET PAD 3.45MM	32
3	117363	INTAKE VALVE	16
4	117364	EXHAUST VALVE	16
5	117564	INTAKE VALVE GUIDE OVERIZED OR 0.2 MM.	16
5	117563	INTAKE VALVE GUIDE 308/328 OEM	16
6	111294	INTAKE VALVE SEAT	16
7	119171	EXHAUST VALVE SEAT	16
8	117558	INNER SPRING	32
9	117559	OUTER VALVE SPRING (TESTAROSSA)	32
10	117567	SPRING RETAINING UPPER CUP	32
11	117568	SPRING RETAINING LOWER CUP	32
12	119051	OIL SEAL FOR VALVES GUIDE	32
13	117283	COTTER FOR VALVE SPRING CUP	64
14	117566	EXHAUST VALVE GUIDE	16
14	117565	EXHAUST VALVE GUIDE QV OEM	16
