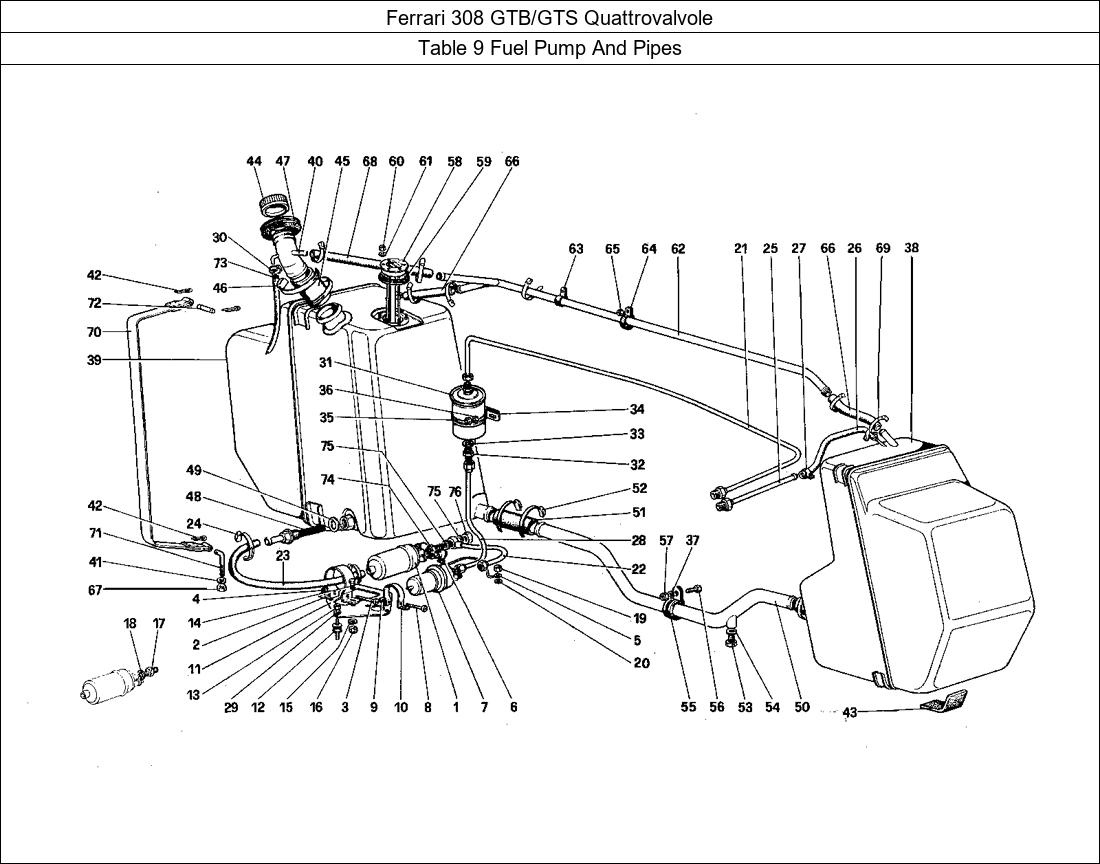

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 9 Fuel Pump And Pipes Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	113976	FUEL PUMP	1
1	121727	FUEL PUMP	1
2	113673	PUMP RETAINING CLAMP	1
3	10377311	SCREW	1
4	14089311	SQUARE NUT	1
5	115153	EARTH CABLE	1
6	107003	WIRE RUBBER BOOT	2
7	113978	FUEL ACCUMULATOR 0438170004	1
8	10376111	SCREW	1
9	14089311	SQUARE NUT	1
10	113674	ACCUMULATOR RETAINING CLAMP	1
11	115513	SUPPORT FOR PUMP AND ACCUMULATOR	1
12	102947	FUEL PUMP MOUNTING	3
12	102947	MOUNT	3
13	12574211	NUT	5
14	10902121	SCREW	4
15	10519421	WASHER	2
16	12574211	NUT	4
17	109797	UNION ON DELIVERY SIDE	1
18	113910	GASKET	1
19	15896211	NUT	1
20	10571570	SPRING WASHER	1
21	118610	PIPE, FILTER TO METERING ADVICE	1
22	115532	PIPE FROM PUMP TO ACCUMULATOR	1
22	119305	FUEL PIPE	1
23	119281	FUEL TANK FILTER TO FUEL PUMP HOSE	1
24	12179590	CLAMP	2
25	118580	RETURN PIPE	1
26	116767	FUEL TANK RETURN HOSE 308 QV	1
27	12179490	CLAMP	2
28	119278	FUEL PUMP TO REGULATOR HOSE	1
29	10519401	WASHER	1
30	101296	FASCETTA	1
31	115738	FUEL FILTER 71051	1
31	115738	FUEL FILTER 71051	2
32	109797	UNION ON DELIVERY SIDE	1
33	113910	GASKET	1
34	115140	SHEATHED BRACKET FOR FILTER	1
35	12574521	UPPER AND LOWER FRONT BALL JOINT NUT 246	1
36	13550401	WASHER	1
37	12643701	FLAT WASHER	1
38	114605	R.H. TANK	1
39	121318	L.H. TANK	1
39	119015	L.H. TANK	1
40	109321	FUEL FILLER NECK 308	1
41	13605711	SPACER	1
42	10796401	COTTER PIN	6
43	107889	SHIM FOR TANKS	10
44	113041	CONTAGIRI ELETTRONICO	1
45	114282	MANICOTTO PER BOCCHETTONE	1
46	12174790	HOSE CLIP	2
47	101465	GAS CAP HOUSING/TRUNK SEAL GASKET 275	1
47	101465	FUEL FILLER NECK SEAL	1
48	116870	FILTER	1
49	117884	GASKET FOR FUEL FILTER	1
50	115482	FUEL CROSS OVER PIPE	1
51	114277	FUEL CROSS OVER HOSE	2
51	114277	FUEL TANKS BRIDGE PIPE CONNECTING HOSE 512 BB	2
52	12173890	CLAMP	4
53	10300771	DRAIN PLUG	1
54	10278650	GASKET	1
55	106195	PIPE SUPPORTING CLAMP	1
56	10902121	SCREW	1
57	12574211	NUT	1
58	108644	LEVEL GAUGE CONTROL	1
59	101462	FUEL TANK SENDER GASKET	1
59	101462	FUEL SENDING UNIT GASKET	1
60	10794011	NUT	6
61	106848	WASHER	6
62	108521	BREATHER PIPE	1
63	10450490	CLAMP ? 16 MM	1
64	10441590	SMALL BRACKET WITH SHEATHING	3
65	12574211	NUT	3
66	109353	PIPE	2
67	16104111	NUT	2
68	109354	PIPE	1
69	12179590	CLAMP	6
70	106667	FUEL TANK STRAP 308/208	2
71	12311271	TIE ROD FOR STRAP	2
72	103447	PIN	2
73	106666	TUBO SFIATO	1
74	120098	FUEL PUMP CHECK VALVE	1
75	11270160	FUEL PUMP WASHER 400/365/TESTAROSSA	2
76	10183217	DRAIN PLUG	1
