Ferrari Parts 308 GTB/GTS Quattrovalvole Table 10 Fuel Injection System - Fuel Distributors, Lines Parts

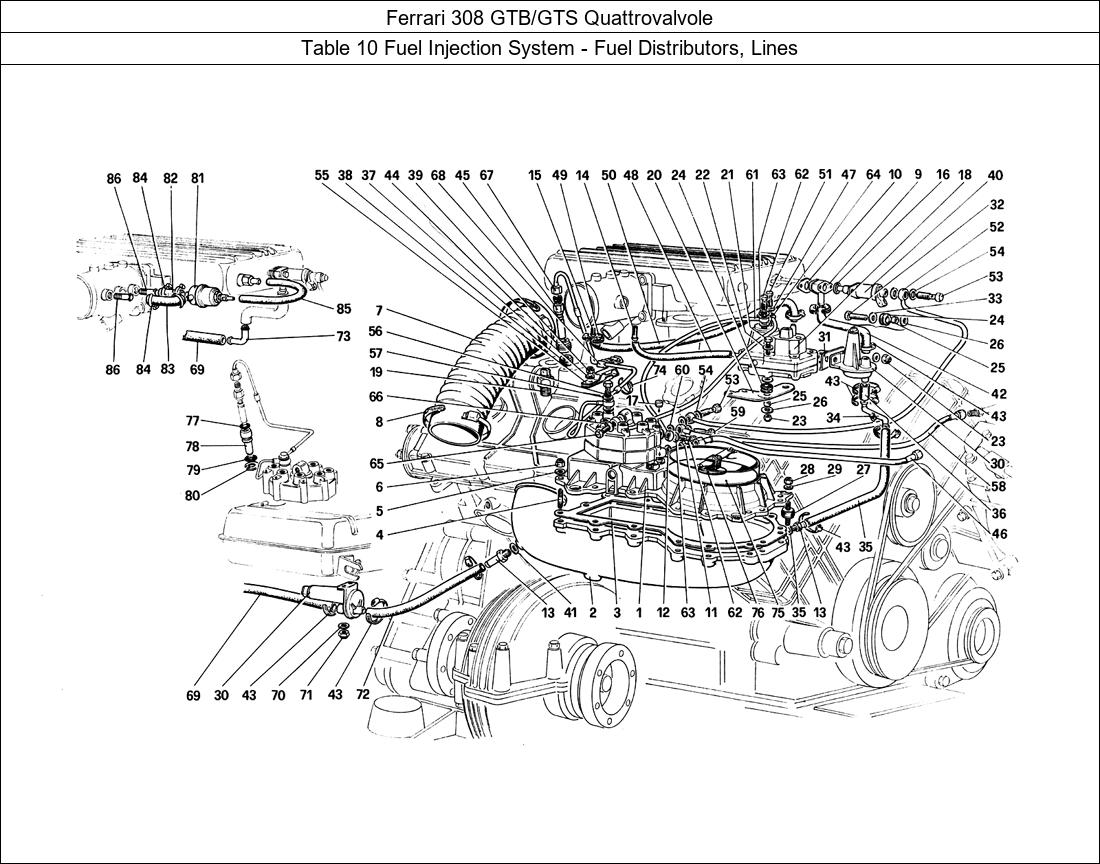

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	115329	METERING DEVICE	1
2	120361	SUPPORT FOR METERING DEVICE, COMPLETE	1
2	115219	SUPPORT FOR METERING DEVICE	1
2	120261	SUPPORT FOR METERING DEVICE	1
2	118070	SUPPORT FOR METERING DEVICE, COMPLETE	1
3	115011	GASKET	1
4	13541121	STUD	15
5	12601271	WASHER	15
6	12574211	NUT	15
7	118310	AIR HOSE	1
8	12174990	DUCT CLAMP	2
9	115004	UNION	1
10	115005	GASKET	1
11	115498	UNION WITH FILTER	1
12	11270160	FUEL PUMP WASHER 400/365/TESTAROSSA	1
13	116860	THERADED UNION	1
14	113637	UNION FOR WARM-UP REGOLATOR	1
15	113652	NIPPLE	1
16	116757	FUEL RECOVERY PIPE	1
16	103039	O-RING	1
17	115650	HOOD INVIOLABILITY	1
18	118585	WARM-UP REGULATOR	1
18	119825	WARM UP REGULATOR REPAIR KIT	1
19	113980	COLD START THERMO SWITCH	1
20	118291	SUPPORT	1
21	10903821	SCREW	2
22	12604271	WASHER	2
23	12574211	NUT	1
24	103549	CABLE GROMMET	1
25	103550	SPACER	1
26	12643701	FLAT WASHER	1
27	102947	FUEL PUMP MOUNTING	3
27	102947	MOUNT	3
28	12575411	NUT	3
29	12601271	WASHER	3
29	12640601	WASHER	1
30	113974	AUX AIR VALVE	1
31	118292	SUPPORT	1
32	10902621	SCREW	1
33	12601271	WASHER	2
34	116307	PIPE	1
35	116306	PIPE	1
36	115407	PIPE	1
37	11197771	WASHER BELLVILLE 6MM	1
37	11197771	CAM COVER WASHER	1
38	114661	FUEL INJECTOR SEAL	8
39	12575411	NUT	1
40	115739	AUXILIARY STARTING ASSEMBLY	1
41	10280060	WASHER 14X20X1.5MM	1
42	115226	PIPE	1
43	12179590	CLAMP	6
44	114660	FUEL INJECTOR HOLDER	8
45	113975	FUEL INJECTOR	8
45	113975	FUEL INJECTOR 400I	8
46	117885	FUEL PIPE ARRIVE	1
47	10260160	COPPER WASHER	2
48	115002	PIPE	1
49	12179190	CLAMP	2
50	118293	PIPE	1
51	113670	UNION	1
52	115753	PIPE	1
53	113664	UNION	2
54	14330260	GASKET	4
55	115417	BRACKET FOR CLAMP	1
56	113670	UNION	8
57	10260160	COPPER WASHER	16
58	118393	RETURN PIPE	1
59	111644	FITTING	1
60	113910	GASKET	2
61	118398	RETURN PIPE FROM REGULATOR	1
62	113664	UNION	2
63	14330260	GASKET	4
64	115507	TUBO MANDATA DAL REGOLATORE	1
65	113664	UNION	1
66	14330260	GASKET	1
67	118594	PIPE FROM METERING DEVICE TO CYLINDER 5	1
67	118596	PIPE FROM METERING DEVICE TO CYLINDER 7	1
67	118597	PIPE FROM METERING DEVICE TO CYLINDER 8	1
67	118590	PIPE FROM METERING DEVICE TO CYLINDER 1	1
67	118595	PIPE FROM METERING DEVICE TO CYLINDER 6	1
67	118593	PIPE FROM METERING DEVICE TO CYLINDER 4	1
67	118592	PIPE FROM METERING DEVICE TO CYLINDER 3	1
67	118591	PIPE FROM METERING DEVICE TO CYLINDER 2	1
68	115418	SUPPORT CLAMP	1
68	113896	HOSE RETAINER 3 TUBE	1
68	117279	HOSE RETAINER 2 TUBE	2
68	115595	4-WAY PIPE RETAINER	1
69	120801	PIPE	1
70	12601271	WASHER	2
71	12574211	NUT	2
72	117548	CONVEYOR	1
73	120188	UNION 90?	1
74	110381	STRIP	2
74	111193	CLAMP	2
75	120812	AIR SENSOR PLATE	1
76	120809	SUPPORTING WASHER	1
77	113570	FUEL INJECTION SEAL/O-RING	8
78	113309	INJECTOR HOLDING BUSH	8
79	101031	O RING SEAL	8
80	103226	BUSHING	8
81	117646	BY-PASS VACUUM VALVE	1
82	115230	PIPE	1
83	115227	PIPE	1
84	12179590	CLAMP	4
85	115149	RUBBER HOSE	1
86	112030	UNION FOR RESERVOIR BREATHER	1
