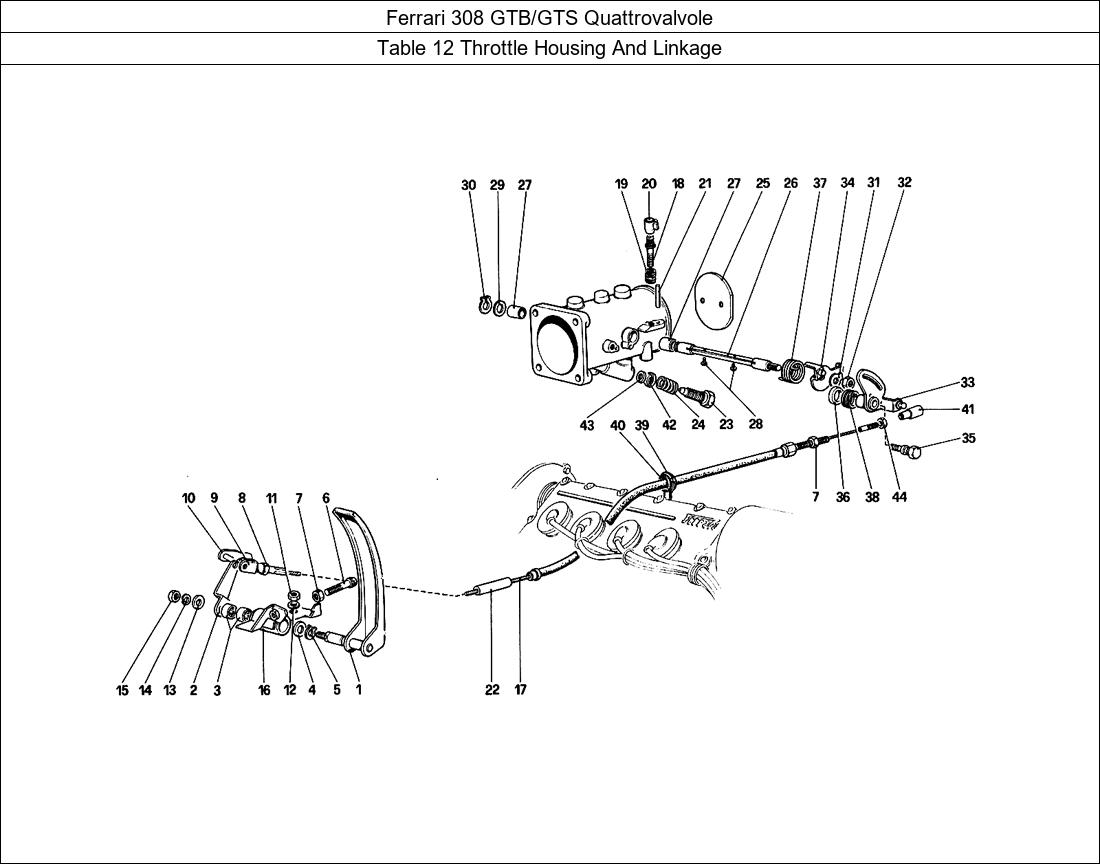

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 12 Throttle Housing And Linkage Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 115393 | ACCELERATOR PEDAL | 1 |
| 2 | 115399 | LEVER | 1 |
| 3 | 101677 | ROLLER CAGE | 2 |
| 4 | 108576 | SHIM | 1 |
| 5 | 11066076 | CIRCLIP | 1 |
| 6 | 105232 | ADJUSTING SCREW | 1 |
| 7 | 16102311 | LOCK NUT | 2 |
| 8 | 10725911 | NUT | 1 |
| 9 | 100655 | CABLE FORK HEAD | 1 |
| 10 | 100656 | LINKAGE CLIP | 1 |
| 11 | 16100811 | NUT | 2 |
| 12 | 106852 | WASHER | 2 |
| 13 | 10519601 | WASHER | 1 |
| 14 | 106852 | WASHER | 1 |
| 15 | 16100811 | NUT | 1 |
| 16 | 115396 | ACCELERATOR PEDAL SUPPORT | 1 |
| 17 | 120260 | THROTTLE CABLE QV/328 | 1 |
| 18 | 114366 | ADJUSTING SCREW | 1 |
| 19 | 107824 | SPRING | 1 |
| 20 | 111182 | ANTI TAMPER PLUG 208,308,328,512 (VARIOUS) | 1 |
| 21 | 114367 | CHECK PIN | 1 |
| 22 | 120027 | CABLE PROTECTION | 1 |
| 23 | 113556 | VITE REGOLAZIONE ARIA | 1 |
| 24 | 113571 | SPRING | 1 |
| 25 | 114851 | THROTTLE | 1 |
| 26 | 114852 | THROTTLE SPINDLE | 1 |
| 27 | 107443 | BUSH | 2 |
| 28 | 115361 | SCREW | 2 |
| 29 | 13550401 | WASHER | 1 |
| 30 | 0 | NYLON LINED THROTTLE CONDUIT - 5MM OD | 1 |
| 31 | 113566 | LOCK WASHER | 1 |
| 32 | 16102321 | NUT | 1 |
| 33 | 118296 | THROTTLE CONTROL LEVER | 1 |
| 34 | 115590 | THROTTLE ADJUST LEVER | 1 |
| 35 | 114863 | LEVER PIN | 1 |
| 36 | 114986 | SPACING WASHER | 1 |
| 37 | 115573 | SPRING | 1 |
| 38 | 118294 | SPRING | 1 |
| 39 | 118809 | SUPPORT PLATE FOR CABLE | 1 |
| 40 | 10396580 | HT LEAD BRACKET GROMMET | 1 |
| 41 | 105617 | HEAD, R.H. THREAD | 1 |
| 42 | 115204 | CAP | 1 |
| 43 | 114919 | O RING SEAL 117 | 1 |
| 44 | 15896411 | NUT | 1 |
