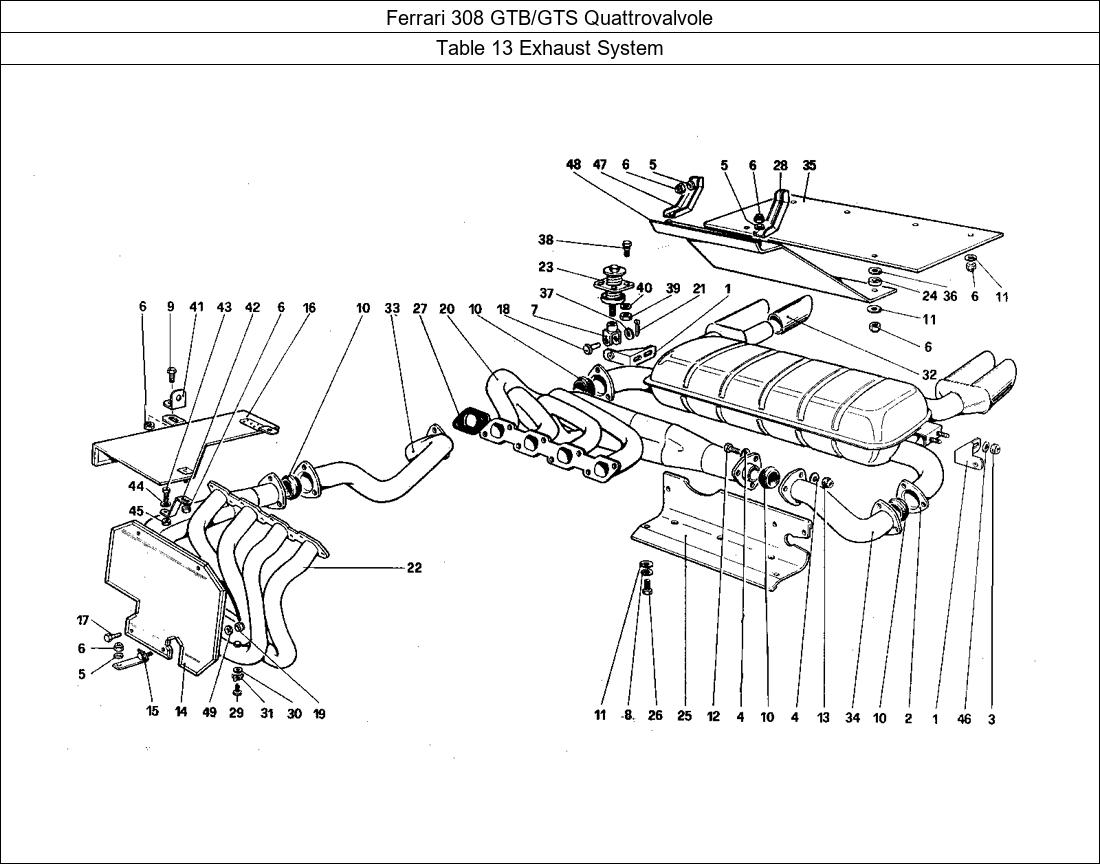

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 13 Exhaust System Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	108290	BRACKET	2
2	118353	SPORT SILENCER 308 QV/MONDIAL QV/MONDIAL 3.2/328	1
3	114748	LOCK NUT 8MM	4
4	10519601	WASHER	24
5	12643701	FLAT WASHER	10
6	116416	NUT	10
7	108257	FORK	2
8	106850	WASHER	14
9	10902121	SCREW	3
10	154984	EXHAUST FLANGE FIRE RING	4
11	106744	WASHER	10
12	119632	SCREW	12
13	114748	LOCK NUT 8MM	12
14	118632	PROTECTION PLATE	1
15	118786	BRACKET	1
16	118612	PROTECTION PLATE	1
17	10902121	SCREW	1
18	10033411	PIN	2
19	15896211	NUT	7
20	118156	EXHAUST MANIFOLD REAR 308 QV/MONDIAL QV/MONDIAL 3.2/328	1
21	10796401	COTTER PIN	2
22	118155	EXHAUST MANIFOLD FRONT 308 QV/MONDIAL QV/MONDIAL 3.2/328	1
23	106052	EXHAUST MOUNTS	2
24	119201	SPACER	2
25	118783	EXHAUST HEAT SHEILD 308	1
26	10902021	SCREW	4
27	147705	EXHAUST GASKET 4V	8
28	118603	LEFT BRACKET	1
29	110860	PLUG. CO SAMPLING HEADER BLOCK OFF	8
30	10298460	SEAL WASHER/GASKET	8
31	14198901	LOCKING PLATE	8
32	118774	TERMINAL	4
33	118157	CENTRE PIPE RH 308 QV/MONDIAL QV/MONDIAL 3.2/328	1
34	118158	CENTRE PIPE LH 308 QV/MONDIAL QV/MONDIAL 3.2/328	1
35	119200	PROTECTION PLATE	1
36	105924	INSULATING WASHER	2
37	103167	WASHER	2
38	10977621	SCREW	8
39	15896411	NUT	8
40	106849	WASHER	8
41	118618	BRACKET	1
42	118619	BRACKET	1
43	16043421	SCREW	1
44	106852	WASHER	1
45	16100811	NUT	1
46	10519601	WASHER	4
47	118602	RIGHT BRACKET	2
48	118495	PROTECTION PLATE	1
49	12643701	FLAT WASHER	4
