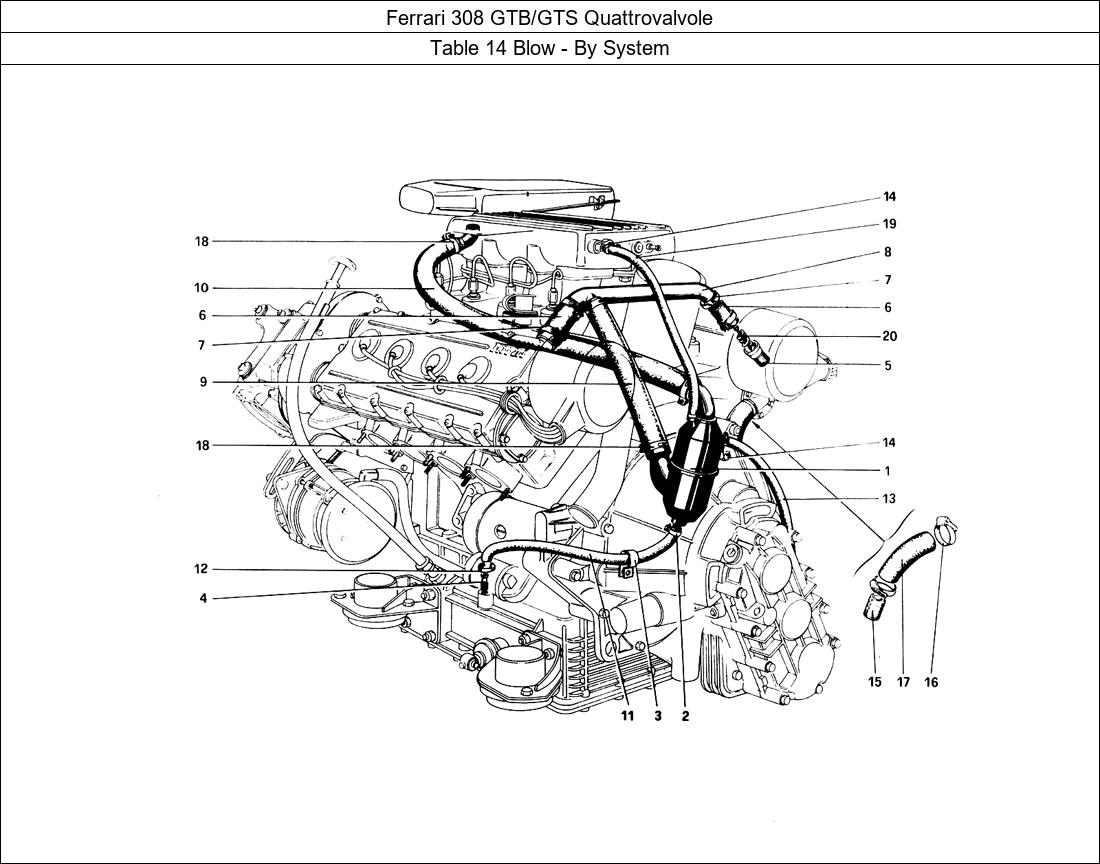

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 14 Blow - By System Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 118478 | OIL VAPOUR SEPARATOR | 1 |
| 1 | 126032 | OIL SEPARATOR | 1 |
| 2 | 10168790 | CLAMP | 1 |
| 3 | 10450490 | CLAMP ? 16 MM | 1 |
| 4 | 115934 | UNION | 1 |
| 5 | 119236 | UNION | 1 |
| 6 | 116783 | SLEEVE | 2 |
| 7 | 10169090 | CLAMP | 4 |
| 8 | 118312 | 3 WAY PIPE | 1 |
| 9 | 118958 | TUBE FROM 3 - WAY PIPE TO VAPOUR SEPARATOR | 1 |
| 10 | 118959 | TUBE FROM VAPOUR SEPARATOR TO | 1 |
| 11 | 106338 | BODY VENT TUBE CUP ALIA | 1 |
| 12 | 10168890 | CLAMP | 1 |
| 13 | 115366 | BREATHER PIPE | 1 |
| 14 | 12179090 | CLAMP | 4 |
| 15 | 102705 | UNION | 1 |
| 16 | 10169290 | CLAMP | 2 |
| 17 | 118960 | HOSE | 1 |
| 18 | 10169290 | CLAMP | 4 |
| 19 | 111199 | HOSE FROM SEPARATOR TO AIR INTAKE | 1 |
| 20 | 119237 | SPLASH GUARD | 2 |
