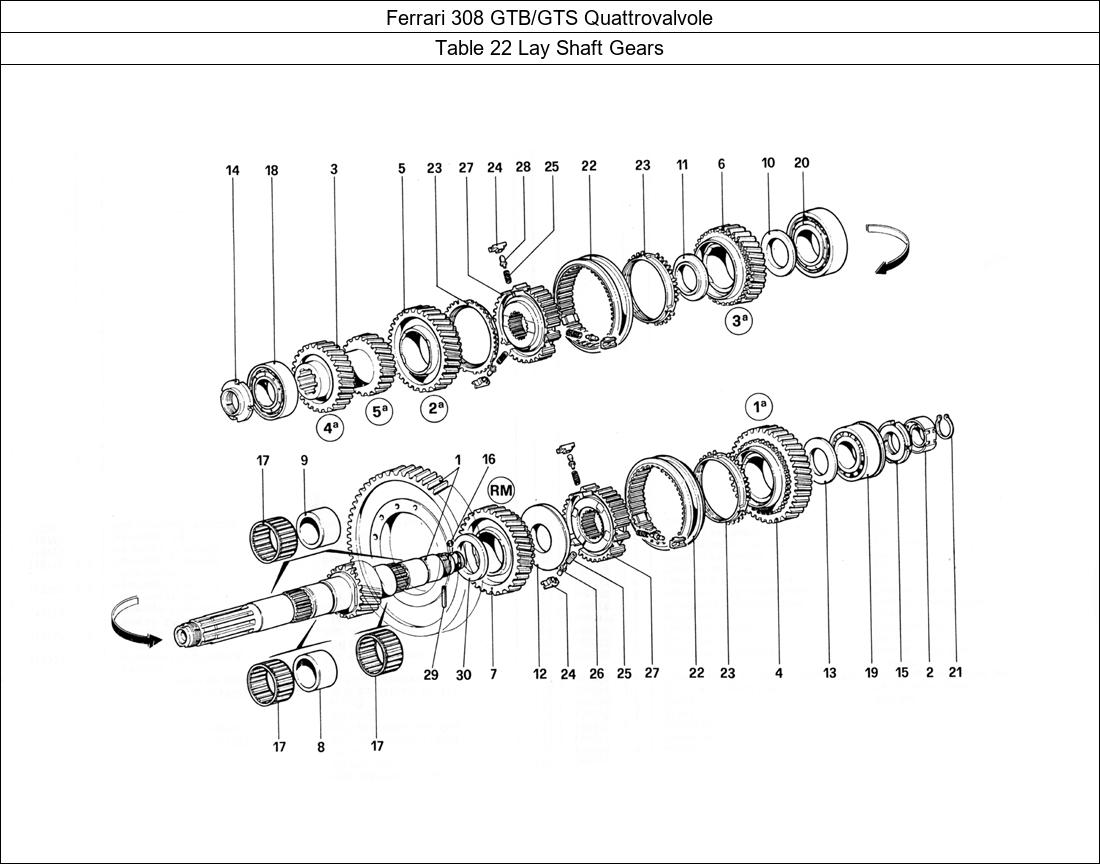

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 22 Lay Shaft Gears Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 119763 | CROWN AND PINION, COMPLETE | 1 |
| 1 | 119761 | LAYSHAFT | 1 |
| 1 | 119748 | CROWN AND PINION | 1 |
| 1 | 119741 | DIFFERENTIAL CROWN | 1 |
| 2 | 116352 | DISC FOR PULSE GENERATOR | 1 |
| 3 | 119707 | GEAR, 4TH - 5TH SPEEDS | 1 |
| 3 | 119742 | GEAR, 4TH - 5TH SPEEDS | 1 |
| 4 | 119715 | GEAR, 1ST SPEED | 1 |
| 4 | 119745 | GEAR, 1ST SPEED | 1 |
| 5 | 119716 | GEAR, 2ND SPEED | 1 |
| 6 | 119717 | 3RD GEAR GROUND 308 GTB | 1 |
| 7 | 119720 | GEAR, REVERSE | 1 |
| 8 | 113083 | BEARING RACE, 3RD SPEED | 1 |
| 9 | 113084 | TRACK ROLLER FOR 1ST AND 2ND SPEED | 2 |
| 10 | 104245 | SPACER | 1 |
| 11 | 104246 | SPACER | 1 |
| 12 | 104247 | SPACER | 1 |
| 13 | 104248 | SPACER | 1 |
| 14 | 104252 | RING NUT | 1 |
| 15 | 104253 | RING NUT | 1 |
| 16 | 101611 | BALL | 1 |
| 17 | 104254 | 2ND GEAR ROLLER CAGE | 4 |
| 18 | 104257 | BEARING 4DAPV-N207 | 1 |
| 19 | 103042 | BEARING 613744D | 1 |
| 20 | 108657 | CENTRAL BEARING | 1 |
| 21 | 11067376 | RING | 1 |
| 22 | 106038 | SLEEVE FOR SYNCHRONIZER | 2 |
| 23 | 106040 | SYNCHROMESH RING | 3 |
| 24 | 106042 | INSERT FOR SYNCHRONIZER | 6 |
| 25 | 106043 | SPRING FOR PINS | 6 |
| 26 | 106044 | PIN FOR INSERT | 3 |
| 27 | 106050 | SYNCHRONIZER BODY | 2 |
| 28 | 113412 | PAWL FOR SYNCHRONIZER | 3 |
| 29 | 13907570 | PIN | 1 |
| 30 | 108096 | WASHER | 1 |
