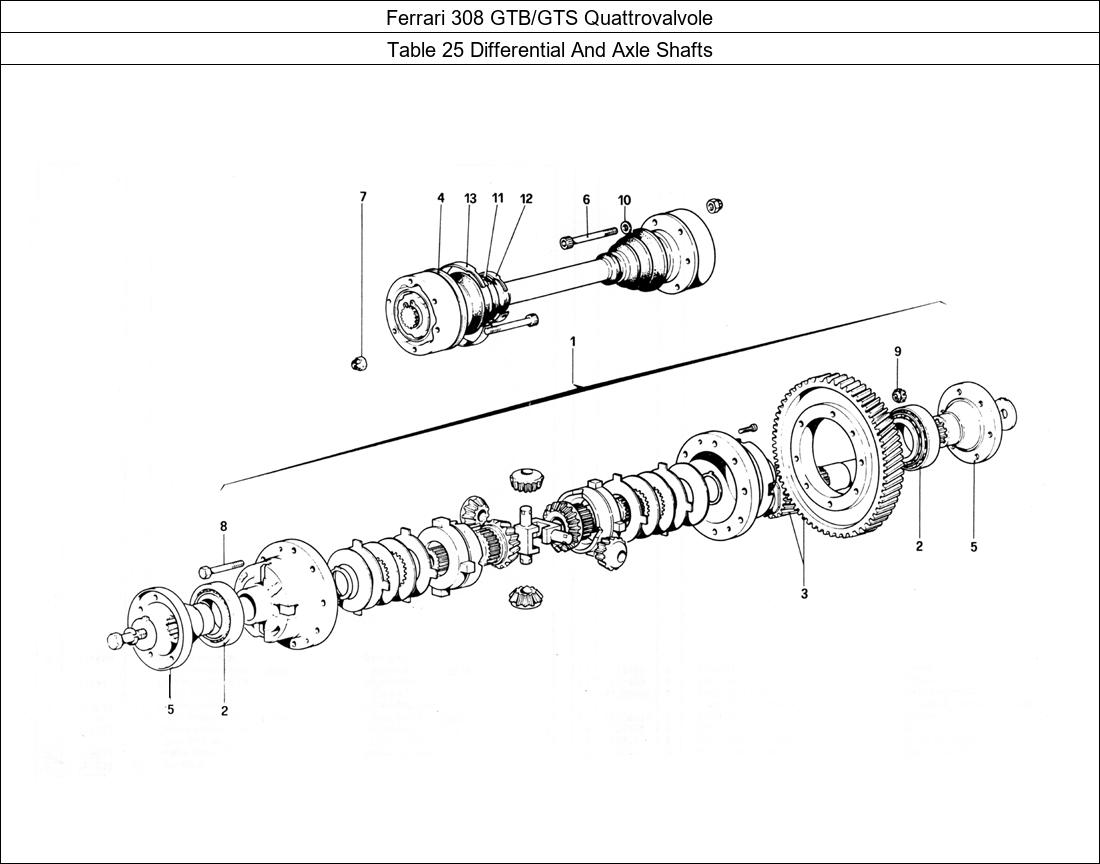

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 25 Differential And Axle Shafts Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 106769 | DIFFERENTIAL | 1 |
| 2 | 101634 | DIFF TAPER ROLLER BEARING 275 | 2 |
| 2 | 101634 | BEARING | 2 |
| 3 | 119763 | CROWN AND PINION, COMPLETE | 1 |
| 3 | 119762 | DIFFERENTIAL CROWN | 1 |
| 3 | 119748 | CROWN AND PINION | 1 |
| 3 | 119747 | DIFFERENTIAL CROWN | 1 |
| 4 | 103885 | AXLE SHAFT | 2 |
| 5 | 119377 | FLANGE | 2 |
| 6 | 101632 | AXLE SHAFT BOLT | 24 |
| 7 | 101633 | AXLE SHAFT NUT | 24 |
| 8 | 106777 | SCREW FOR CROWN | 8 |
| 9 | 104011 | BIG END NUT 250 | 8 |
| 9 | 104011 | DO NOT USE - SEE RP11450N | 8 |
| 9 | 104011 | CON ROD NUT | 8 |
| 10 | 12638621 | WASHER | 6 |
| 11 | 95860404 | AXLE BOOT | 4 |
| 11 | 95860404 | DRIVE SHAFT GAITOR 208 GTB/GTS 288 GTO 308 GT4 328 GTB/GTS 365 GTB4/GTS4 400 GT I 512 BB BBI, F40 | 4 |
| 11 | 95860404 | DRIVE SHAFT RUBBER BOOT KIT 365,512 | 4 |
| 12 | 117956 | CV35 CV BOOT CLAMP BELMETRIC | 4 |
| 13 | 117957 | CV74 CV BOOT CLAMP BELMETRIC | 4 |
