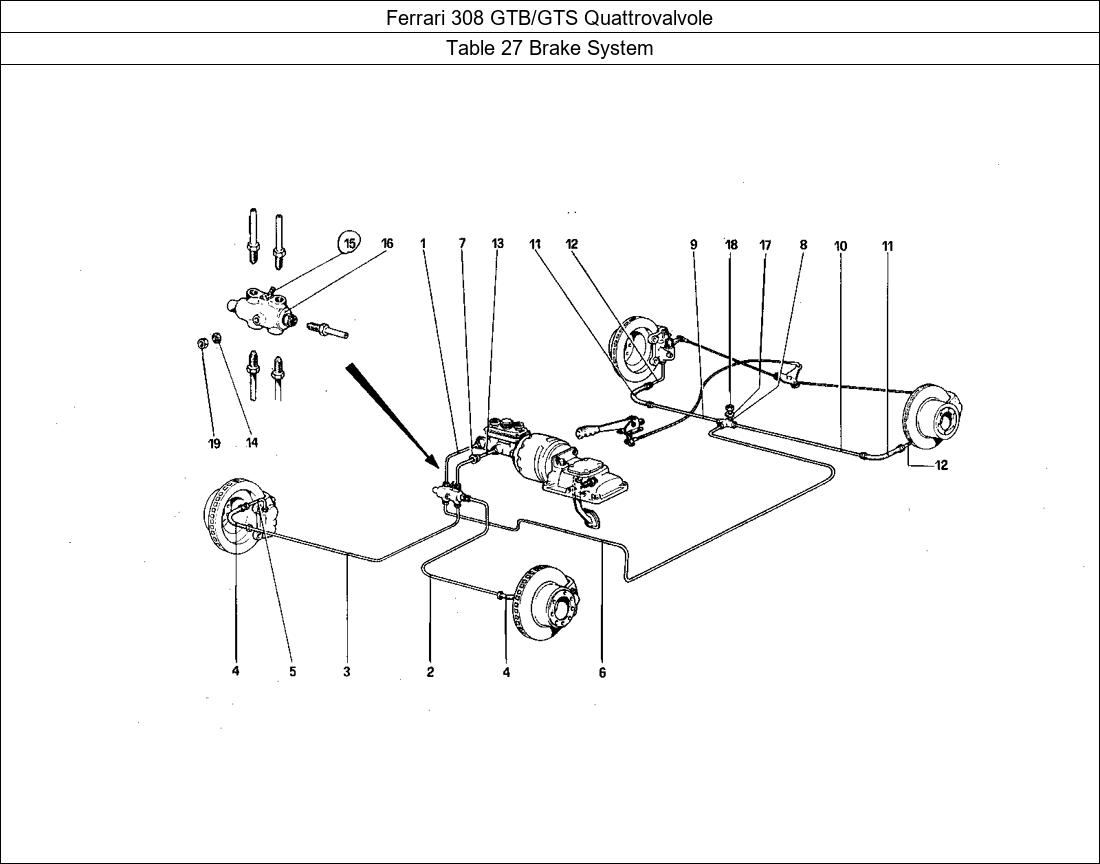

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 27 Brake System Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 101407 | THE BRAKE HOSE BRAKE CIRCUIT AFTER THE WARNING INEFFICIENCY. | 1 |
| 2 | 105850 | PIPE TO L.H. FRONT BRAKE HOSE | 1 |
| 3 | 104469 | TUBE CIRCUIT FRONT RIGHT | 1 |
| 4 | 116489 | BRAKE HOSE FRONT 308 I/QV | 2 |
| 5 | 106671 | FLEXIBLE HOSE FROM THE CALIPER | 2 |
| 6 | 117344 | BRAKE PIPE | 1 |
| 7 | 105369 | CABLE GROMMET | 1 |
| 8 | 101394 | 3 WAY UNION | 1 |
| 9 | 104470 | 3 WAYS TO FLEXIBLE HOSE FROM THE RIGHT | 1 |
| 10 | 106672 | 3 WAYS TO FLEXIBLE HOSE FROM. SPOOKY | 1 |
| 11 | 116491 | BRAKE HOSE | 2 |
| 12 | 101401 | FROM THE VACUUM TUBE VALVE | 1 |
| 13 | 105278 | ALIA THE BRAKE HOSE VALVE PRESSURE SEGNALATRICE - CIRCULTO FRONT | 1 |
| 14 | 106850 | WASHER | 1 |
| 15 | 108955 | ELECTRIC INDICATOR | 1 |
| 16 | 108803 | BRAKE FAILURE INDICATOR (LHD) … | 1 |
| 17 | 12639701 | WASHER | 1 |
| 18 | 12574211 | NUT | 1 |
| 19 | 15896211 | NUT | 1 |
