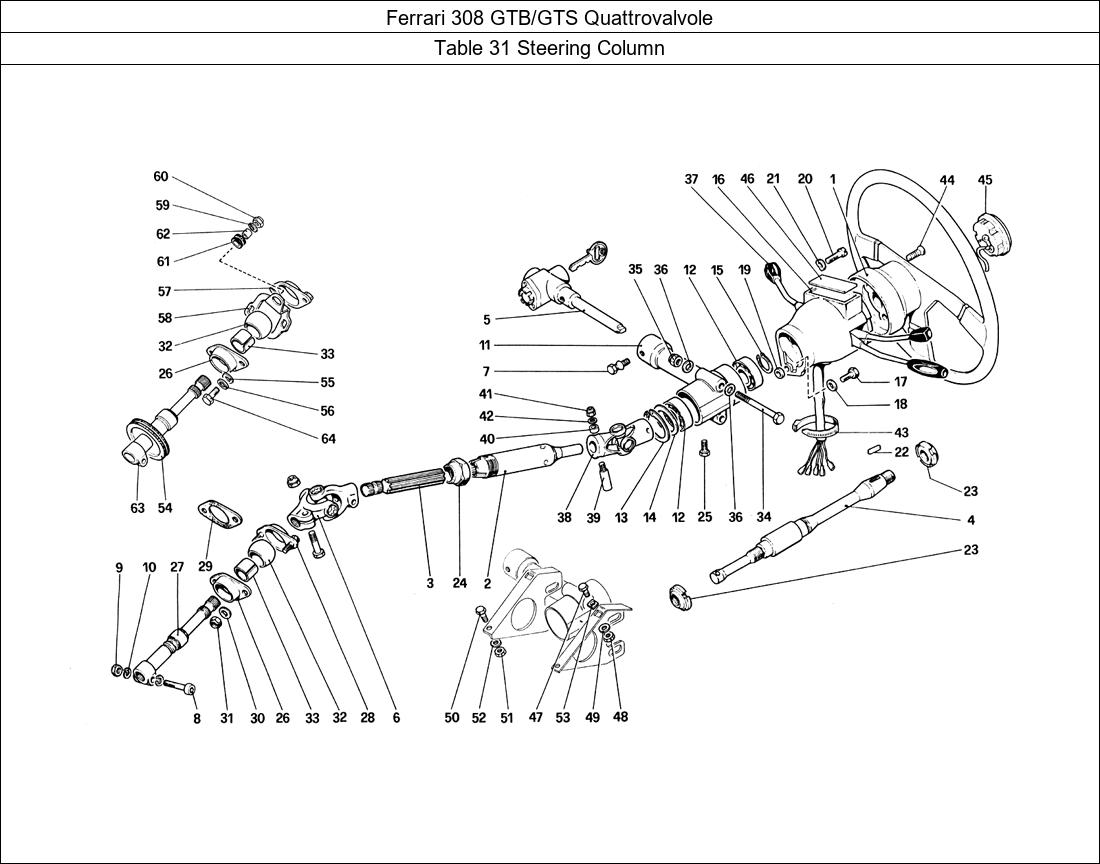

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 31 Steering Column Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	119023	STEERING WHEEL COMPLETE	1
2	108735	RONDELLA	1
3	108737	LOWER STEERING SHAFT	1
4	108413	STEERING SHAFT 308 GTB/GTS, 512 BBI	1
5	127298	IGNITION LOCK TUMBLER	1
6	108362	BALL JOINT	1
7	106615	SCREW	1
8	125518	SCREW	1
9	125519	NUT	1
10	12601271	WASHER	2
11	106611	SHAFT SUPPORT	1
12	101104	SEALED BALL RACER BEARING (25X52X15)	2
13	11060576	SNAP RING	1
14	107488	SHIM 0.4 MM	1
14	107489	WASHER TH. MM. 0,3	1
14	107490	WASHER TH. MM. 0,2	1
14	101101	WASHER 0.5MM	1
15	11067376	RING	1
16	120429	MAIN SWITCH HOUSING	1
17	10902221	SCREW	1
18	12601271	WASHER	1
19	12639701	WASHER	1
20	10389901	SCREW	2
21	12544171	WASHER	2
22	101106	KEY	1
23	106610	RING NUT	2
24	106870	STEERING TUBE NUT 208 GT4 308 GT4	1
25	10979421	SCREW	1
26	103292	FLANGE	1
27	107308	STEERING COLUMN EXTENSION DINO	1
28	105667	FLANGE BALL JOINT TOP	1
29	109173	GASKET	1
30	16104121	SELFLOCKING NUT	2
31	10519621	FLAT WASHER	2
32	103297	BALL	1
33	103370	BUSH	1
34	103576	SCREW	2
35	16104421	SELFLOCKING NUT	2
36	10519621	FLAT WASHER	4
37	118303	MAINSWITCH	1
38	112572	UPPER JOINT	1
39	112573	TAPER PIN	2
40	112571	SPACER	2
41	12574221	DADO AUTOBLOCCANTE	2
42	10519401	WASHER	2
43	103755	CLAMP	1
44	111189	SCREW	6
44	111189	BELL HOUSING INSPECTION PLATE SCREW 360	6
45	101071	HORN PUSH BUTTON WITH HOLDER	1
46	120434	CAR IDENTIFICATION PLATE	1
47	10902121	SCREW	2
48	15896211	NUT	2
49	106850	WASHER	2
50	16043221	SCREW	2
51	16100811	NUT	2
52	106852	WASHER	2
53	106425	PLATE	2
54	112466	RUBBER GROMMET FOR PEDAL SHAFT AT FIREWALL	1
55	106850	WASHER	2
56	10519401	WASHER	2
57	123683	UPPER FLANGE	1
58	123682	MOUNTING FOR JOINT	1
59	12643701	FLAT WASHER	2
60	12574211	NUT	2
61	103549	CABLE GROMMET	2
62	103550	SPACER	2
63	123522	PINION EXTENSION	1
64	10902321	SCREW 6X18	2
