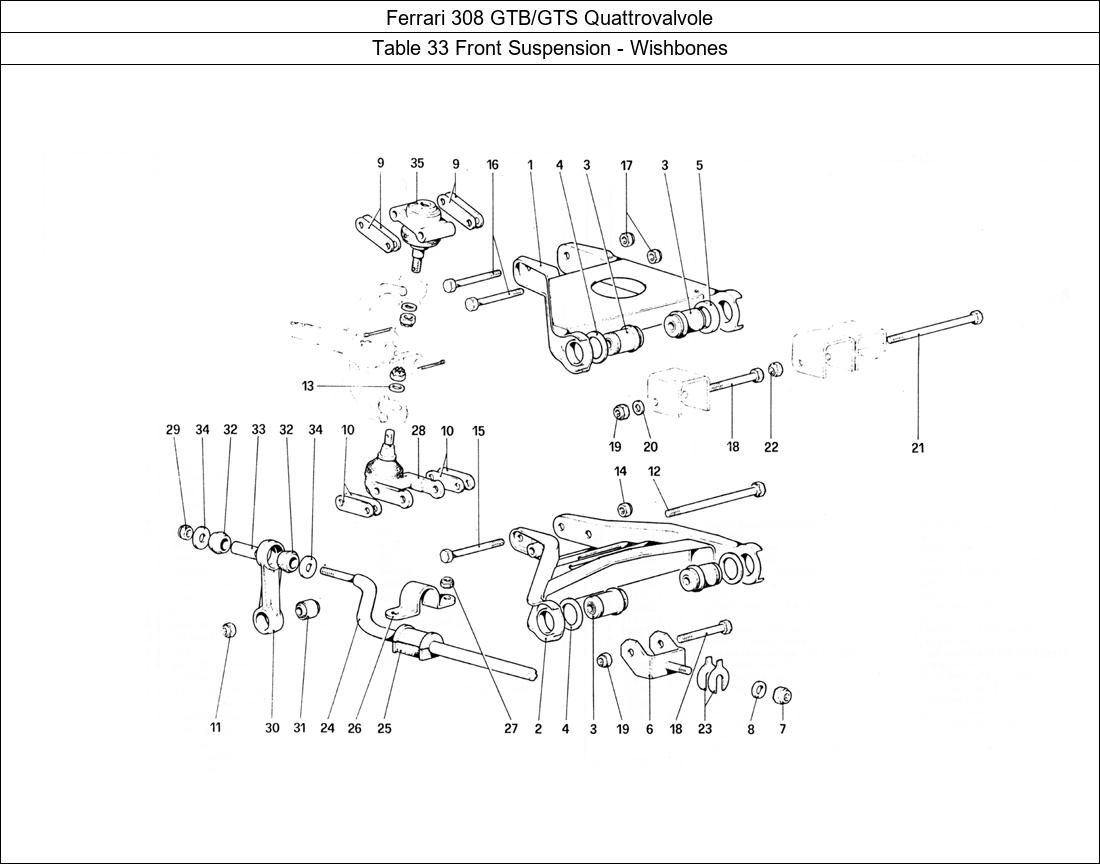

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 33 Front Suspension - Wishbones Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	104392	UPPER LEVER, RIGHT	1
1	104393	UPPER LEVER, LEFT	1
2	104401	LOWER LEVER, RIGHT	1
2	104402	LH LOWER WISHBONE	1
3	104398	FLAMBLOCK FOR LEVERS	8
4	104399	SPACER WASHER	6
5	104400	FASCETTA	2
6	104409	FORK	4
7	12575821	SELFLOCKING NUT	4
8	101041	WASHER	4
9	103256	PLATE	8
10	640586	SHIM FRONT WISHBONE 1.5MM 365 GTC 400I	8
11	16105121	SELFLOCKING NUT	2
12	107886	ANTI ROLL BAR DROP LINK BOLT	2
13	101445	WASHER	2
14	12574521	UPPER AND LOWER FRONT BALL JOINT NUT 246	2
15	15971621	SCREW	2
16	15971421	SCREW	4
17	12574521	UPPER AND LOWER FRONT BALL JOINT NUT 246	4
18	106419	INNER WISHBONE BOLT 246	6
19	16105121	SELFLOCKING NUT	6
20	106426	WASHER	2
21	105901	SCREW	2
22	16105121	SELFLOCKING NUT	2
23	107025	WASHER	8
23	107418	SHIM 1.5 MM	8
23	107419	SHIM 2 MM	8
23	107420	SHIM 2.5 MM	8
23	107421	SHIM 3 MM	8
23	107422	SHIM 3.25 MM	8
24	105053	ANTI ROLL BAR	1
25	108746	SWAY BAR "D" MOUNT BUSHING 18MM	2
26	106577	PAD FOR ROD	2
27	12575621	SELFLOCKING NUT	4
28	114462	LOWER BALL JOINT	2
29	16105121	SELFLOCKING NUT	2
30	108431	BISCOTTINO PER BARRA	2
31	100773	ANTI-ROLL BAR DROP LINK BUSH 250	2
32	100984	ANTI-ROLL BAR RUBBER	4
33	108998	ANTI-ROLL BAR DROP LINK INNER SLEEVE 365/512	2
34	105334	WASHER	4
35	116280	BALL JOINT TOP/UPPER 275	2
