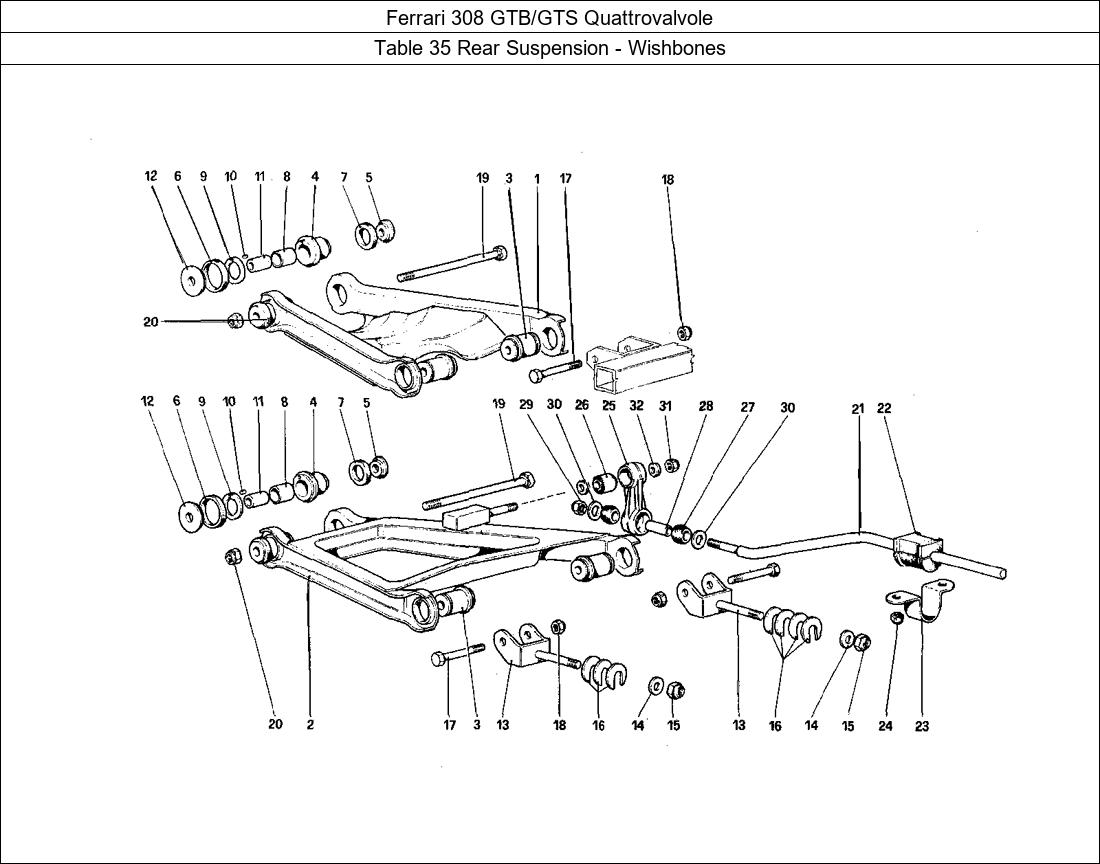

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 35 Rear Suspension - Wishbones Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	104423	UPPER LEVER, RIGHT	1
1	104422	UPPER LEVER, LEFT	1
2	104428	LEVER	1
2	104429	LEVER	1
3	103170	WISHBONE BUSH 288/308	8
4	105340	BUSH	8
5	105341	SUSPENSION SEAL	8
6	105342	SUSPENSION SEAL	8
7	105343	SUSPENSION SEAL	8
8	100787	WISHBONE OUTER BUSH 308	8
9	101009	SUSPENSION WASHER	8
9	101009	REAR SUSPENSION THRUST WASHER 275	8
10	100796	SUSPENSION DOWEL PIN	8
11	109905	DISTANZIALFL	8
12	109902	RONDALLA DI RASAMENTO	8
13	114236	REAR SUSPENSION FORK 208/308GTB/S QV	4
14	101041	WASHER	4
15	12575821	SELFLOCKING NUT	4
16	107342	SHIM 3,25 MM. THICKNESS	12
16	107338	SHIM 1,5 MM. THICK	12
16	101039	SUSPENSION SHIM 1MM	12
16	101039	SUSPENSION SHIM 1MM	12
16	107339	SUSPENSION SHIM 2MM	12
16	107339	SUSPENSION SHIM 2MM	12
16	107340	SUSPENSION SHIM 2.5MM	14
16	107340	SUSPENSION SHIM 2.5MM	14
16	107341	SUSPENSION SHIM 3MM	12
16	107341	SUSPENSION SHIM 3MM	12
17	106419	INNER WISHBONE BOLT 246	8
18	16105121	SELFLOCKING NUT	8
19	105344	BOLT	4
20	16105121	SELFLOCKING NUT	4
21	108841	STABILIZER ROD	1
21	112872	STABILIZER ROD	1
22	108748	FRONT ANTI-ROLL BAR D RUBBER	2
22	109010	SWAY BAR "D" MOUNT BUSHING 15MM	2
23	104417	ANTI-ROLL BAR BRACKET	2
23	104417	SWAY BAR MOUNT BRACKET	2
24	12575621	SELFLOCKING NUT	4
25	108432	BAR LINK	2
26	100773	ANTI-ROLL BAR DROP LINK BUSH 250	2
27	108244	CONED BUSHING	4
27	107335	SWAY BAR "CONED" BUSHING	4
27	0	DO NOT USE - SEE GE00031N	4
28	108294	SPACER TUBE	2
29	16104421	SELFLOCKING NUT	2
29	12575621	SELFLOCKING NUT	2
30	112873	WASHER	4
30	112874	WASHER	4
30	107409	GROMMET RETAINING WASHER	4
31	16105121	SELFLOCKING NUT	2
32	108913	SHIM	4
