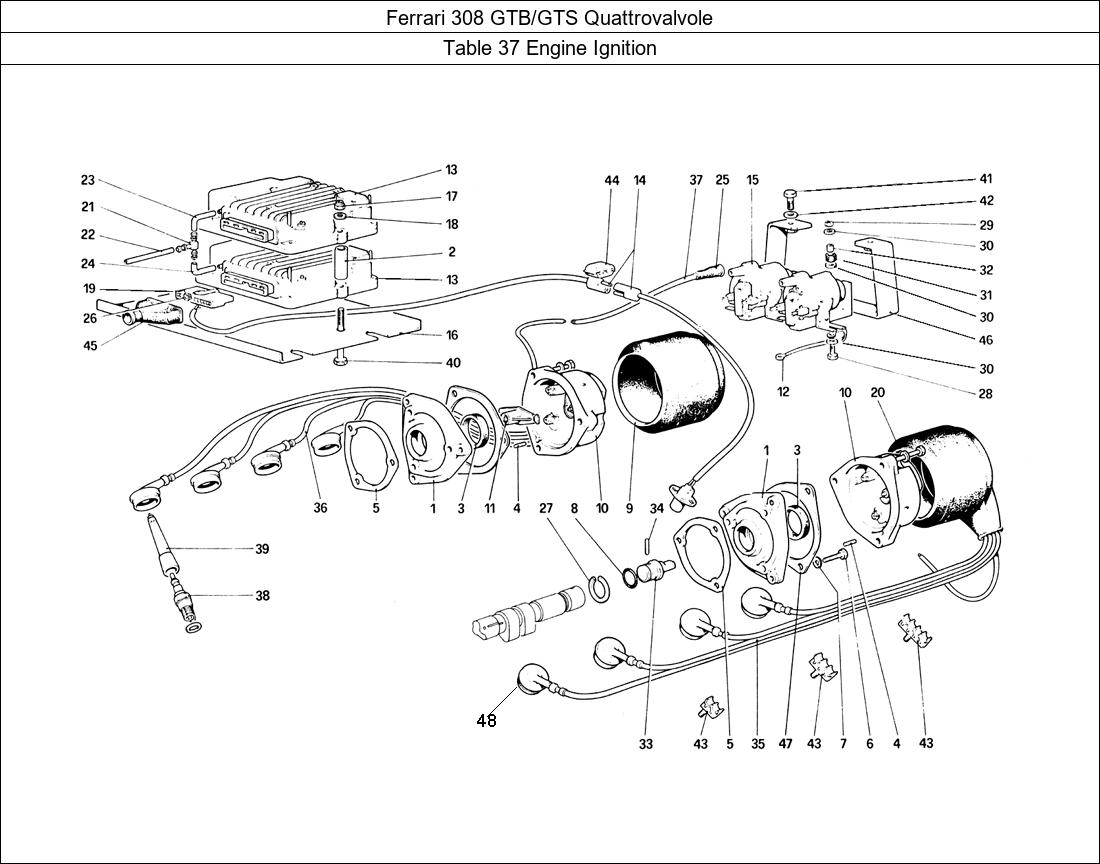

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 37 Engine Ignition Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	119399	CAP DISTRIBUTOR SUPPORT	1
2	117556	DISTANZIALE PER CENTRALINE	3
3	117293	OIL SEAL 25/35/8.5	2
4	10331111	DOWEL	2
5	150198	GASKET	2
6	10902321	SCREW 6X18	2
7	11197771	WASHER BELLVILLE 6MM	2
7	11197771	CAM COVER WASHER	2
8	109478	O-RING	2
9	112043	R.H. DISTRIBUTOR BOOT	1
10	115518	DISTRIBUTOR CAP	2
11	124288	IGNITION ROTOR ARM V12 8MM	2
12	115648	COPPER BRAID FOR IGNITION COIL EARTH	1
13	118451	ELECTRONIC IGNITION MODULE	2
14	119052	SENSOR TDC FLYWHEEL PICKUP	3
15	115013	IGNITION COIL	2
16	117555	PIASTRA FISSAGGIO CENTRALINA	1
17	12574211	NUT	6
18	12601271	WASHER	6
19	115598	11 WAY BLOCK	2
20	110626	L.H. DISTRIBUTOR BOOT	1
21	107440	3 WAY UNION	1
22	115665	3-WAY HOSE FROM THE BODY AIR DELIVERY TO COLLECTORS	1
23	115666	RUBBER'HOSE	1
24	115149	RUBBER HOSE	1
25	12056986	BOOT	2
26	60909700	SMALL CLIP OF SECURITY	2
27	119484	CENTRIFUGER RING	2
28	10902621	SCREW	3
29	12575411	NUT	3
30	12643701	FLAT WASHER	9
31	103549	CABLE GROMMET	2
32	103550	SPACER	3
33	117934	COUPLING	2
34	13899970	ROLL PIN 308 QV	2
35	118826	IGNITION WIRE SET 1-4	1
36	118827	IGNITION WIRE SET 5-8	1
37	119356	HT COIL LEAD MONDIAL ( RED ) RIGHT	2
38	117599	SPARK PLUG	8
38	119492	SPARK PLUG N6YCC	8
39	115647	SPARK PLUG EXTENSION BLACK 100MM 2V/QV	8
40	11032321	SCREW	3
41	16043121	SCREW	2
42	10615671	WASHER	2
43	119402	SPRING	4
43	119403	SPRING	2
43	119404	SPRING	2
43	121790	2 WIRE CLIP QV	2
43	121789	3 WIRE CLIP QV	2
43	121788	4 WIRE CLIP QV	5
44	117429	COVERAGE OF RECOGNITION SENSOR 5/8 PM	1
44	117430	IDEM PER SENSOR PM 1/4	1
45	115550	PROTECTION COVER FOR SMALL BLOCK	2
46	115646	STAFFA SUPPORTO BOBINE	1
47	119409	DISTRIBUTOR GASKET	2
47	119409	GASKET DIST. CORK	2
48	140567	DISTRIBUTOR CAP BRUSH & SPRING	2
