Home > Ferrari Parts 308 GTB/GTS Quattrovalvole Table 38 Electric Generating System (Engine With Single Belt) Parts

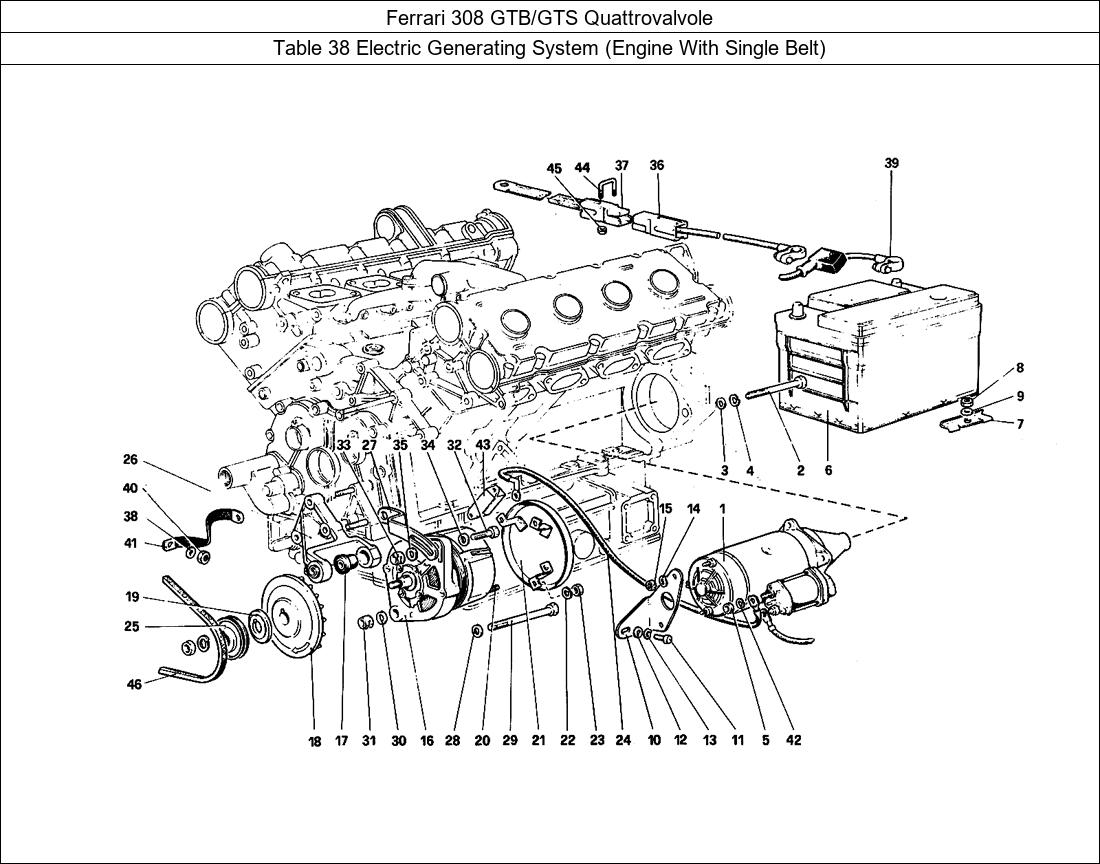

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 38 Electric Generating System (Engine With Single Belt) Parts

LOCPart NumberDescription (Click to View)QTY
1106966STARTER MOTOR1
1120967STARTER MOTOR BOSCH1
216045121FIXING BOLT3
311198071WASHER3
410519621FLAT WASHER3
516100811NUT1
61180601 2 V - 66 AH - 300 A BATTERY1
7106525BATTERY HOLD DOWN BRACKET (328)1
816100811NUT1
9106852WASHER1
10107129SUPPORT BRACKET1
1115970721BOLT1
12105391WASHER1
13106853WASHER1
14106850WASHER2
1515896211NUT2
16117967ALTERNATOR 308/BB/BBI1
17117969ELASTIC BUSH2
18117968FAN1
19114305WASHER1
2011499921STUD3
21117978PROTECTION PLATE1
22106850WASHER3
2315896221NUT3
24118078GENERATOR CONNECTING CABLES1
25117938PULLEY1
26117924SUPPORT FOR ALTERNATOR1
27117937PLATE FOR REGULATION1
2813550421WASHER1
2915972221BOLT1
3012601471WASHER1
31117702NUT1
3211343821SCREW1
33117702NUT1
3413550421WASHER1
35105391WASHER1
36115660COLLEGAMENIO BATTERY CABLE TO GROUND1
37115667BATTERY CUT COPPER BRAID - MASS TEIAIO1
3810615671WASHER1
39120082CABLE FROM BATTERY TO STARTER1
4016100821NUT1
41115668EARTHING PLAIT FOR ENGINE1
4210516670WASHER1
43107396VOLTAGE REGULATOR1
44116591POS. CABLE FASTENING U BOLT1
4512574011SELF LOCKING NUT1
46107971DRIVE BELT 7M10001
