Home > Ferrari Parts 308 GTB/GTS Quattrovalvole Table 39 Electric Generating System (Engine With 2 Individual Belts) Parts

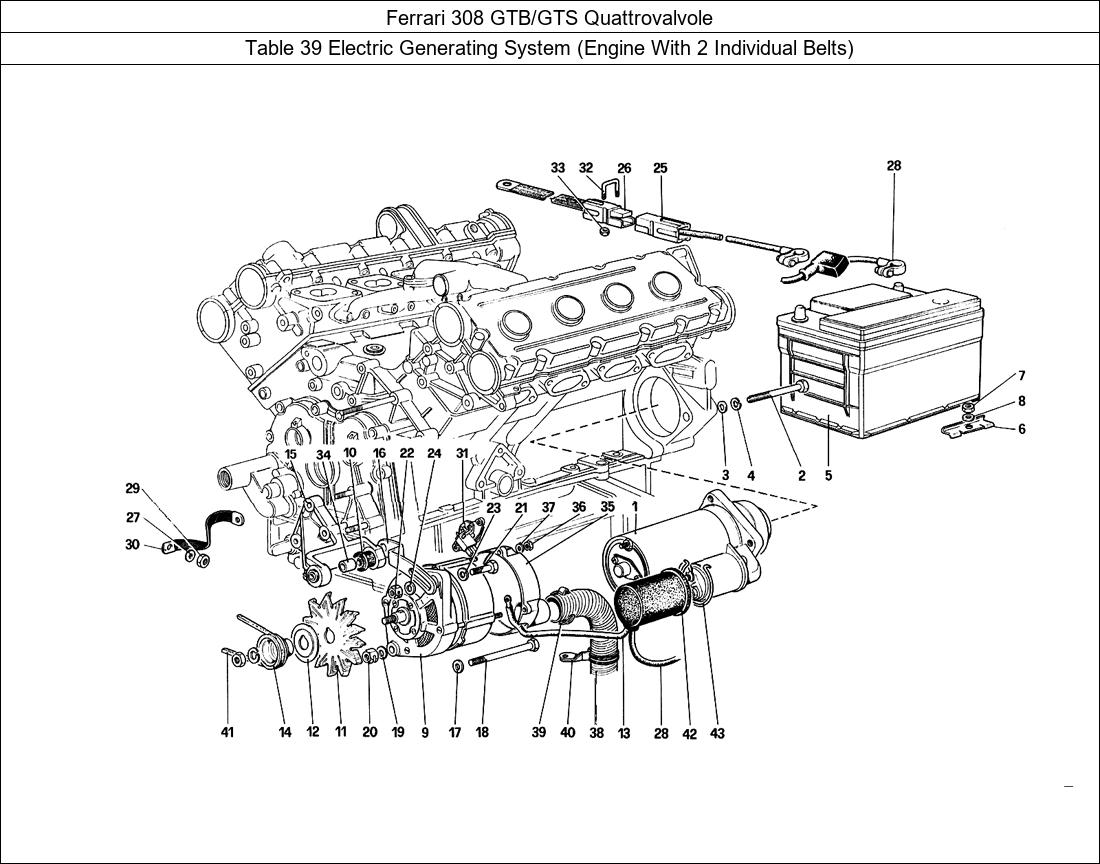

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 39 Electric Generating System (Engine With 2 Individual Belts) Parts

LOCPart NumberDescription (Click to View)QTY
1106966STARTER MOTOR1
1120967STARTER MOTOR BOSCH1
216045021SCREW3
311198071WASHER3
410519621FLAT WASHER3
51180601 2 V - 66 AH - 300 A BATTERY1
6106525BATTERY HOLD DOWN BRACKET (328)1
716100811NUT1
8106852WASHER1
9121761ALTERNATOR BOSCH 85A1
10117969ELASTIC BUSH2
11118802FAN1
12114305WASHER1
13121188GENERATOR CONNECTING CABLES1
14123708PULLEY1
14118803PULLEY1
15117924SUPPORT FOR ALTERNATOR1
16117937PLATE FOR REGULATION1
1713550421WASHER1
1815972221BOLT1
1815972921BOLT1
1912601471WASHER1
20117702NUT1
2111343821SCREW1
22117702NUT1
2313550421WASHER1
24105391WASHER1
25115660COLLEGAMENIO BATTERY CABLE TO GROUND1
26115667BATTERY CUT COPPER BRAID - MASS TEIAIO1
2710615671WASHER1
28120082CABLE FROM BATTERY TO STARTER1
2916100821NUT1
30115668EARTHING PLAIT FOR ENGINE1
31121840VOLTAGE REGULATOR1
32116591POS. CABLE FASTENING U BOLT1
3312574011SELF LOCKING NUT2
34124678BUSH1
35121837AIR CONVEYOR1
3615896421NUT1
3712601171WASHER4
38121190PIPE1
39102958CLAMP1
40121839CLAMP1
41123709ALTERNATR BELT1
42113990STARTER MOTOR BOOT 512BB1
4314560287CLAMP1
