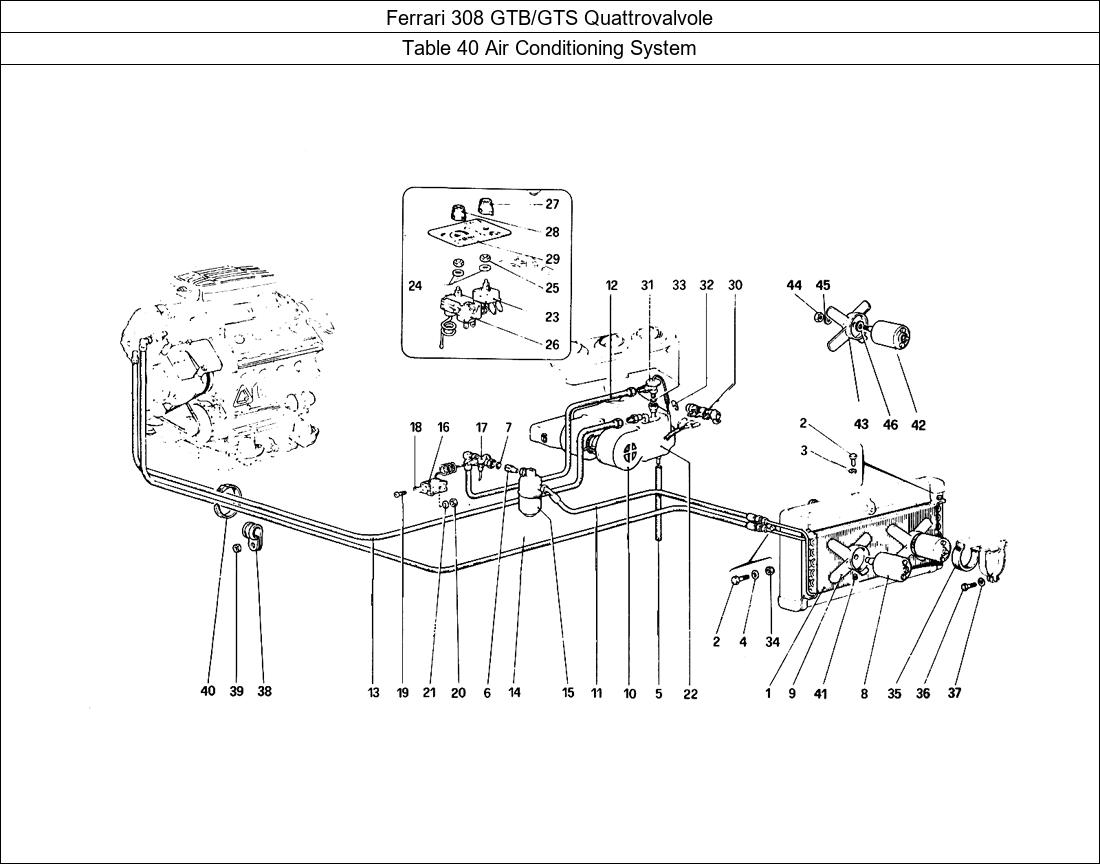

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 40 Air Conditioning System Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	106697	CONDENSOR	1
2	10902121	SCREW	5
3	10516477	RONDELLA	4
4	12643701	FLAT WASHER	1
5	106710	TUBO SCARICO CONDENSA	1
6	107402	UNION	1
7	103039	O-RING	1
8	119447	RADIATOR FAN MOTOR W/BLADE 308	2
9	122957	4 BLADE FAN	2
10	109039	GRUPPO VENTILATORE	1
11	109322	TUBE Ø 3/8 "FROM THE CONDENSER CLEANER	1
12	109867	THE PIPE CLEANER ALL''EVAPORATORE	1
13	109868	HOSE EVAPORATOR	1
13	121119	PIPE F 5/8" EVAPORATOR TO COMPRESSOR	1
13	110964	HOSE EVAPORATOR-COMPRESSOR	1
14	110367	PIPE FROM COMPRESSOR TO CONDENSER	1
15	106647	AC DRYER 308	1
16	107213	GRUPPO PRESSOSTATO COMPLETO	1
17	106646	RACCORDO PER PRESSOSTATO	1
18	106498	SUPPORT	1
19	110105	SCREW	3
20	15896211	NUT	2
21	12601278	WASHER	2
22	60183605	GROUP AIR CONDITIONER COMPLETE	1
22	109818	EVAPORATORE COMPLETE	1
22	60361003	GROUP AIR CONDITIONER COMPLETE	1
22	112121	EVAPORATOR UNIT, COMPLETE	1
23	101990	COMMUTATORE	1
24	107144	RONDELLA	2
25	105911	DADO	1
26	109819	AIR CON SWITCH THERMOSTAT DINO 246	1
27	105908	FAN SPEED KNOB	1
28	105907	AC KNOB	1
29	109820	PLATE	1
30	107142	A/C SPEED TRANSISTOR	1
31	106644	VALVOLA ESPANSIONE	1
32	105905	FASCETTA PER BULBO	1
33	107216	O-RING	1
34	12574211	NUT	1
35	111872	ANELLO ANTIVIBRANTE	2
36	112012	SCREW	2
37	106850	WASHER	2
38	10441990	STRAP	2
39	12574211	NUT	1
40	103755	CLAMP	1
41	13709610	DOWEL	2
41	13804531	DOWEL	2
42	109826	FAN MOTOR	2
43	109147	4 - BLADE FAN	2
44	109481	NUT	2
45	109483	WASHER	2
46	109482	WASHER	2
