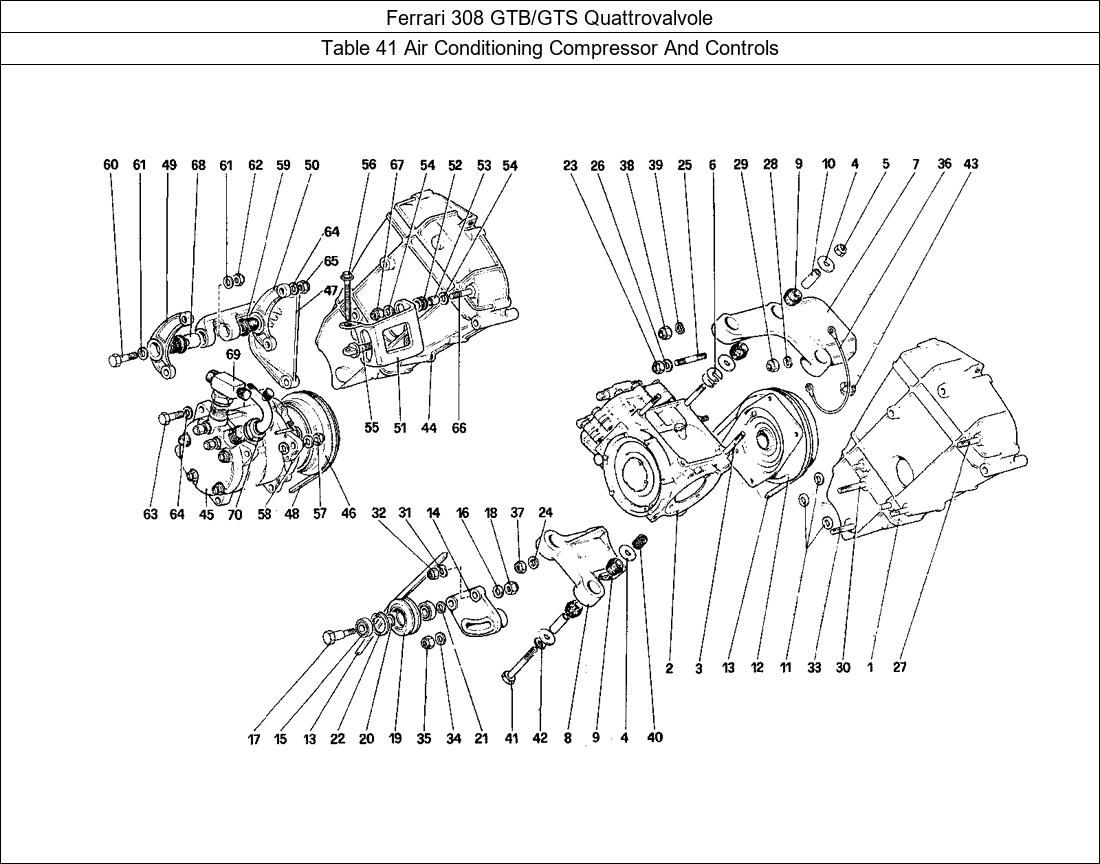

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 41 Air Conditioning Compressor And Controls Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	117438	LEFT, COVER, COMPLETE	1
2	115776	COMPRESSOR (YORK 206)	1
3	105044	A/C COMPRESSOR BRACKET LOWER STUD	3
4	108051	WASHER	10
5	12574511	NUT	3
6	105039	WASHER	6
7	111539	UPPER SUPPORT	1
8	108056	LOWER SUPPORT	1
9	107335	SWAY BAR "CONED" BUSHING	10
10	108052	SPACER	5
11	107835	COMPRESSOR BRACKET WASHER SPACER 308	3
12	105148	AC COMPRESSOR CLUTCH	1
13	105046	DRIVE BELT 11M925	1
14	105051	SUPPORT	1
15	105038	BEARING (SKF)	2
16	103025	WASHER	1
17	105048	PIN FOR SUPPORT	1
18	16105121	SELFLOCKING NUT	1
19	121405	PULLEY 62OD 32ID 11M BELT	1
20	107841	INNER SPACER	1
21	107842	SPACER	1
22	11059075	SEEGER RING	1
23	12574511	NUT	1
24	107993	WASHER	2
25	13546621	STUD	1
26	12601471	WASHER	1
27	13543621	STUD	1
28	12601371	WASHER	1
29	16104111	NUT	1
30	13449921	STUD	1
31	12601471	WASHER	1
32	12574511	NUT	1
33	13517421	STUD FOR BELT STRETCHER	1
34	13550321	WASHER	1
35	16104111	NUT	1
36	108043	EARTH CABLE	1
37	12575621	SELFLOCKING NUT	1
38	12575621	SELFLOCKING NUT	1
39	107993	WASHER	1
40	13526070	THREADED INSERT	2
41	11288031	BULLONE	2
42	106853	WASHER	2
43	110381	STRIP	3
44	124681	LEFT, COVER COMPLETE	1
45	121966	COMPRESSOR (SANKYO 507)	1
46	122422	CLUTCH-CLOCK WISE ROTATION	1
47	123698	SUPPORT	1
48	124108	DRIVE BELT 11M875	1
49	123699	BRACKET	1
50	123703	BRACKET	1
51	123704	BRACKET	1
52	123701	INSULATION	2
53	123702	BUSH	2
54	108283	DITTO, THICKNESS 0,4 MM.	4
55	123188	PIN FOR ADJUSTING BRACKET	1
56	15214221	SCREW	1
57	16104111	NUT	1
58	11496621	WASHER	2
59	117969	ELASTIC BUSH	2
60	11343821	SCREW	2
61	12642421	WASHER	4
62	12575611	STUD	2
63	11307021	SCREW	2
64	14496621	WASHER	12
65	12574511	NUT	4
66	13449521	STUD	1
67	12574511	NUT	2
68	123707	SPACER	1
69	124333	INTAKE UNION	1
70	124335	EXHAUST UNION	1
