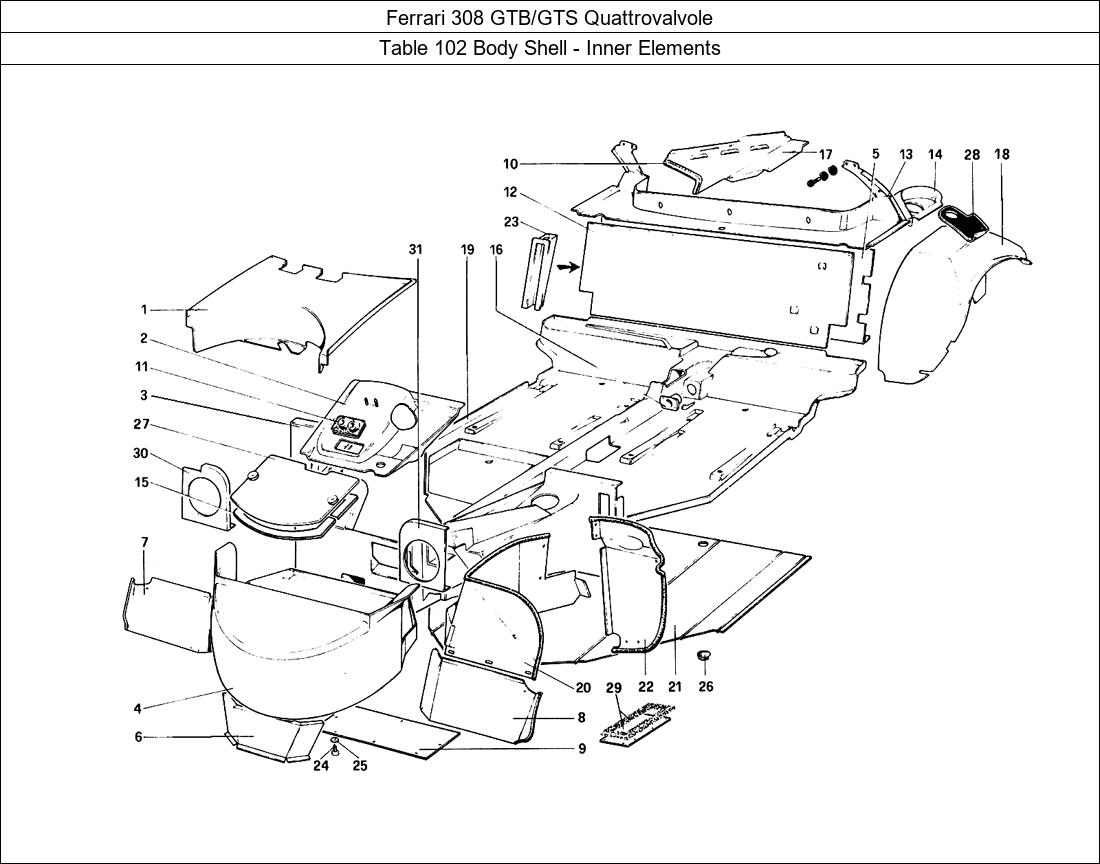

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 102 Body Shell - Inner Elements Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	60351806	(V) COVER RHD	1
1	60350501	(V) COVER LHD	1
2	60191202	RIPORTO SUPERIORE RIPARO ANT.	1
3	60044609	RIPARO ANTERIORE GTB	1
3	60048907	RIPARO ANTERIORE GTB	1
3	61618000	FRONT PANEL GTS ? LHD	1
3	61617800	FRONT PANEL GTS	1
3	60327400	RIPARO ANTERIORE GTS	1
3	60327301	RIPARO ANTERIORE GTS	1
3	61617600	FRONT PANEL GTB	1
3	61618600	FRONT PANEL GTB	1
4	60552900	HOUSING FOR WHEEL	1
5	61194200	PANEL GTS	1
5	61194300	PANEL GTS	1
6	60351707	BATTERY PROTECTION	1
7	60298304	PARASASSI ANTERIORE DX.	1
7	60307501	PARASASSI ANTERIORE DX.	1
8	60307600	PARASASSI ANTERIORE SX.	1
8	60298403	PARASASSI ANTERIORE SX.	1
9	60208600	PANEL RHD	1
9	60059706	PANEL LHD	1
10	60251808	GASKET	2
11	60054905	FAIR LEAD LHD	1
11	60197704	GROMMET	1
12	61081000	PANEL GTS	1
12	61193700	PANEL GTB	1
12	60850800	ALLUMINUM PANEL GTS	1
13	61010800	PLANE REAR WINDOW GTB	1
13	61128400	PLANE REAR WINDOW GTS	1
14	60342904	FUEL FILLER CHAMBEL GTS	1
14	60441201	FUEL FILLER CHAMBEL GTB	1
15	60031101	GASKET	1
16	40169005	BUSHING RHD	1
16	60084704	BUSHING LHD	1
17	60956900	INNER PANEL R.H.	1
17	60956800	(V) INNER PANEL L.H.	1
18	60091402	L.H. REAR WHEELHOUSE R.H.D.	1
18	60091303	R.H. REAR WHEELHOUSE R.H.D.	1
19	60063302	PIANALE IN RESINA GTB	1
19	60327004	PIANALE IN RESINA GTS	1
19	60880700	RESIN FLAT BED GTB	1
19	60880800	RESIN FLAT BED GTS	1
20	61012900	L.H. FRONT WHEELHOUSE	1
20	61012800	R.H. FRONT WHEELHOUSE	1
21	60880900	UNDER FLAT BED LHD	1
21	60270006	UNDER FLAT BED RHD	1
22	60377009	PARASASSI PER PASSARUOTA DX. GTS	1
22	60308400	PARASASSI PER PASSARUOTA SX. GTS	1
22	60377108	PARASASSI PER PASSARUOTA SX. GTS	1
22	60312907	PARASASSI PER PASSARUOTA SX. GTB	1
22	60259702	POST PARASASSI. SX. GTB	1
22	60308301	PARASASSI PER PASSARUOTA DX. GTS	1
22	60312808	PARASASSI PER PASSARUOTA DX. GTB	1
22	60259603	POST PARASASSI. DX. GTB	1
23	60241908	PROTECTION FOR PIPES GT	1
23	60093903	PROTECTION FOR RIPES GTB	1
24	20146601	SCREW	6
25	12643701	FLAT WASHER	6
26	40305203	UNDER FLOOR TRAY RUBBER PLUG	1
27	60279809	BATTERY COVER 308/328	1
28	60134202	FUEL FLAP RUBBER 308/328	1
29	60225000	COVER RHD	1
30	61017100	R.H. PANEL	1
31	61017200	L.H. PANEL	1
