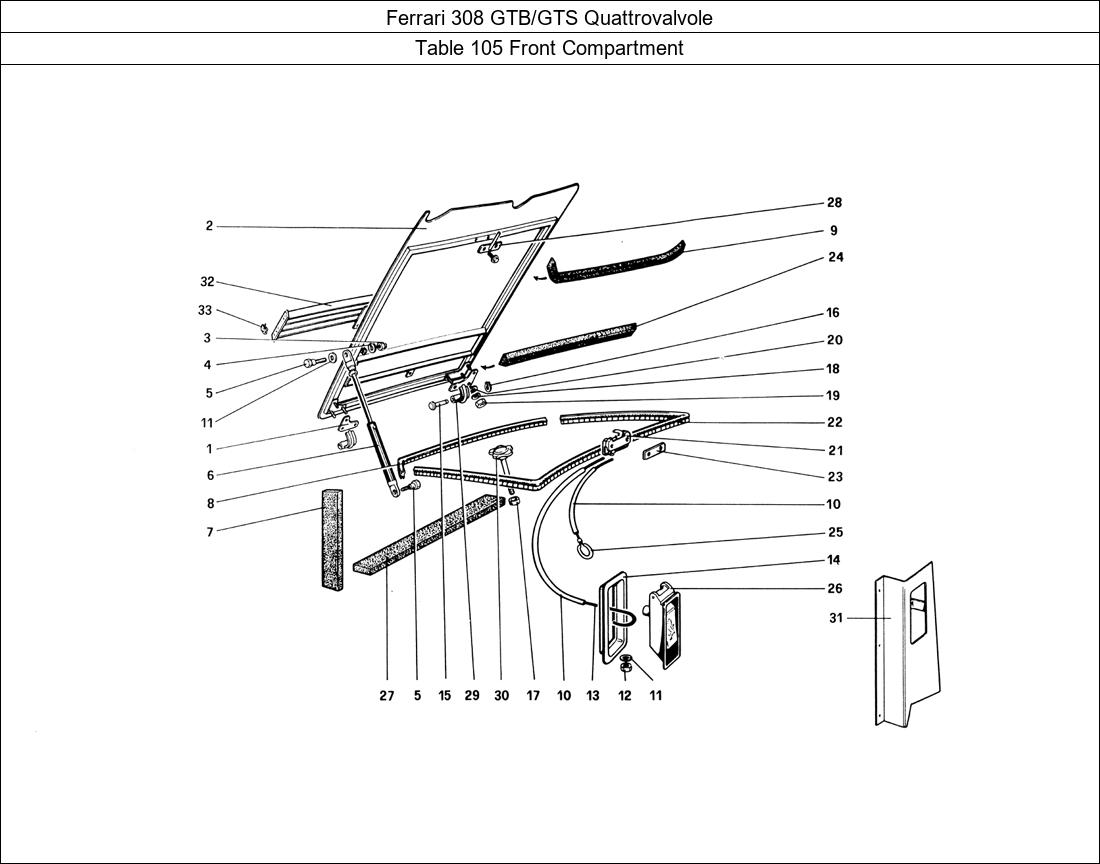

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 105 Front Compartment Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 60275401 | PIASTRA CERNIERE | 2 |
| 2 | 61109700 | BONNET LHD | 1 |
| 3 | 12574111 | NUT | 1 |
| 4 | 12638101 | WASHER | 1 |
| 5 | 40161903 | HOOD STRUT PIN | 2 |
| 6 | 60118007 | HOOD STRUT 328 LATE SS | 1 |
| 6 | 60118007 | FRONT BONNET STRUT | 1 |
| 7 | 60250701 | GASKET OR SEAL | 2 |
| 7 | 60773500 | RADIATOR SIDE GASKET | 2 |
| 8 | 60428901 | GASKET OR SEAL | 1 |
| 9 | 60281409 | HOOD FOAM 308 UPPER/LOWER | 1 |
| 10 | 60126604 | SHEATH | 2 |
| 11 | 12638101 | WASHER | 2 |
| 12 | 15896411 | NUT | 1 |
| 12 | 61041500 | INSULATION | 1 |
| 13 | 60126505 | CABLE | 1 |
| 14 | 60765500 | FLANGE GTB | 1 |
| 15 | 60061504 | PIN | 2 |
| 16 | 60962400 | SEEGER | 2 |
| 17 | 61609500 | (V) SPACER | 1 |
| 17 | 60553000 | BUSH | 1 |
| 18 | 10516673 | RONDELLA | 6 |
| 19 | 16100811 | NUT | 6 |
| 20 | 12646701 | WASHER | 6 |
| 21 | 60277407 | BONNET LOCK 328 | 1 |
| 22 | 60388204 | GUARNIZIONE POSTERIORE VANO CO… | 1 |
| 23 | 60276508 | LOCK PLATE 328 | 1 |
| 24 | 40150104 | SPUGNA DI TENUTA | 1 |
| 25 | 60126703 | SAFETY CABE | 1 |
| 26 | 61756700 | (V) HANDLE WITH CABLE | 1 |
| 27 | 60773400 | RADIATOR LOWER GASKET | 1 |
| 27 | 40231805 | GASKET OR SEAL | 1 |
| 28 | 61090400 | (V) PIN LOCK | 1 |
| 29 | 60275302 | HING ARM | 2 |
| 30 | 61609400 | PIN | 1 |
| 30 | 60276300 | GALLETTONE FISSAGGIO RUOTA SCO… | 1 |
| 30 | 61609400 | PIN | 1 |
| 31 | 60640200 | SUPPORT GTS | 1 |
| 31 | 60640100 | SUPPORT GTS | 1 |
| 32 | 61109800 | GRILL | 1 |
| 32 | 61672600 | GRILL | 1 |
| 33 | 60679600 | CLIP | 1 |
