Home > Ferrari Parts 308 GTB/GTS Quattrovalvole Table 107 Doors Parts

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 107 Doors Parts

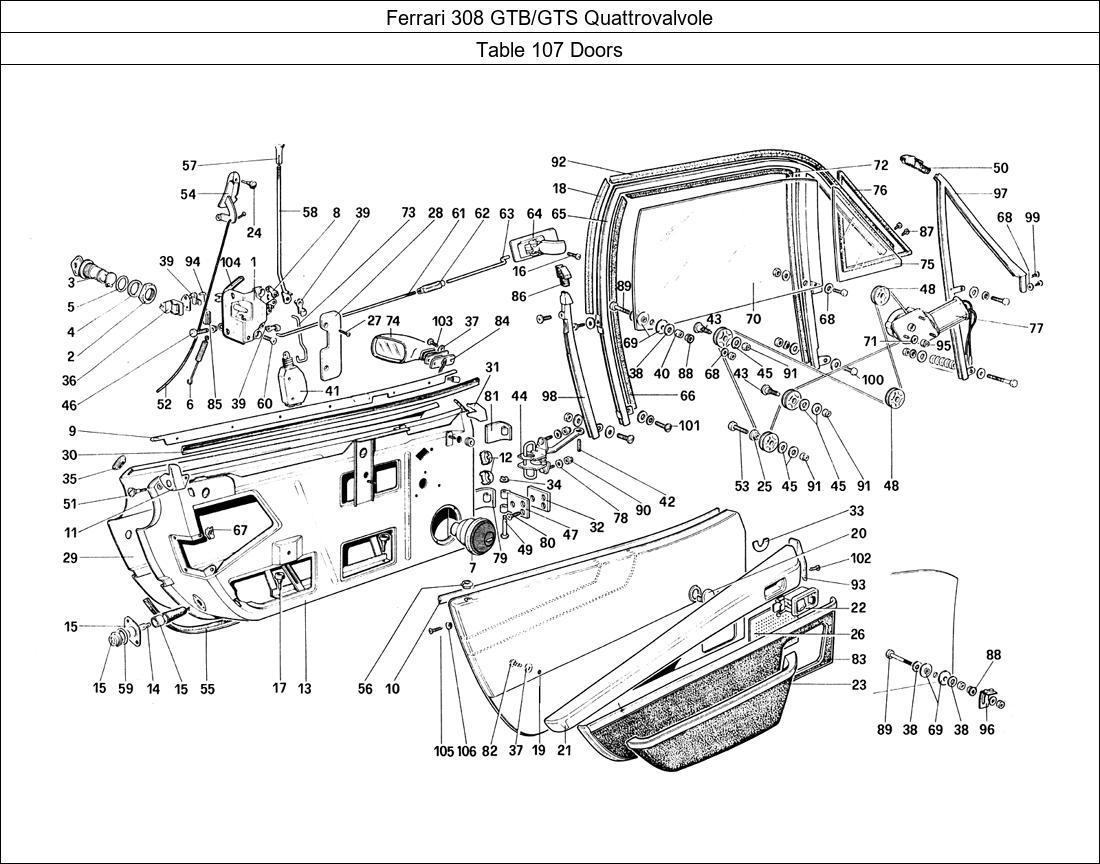

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	20170809	R.H. LOCK	1
1	20170908	LH DOOR LOCK 308 GTB	1
2	20063202	GHIERA P. SERRATURA	2
3	20035705	BLOCK, L.H. DOOR LOCK	1
3	20035606	BLOCK, R.H. DOOR LOCK	1
4	20035804	SPACER	2
5	20181103	O-RING	2
6	60046000	SPRING	2
7	61717800	REAR LOUD SPEAKERS	2
7	60870900	LOUDSPEAKER	2
7	60507900	ALTOPARLANTE	2
8	60813500	CLIP	2
9	60415106	MODANATURA PORTA DX. GTB	1
9	61269700	MOULDING L.H. ARMREST	11
9	61141600	MOULDING L.H. ARMREST	1
9	60415205	MODANATURA PORTA SX.GTB	1
10	60136207	GUARNIZIONE INTERNA	2
11	60269305	REAR L.H. MOULDING	1
11	60602000	REAR L.H. MOULDING	1
11	60269206	REAR R.H. MOULDING	1
11	60601900	REAR R.H. MOULDING	1
12	40127409	PLUG	3
13	61272700	L.H. DOOR (*) GTS	1
13	61200800	R.H. DOOR (*)GTB	1
13	61200900	L.H. DOOR (*) GTB	1
13	61443900	R. H. DOOR (*) GTB	1
13	61200400	R.H. DOOR (*) GTB	1
13	61272600	R.H. DOOR (*) GTS	1
13	61271600	R.H. DOOR (*) GTS	1
13	61415800	FASTEN SEAT BELTS LIGHT	1
13	61419600	R.H.DOOR(*) GTB	1
13	61419700	L.H. DOOR (*) GTB	1
13	61415900	L.H. DOOR (*) GTS	1
13	61200500	L.H. DOOR (*)GTB	1
13	61271700	L.H. DOOR (*) GTS	1
13	61444000	L.H. DOOR (*) GTB	1
14	101525	LAMP	2
15	60291200	RED DOOR WARNING LIGHT	2
15	60291200	DOOR LAMP RED (ROUND)	2
16	15903902	VITE	2
17	40195703	RUBBER PLUG FOR STROKE STOP	4
18	60278405	REAR GASKET	2
19	60746700	L.H. COVERING	1
19	60746600	R.H. COVERING	1
19	61428500	L.H. COVERED PANEL	1
19	60763800	R.H. COVERED PANEL	1
19	60763900	L.H. COVERED PANEL	1
19	61428400	R.H. COVERED PANEL	1
20	30063101	PLUG	2
21	61270700	ARMREST L H. WITH COVERING	1
21	61055400	ARMREST R.H. WITH COVERING	1
21	61270600	ARMREST R.H. WITH COVERING	1
21	60067402	FINISH ARMREST DX.	1
21	61269500	ARMREST L.H. WITH COVERING	1
21	60760700	ARMREST R.H. WITH COVERING	1
21	61269400	ARMREST R.H. WITH COVERING	1
21	61055200	ARMREST L.H. WITH COVERING	1
21	60760700	ARMREST R.H. WITH COVERING	1
21	60067501	COVER LH ARMREST.	1
22	61111300	SWITCH CONTROL SPEECH! EST.	1
23	60803900	POCKET, L.H. WITH COVERING	1
23	60803800	POCKET, R.H. WITH COVERING	1
23	60753000	COVERING, R.H.	1
23	60753100	COVERING, L.H.	1
24	20043808	GOMMINO PARACOLPI GTB	2
24	61083900	FUEL FLAP RUBBER GROMMET 365 GTB/4 DAYTONA	2
25	60441607	BUSH	4
26	61173600	MOULDING R.H.	1
26	61430600	MOULDING L.H.	1
26	60745600	MOULDING L.H.	1
26	60745500	MOULDING R.H.	1
27	15908502	SCREW	4
28	60304904	MOULDING FOR L.H. BLOCK	1
28	60304805	MOULDING FOR R.H. BLOCK	1
29	61201400	LEFT OUTER COVETING GTB	1
29	61201700	RIGHT OUTER COVERING GTB	1
29	61201800	LEFT OUTER COVERING GTB	1
29	61201900	RIGHT OUTER COVERING GTS	1
29	61201300	RIGHT OUTER COVERING GTB	1
29	61202000	LELT OUTER COVERING GTS	1
29	61201500	RIGHT OUTER COVERING GTS	1
29	61201600	LEFT OUTER COVERING GTS	1
30	60827500	OUTSIDE GASKET, R.H.	1
30	60827600	EXTERIOR DOOR GLASS TRIM	1
31	60269008	FRONT R.H. MOULDING	1
31	60602200	FRONT L.H. MOULDING	1
31	60602100	FRONT R.H. MOULDING	1
31	60269107	FRONT L.H. MOULDING	1
32	60269404	PLATE FOR FIXED HINGE	4
33	60138807	MOULDING RIGHT. HANDLE FOR INF.	1
33	60138906	MOULDING LEFT. HANDLE FOR INF.	1
34	11065775	SEEGER	2
35	60567000	GASKET OR SEAL	2
36	60606600	L.H. BLOCK	1
36	60606500	R.H. BLOCK	1
37	106849	WASHER	6
38	12640601	WASHER	8
39	40063208	SPRING	8
40	60441409	DISTANZIALE (GTB)	4
41	61329500	LOCKING DEVICE FOR LEFT DOOR	1
41	61329400	LOCKING DEVICE FAR RIGHT DOOR	1
42	60730200	PIN FOR TIE-ROD	2
43	60078805	PIN FOR SHEAVE	6
44	61260800	TIE ROD	2
45	12644401	SPRING WASHER	12
46	60088705	SCREW	2
47	60251204	FIXED DOOR HINGE 308 (3-HOLE)	4
48	60398807	CARRUCOLA (GTS)	10
48	60056306	SHEAVE	10
49	20074100	PIN FOR HINGE	4
50	60265907	UPPER L.H. TERMINAL	1
50	60265808	UPEER R.H. TERMINAL	1
51	60273901	SCREW	2
52	60116803	CAVO PER MANIGLIA APRIPORTA	2
53	10902421	SCREW	4
53	14141410	PERNO PER CARRUCOLE GTB	4
54	60271004	MANIGLIA ESTERNA DX.	1
54	60271103	MANIGLIA ESTERNA SX.	1
55	60159605	LOWER DOOR SEAL (308)	2
56	40162307	DOOR LOCK BUSH 208/308/328/512	2
57	20170403	KNOB	2
58	61384800	SAFETY ROD, UPPER, L.H.	1
58	60803000	SAFETY ROD, UPPER, R.H.	1
59	60591000	GASKET	2
60	20298303	SCREW	8
61	40132706	ASTA FRA SICURA E SERRATURA	2
62	60088606	SLEEVE	2
63	60305208	SEMIASTA ANTERIORE	2
64	60035607	MANIGLIA APRIPORTA INTERNA	2
65	61443600	L.H. GLASS FRAME	1
65	60263506	TELAIO CRISTALLO PORTA DX.	1
65	60263605	TELAINO CRISTALLO DOOR SX. GTB	1
65	61443500	R.H. GLASS FRAME	1
66	60343308	REAR CHANNEL FOR GLASS	2
66	60302205	REAR DOOR GLASS FELT CHANNEL 308 GTB	2
67	20037008	DOOR LOCK RETAINING CLIP	8
68	12643701	FLAT WASHER	10
69	50086909	BUSH	8
70	60263902	L.H. MOBILE GLASS	1
70	60162409	R.H. MOBILE GLASS	1
70	60263803	R.H. MOBILE GLASS	1
70	60162508	L.H. MOBILE GLASS	1
71	12638101	WASHER	6
72	60343407	FRONT CHANNEL FOR GLASS GTS	2
72	60302106	FRONT RAIL	2
73	61328500	LOWER SAFETY ROD, L.H.	1
73	61328600	LOWER SAFETY ROD. R.H.	1
74	61021900	SPEECH IO RETROVISORE DX.	1
74	61021800	LEFT REAR VIEW MIRROR.	1
74	61172700	EXTERNAL MIRROR (L.H.)	1
74	61172800	EXTERNAL MIRROR (R.H.)	1
75	60264405	R.H. FIXED GLASS	1
75	60264504	L.H. FIXED GLASS	1
76	60519100	WEATHERSTRIP FOR FIXED GLASS	2
76	60322500	FRONT QTR LIGHT RUBBER 308 GTB	2
77	60030509	DISPOSITIVE ALZACRISTALLI	2
78	60711900	WASHER	4
79	50031608	LOWER MOBILE HINGE	2
80	50206408	SCREW FOR HINGE	12
81	60265501	UPPER MOBILE HINGE, L.H.	1
81	60265402	UPPER MOBILE HINGE, R.H.	1
82	13274818	SCREW FOR ARMREST	2
83	61433500	LOWER COVERING, R.H. PANEL	1
83	61433600	LOWER COVERING, L.H. PANEL	1
84	61022000	BRACKET FIXING REAR MIRROR	2
85	40133902	TERMINAL	2
86	60266103	LH DOOR STOP RUBBER 308 GTS	1
86	60266004	RH DOOR STOP RUBBER 308 GTS	1
87	20286704	SCREW	4
88	13832101	NUT	4
89	60657800	VITE	4
90	12574111	NUT	4
91	12575411	NUT	10
92	60343100	GASKET	2
92	60278504	GASKET	2
93	61141500	MOULDING R.H. ARMREST	1
93	61269600	MOULDING R.H. ARMREST	1
94	60709000	TIE ROD	2
95	12577811	NUT	6
96	60441300	BRACKET GTS	2
97	60292000	FRONT FRAME FOR R.H. GLASS	1
97	60292109	FRONT FRAME FOR L.H. GLASS	1
98	60292307	REAR GLASS FRAME (L.H.)	1
98	60292208	REAR GLASS FRAME (R.H.)	1
99	60815200	SCREW	4
100	10902621	SCREW	2
101	20030003	SCREW	2
102	17685206	SCREW	4
103	14304220	SCREW	4
104	60566200	GASKET	2
105	15908806	SCREW	2
106	12611607	WASHER	10
