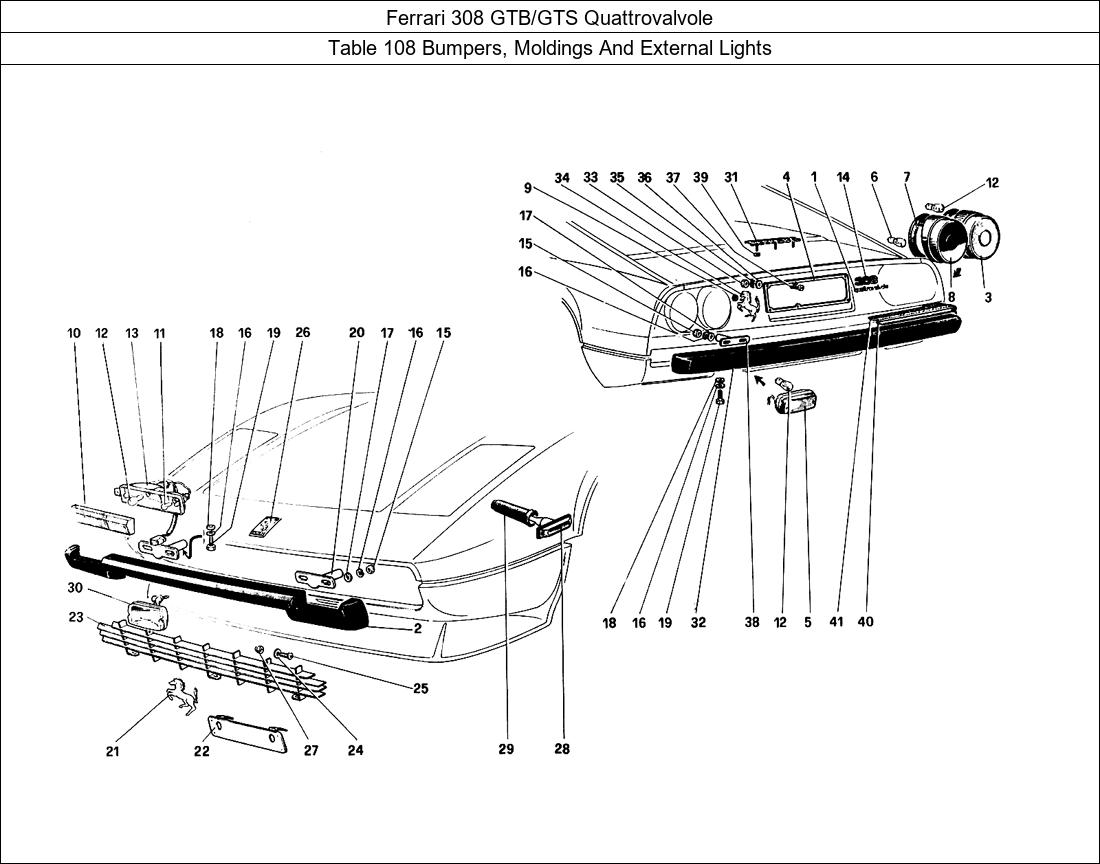

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 108 Bumpers, Moldings And External Lights Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	61121100	4V. NAME	1
2	61184400	FRONT BUMPER	1
3	60170206	TAIL LIGHT 308/MONDIAL AMBER ORANGE	2
4	60097003	PLATE FRAME	1
4	60097003	308 REAR NUMBER PLATE HOUSING	1
5	60670000	BACK FOG LIGHT	2
6	20082905	LAMPADA 12 V-21/5W	4
7	60592100	GASKET	4
8	60170305	REAR PARKING STOP LIGHT	2
9	60995100	GASKET	1
10	60329703	LHS FRONT INDICATOR LENS (WHITE/ORANGE)	1
10	60329604	RHS FRONT INDICATOR LENS (WHITE/ORANGE)	1
10	60197109	AMBER LH LENS	1
11	101524	LAMP	2
12	20083200	LAMPADA 12 V - 21W	2
13	60121100	COMPLETE LEFT FRONT SIDE LIGHT & INDICATOR.	1
13	60121001	COMPLETE RIGHT FRONT SIDE LIGHT & INDICATOR	1
14	60044104	308 MOTIF BLACK	1
14	60044104	308 MOTIF BLACK	1
15	16100811	NUT	8
16	10615671	WASHER	12
17	12647001	WASHER	8
18	10519601	WASHER	4
19	16043221	SCREW	4
20	61180600	BRACKET FOR FRONT BUMPER	2
21	61180900	BADGE PRANCING HORSE CHROMED 110MM HEIGHT	1
22	20108205	PORTA TARGA ANTERIORE	1
23	61183700	GRILL FOR RADIATOR	1
24	12638101	WASHER	5
25	14072411	VITE FISS. PIASTRA POST.	5
26	60795400	NOSE BADGE	1
27	12574121	NUT	5
28	60669900	SIDE LIGHT	2
29	60101201	CAP	2
30	60273406	HEAD LAMP FOR FLASHING	2
30	60273505	HEAD LAMP FOR FLASHING	2
31	61025000	BOOT BADGE (FERRARI) 2 PIN	1
32	60206802	PARAURTI POSTERIORE	1
33	10794011	NUT	6
34	60032109	BADGE PRANCING HORSE CHROMED 75MM HEIGHT	1
35	10615271	WASHER	6
36	12642801	WASHER	6
37	13272416	SCREW	6
38	61114300	BRACKET FOR REAR BUMPER	2
39	60324506	DASHBOARD CLIP	1
40	61115800	PROTECTION FOR RIGHT BUMPER	1
40	61115900	PROTECTION FOR LEFT BUMPER	1
41	61115600	RIGHT RUBBER PROTECTION	1
41	61115700	LEFT RUBBER PROTECTION	1
