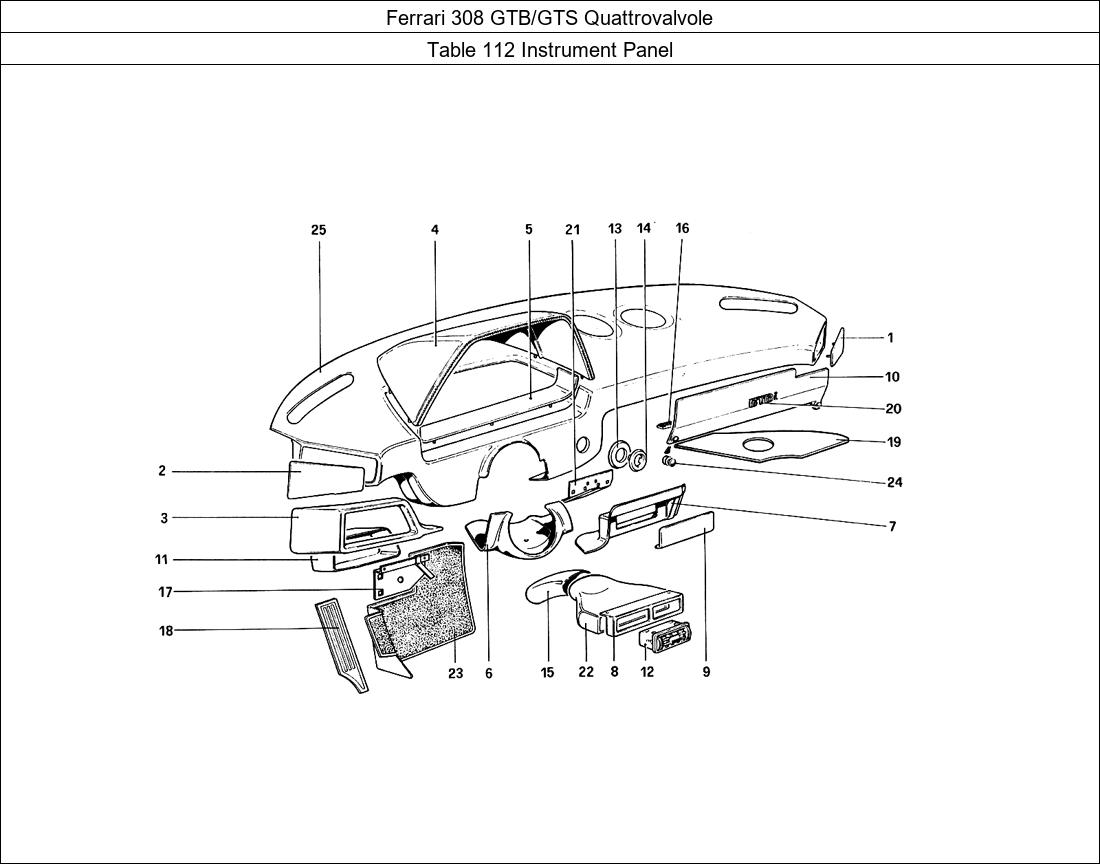

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 112 Instrument Panel Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	60069408	MODANATURA DX.	1
2	60069507	MODANATURA SX.	1
3	60806800	MOULDING WITH COVERING	1
3	60807000	COVERING RHD	1
3	60752300	MOLDING STORAGE SOTTOPLANCIA	1
4	60066909	VISIERA CRUSCOTTO	1
4	60066800	RIVESTIMENTO VISIERA	1
5	60069804	MOULDING LOWER DASH	1
6	60092103	COPRIPIANTONE	1
7	61678200	RADIO BOARD WITH COVERING	1
7	60068707	PLANCETTA AUTORADIO	1
7	61679900	RADIO BOARD WITH COVERING	1
7	60194909	PLANCETTA AUTORADIO	1
8	60375409	SUPPORTO PER BOCCHETTA A.C.	1
8	60375409	SUPPORTO PER BOCCHETTA A.C.	1
8	61679000	CONVEYOR A.C.	1
9	60146206	PARATIA COPRISEDE RADIO	1
10	61152000	LID WITH COVERING	1
10	60078706	CABINET DOOR	1
10	61679700	LID GTS	1
10	61678300	LID GTB	1
10	61133700	LID GTB	1
10	61136000	LID GTS	1
10	61150500	LID WITH COVERING	1
10	60807200	OUTSIDE COVERING	1
11	60752500	PORTAOGGETTI SOTTOPLANCIA	1
11	60806900	GLOVE BOX WITH COVERING	1
12	60124302	AIR OUTLET AC	2
13	60164100	RING NUT	1
14	60164001	IGNITION LOCK SURROUND PLASTIC	1
15	60133204	AC DUCT	1
16	50101708	BLOCCHETTO DI FISSAGGIO	4
17	61179400	SUPPORT FOR BLOCKS	1
17	61106700	SUPPORT FOR BLOCKS	1
18	61352500	(V) TEABOARD GTB	1
18	61361400	(V) TEABOARD GTS	1
19	60143708	L.H. CARPET	1
19	60143609	R.H. CARPET	1
20	61136500	GTS MASK	1
20	61133300	GTB MASK	1
21	60094109	SUPPORT	1
21	60196508	SUPPORT	1
22	60375300	AC CONVEYOR FOR RHD	1
22	60375201	AC CONVEYHOR FOR LHD	1
23	61352400	CARPET, UNDER PEDALS GTB	1
23	61361300	CARPET, UNDER PEDALS GTS	1
23	61365200	CARPET, UNDER PEDALS GTB	1
23	61365700	CARPET, UNDER PEDALS GTS	1
24	60727200	BUTTON	2
25	60194404	RIVESTIMENTO PLANCIA	1
25	61796400	PANEL WITH COVERING	1
25	61678100	PANEL WITH COVERING	1
25	61271000	PANEL WITH COVERING	1
25	61270400	PANEL WITH COVERING	1
25	61796600	PANEL WITH COVERING	1
25	60303500	PLANCIA PORTASTRUMENTI	1
25	60194107	PLANCIA PORTASTRUMENTI	1
25	60068806	RIVESTIMENTO PLANCIA	1
