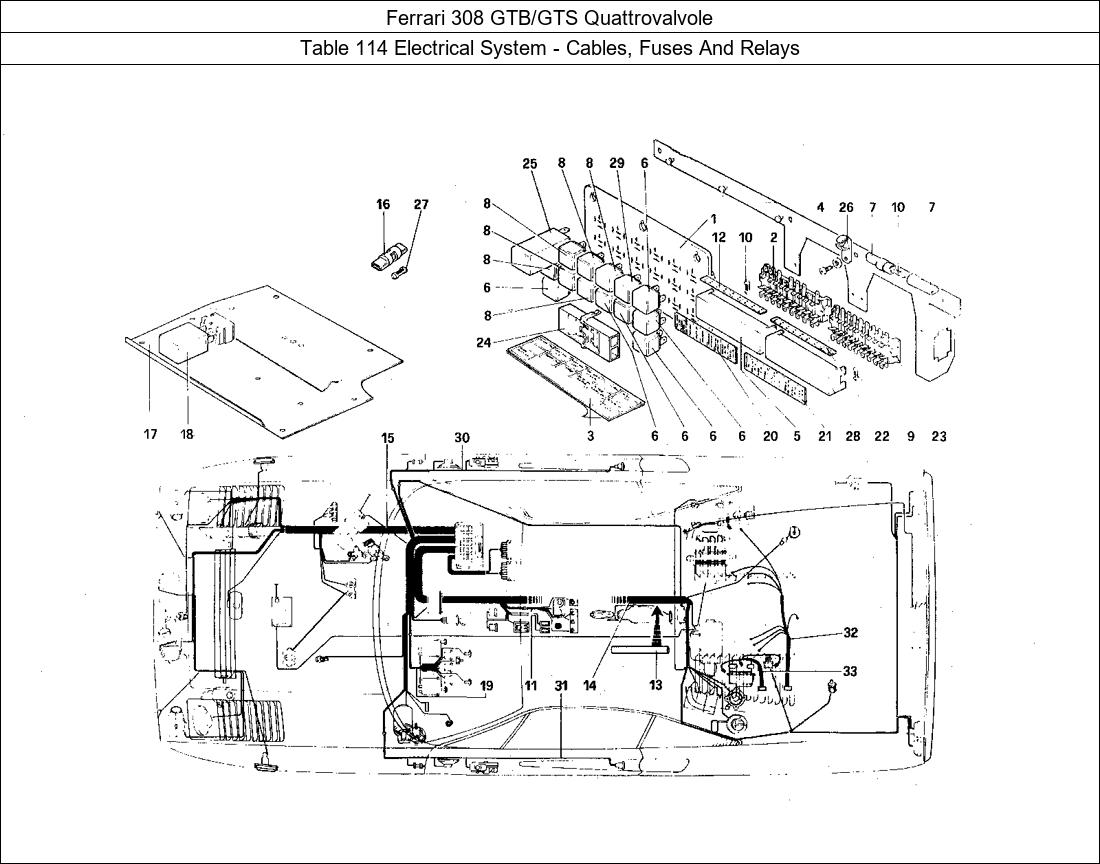

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 114 Electrical System - Cables, Fuses And Relays Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	61109100	PLATE	1
2	61110800	VALVE BOX WHITE	1
3	61133500	PLATE FOR RELAYS	1
4	61179500	SUPPORT FOR BOXES AND PLATE RHD	1
4	61286200	SUPPORT FOR BOXE AND PLATE LHD	1
4	61105000	SUPPORT	1
5	61110500	GLOVER BOX WITH PLATE 20	1
6	40130106	RELAY	6
6	40130106	RELAY	6
7	60382306	BOX TIMER FAN GAS-GAS	1
8	40130007	RELAY	6
9	11048990	FUSE 16 AMP.	1
10	10858090	FUSE 8 AMP.	1
11	119514	CABLE CONTROLS ON THE TUNNEL	1
12	60743300	PLATE SIDE BOX NO. 2	1
13	40135907	PIPE PROTECTION SILICON	1
14	120081	REAR CABLES	1
15	120080	FRONT CABLES	1
15	120092	FRONT CABLES	1
16	60846100	TUBE FUSE BOX STEERING WHEEL	1
17	60306404	BULKHEAD PASSENGER FOOTREST GTS	1
17	60306305	BULKHEAD PASSENGER FOOTREST GTS	1
17	60107109	BULKHEAD FOOT PASSENGER GTB	1
17	60193406	BULKHEAD FOOTRESTS PASS.	1
18	60870200	INTERNAL LIGHT DELAY RELAY 512 BBI	1
19	118482	INSTRUMENTS PANEL CABLES	1
19	117011	CAVI PLANCIA PORTASTRUMENTI	1
20	61110200	PLATE FOR BOX WHITE	1
21	61172500	PLATE FOR BOX BLACK	1
22	60750600	PLATE SIDE BOX NO. 1	1
23	61172300	VALVE BOX BLACK	1
24	40130205	PROTEZIONE MORSETTIERA	1
25	61111200	FLASHER FOR DIRECTION LIGHTS	1
26	60382405	BRACKET FOR SHEAT	1
27	10858190	VALVOLA FUSIBILE DA 3 AMPERE	1
28	61172600	GLOVER BOX BLACK WITH PLATE 21	1
29	40283905	RELAY	1
30	122211	R.H. DOOR CABLES	1
31	122212	L.H. DOOR CABLES	1
32	120078	CABLES ON ENGINE	1
32	120392	CABLES ON ENGINE	1
33	117008	CABLE FOR SENSOR	1
33	119009	CABLE FOR SENSOR	1
