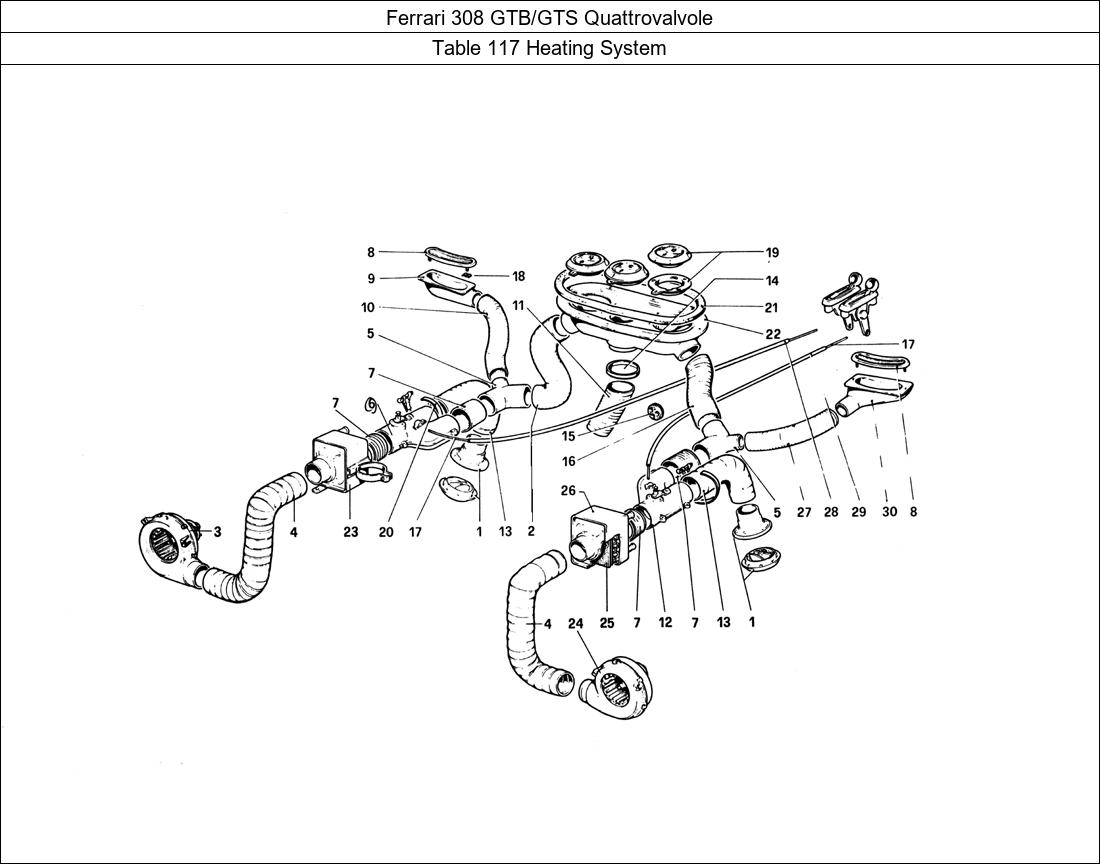

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 117 Heating System Parts
| LOC | Part Number | Description (Click to View) | QTY |
|---|---|---|---|
| 1 | 60054400 | UNDER AIR OUIIET | 2 |
| 2 | 60123700 | CONDOTTO ARIA | 1 |
| 3 | 60658600 | HEATER FAN DX | 1 |
| 4 | 60034808 | CONDOTTO ARIA | 2 |
| 5 | 60153608 | 3 WAY FITTING | 2 |
| 6 | 60135001 | DIVERTER | 1 |
| 7 | 60124500 | CONDOTTO ARIA ? 80 | 4 |
| 8 | 60044401 | LATERAL AIR OUTLET | 2 |
| 9 | 60055407 | L.H. AIR OUTLET FOR RHD | 1 |
| 9 | 60198405 | R.H. AIR OUTLET FOR RHD | 1 |
| 10 | 60123809 | CONDOTTO ARIA ? 60 | 1 |
| 11 | 60124005 | PIPE FOR AIR CONDITIONING | 1 |
| 12 | 60135100 | DEVIATORCI SX. | 1 |
| 13 | 60034907 | CONDOTTO ARIA | 2 |
| 14 | 20143202 | PLUG | 1 |
| 15 | 60714200 | PASSAFILO | 1 |
| 16 | 60035003 | CONDOTTO ARIA. | 1 |
| 17 | 40138802 | CABLE DEFROSTER CONTROL | 2 |
| 18 | 60048501 | CLIP | 8 |
| 19 | 60054301 | DIFFUSORE ARIA | 3 |
| 20 | 10291490 | CLAMP | 2 |
| 21 | 50091503 | GASKET | 1 |
| 22 | 20142709 | AIR DIFFUSOR | 1 |
| 23 | 60151305 | RISCALDATORE DX. | 1 |
| 23 | 60361409 | RISCALDATORE DX. | 1 |
| 23 | 61721700 | RH HEATER | 1 |
| 24 | 60658700 | UNION FOR R.H. AIR OUTLET | 1 |
| 25 | 60151909 | RETICEILA INTERNAL HEATERS | 2 |
| 26 | 60208907 | RISCALDATORE SX. | 1 |
| 27 | 60123908 | CONDOTTO ARIA ? 60 | 1 |
| 28 | 60125901 | GUAINA CAVO DEFREOSTER DX. | 1 |
| 29 | 60126000 | GUAINA CAVO DEFROSTER SX. | 1 |
| 30 | 60055506 | L.H. AIR OUTLET FOR LHD | 1 |
| 30 | 60055407 | L.H. AIR OUTLET FOR RHD | 1 |
