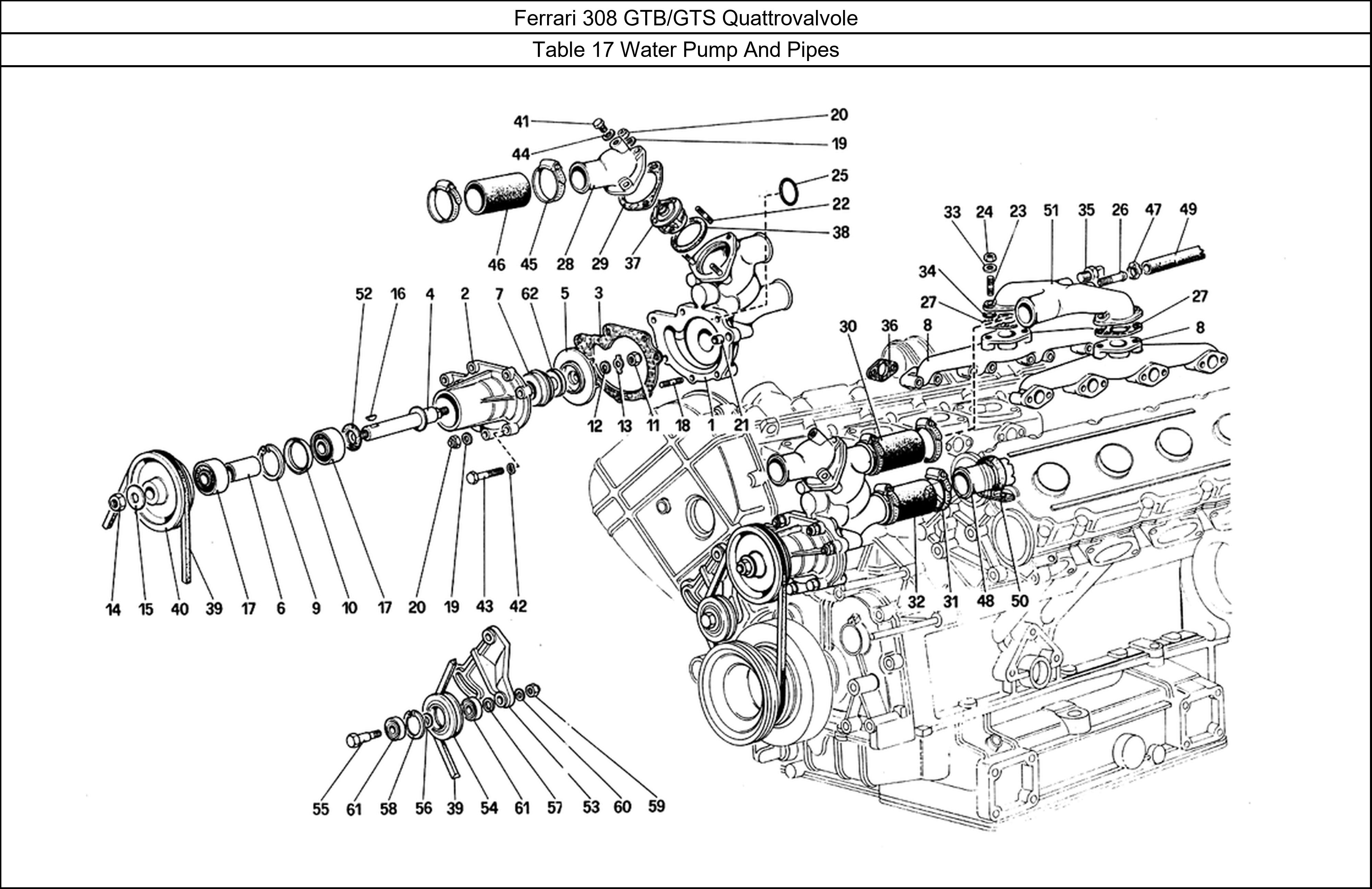

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 17 Water Pump And Pipes Parts

Click Diagram To Enlarge

LOC	Part Number	Description (Click to View)	QTY
1	115470	WATER PUMP BODY	1
2	116156	PUMP COVER	1
2	121262	PUMP COVER	1
2	121252	PUMP COVER	1
3	103952	WATER PUMP GASKET 308	1
4	103795	SPINDLE FOR PULLEY	1
4	121253	SPINDLE FOR PULLEY	1
5	103806	IMPELLER	1
5	121254	IMPELLER	1
6	116157	SPACER	1
7	120948	SEAL RING	1
7	100433	WATER PUMP SEAL KIT 365 (2 PIECE)	1
8	116967	MANIFOLD FOR WATER OUTLET	2
9	11060076	SEEGER RING	1
10	116158	WASHER	1
11	100436	WATER PUMP DOMED NUT	1
11	100436	WATER PUMP ACORN NUT	1
12	10730301	WASHER	1
13	100434	WATER PUMP IMPELLER LOCK TAB	1
13	100434	WATER PUMP LOCK TAB	1
14	16101521	NUT	1
15	11198671	CONIC WASHER	1
16	10205820	FEATHER KEY	1
17	116159	BEARING	2
18	11500721	STUD	3
19	12601271	WASHER	6
20	12574211	NUT	6
21	102704	DOWEL	2
22	11500421	STUD	3
23	13516821	STUD	4
24	16100811	NUT	4
25	105196	O RING	1
26	106241	WATER MANIFOLD UNION	1
27	111481	GASKET	1
28	105165	250 GTE RADIATOR BLIND	1
28	105165	250 GTE RADIATOR BLIND - USED	1
29	105189	THERMOSTAT GASKET 308	1
30	121258	COOLANT HOSE	1
31	12177090	CLAMP	4
32	121259	SLEEVE	1
33	11198071	WASHER	4
34	103039	O-RING	4
35	104628	WATER TEMP SENDER	1
35	104628	288 GTO WATER TEMP SENSOR	1
36	111480	GASKET	8
37	109671	THERMOSTAT	1
38	105192	THERMOSTAT SEAL	1
39	107971	DRIVE BELT 7M1000	1
39	121655	DRIVE BELT 7M630	1
40	105166	PULLEY	1
40	121654	PULLEY	1
40	105166	WATER PUMP PULLEY 308	1
41	16042940	SCREW	1
42	12601371	WASHER	4
43	16044421	WATER PUMP BOLT	4
44	10260060	COPPER WASHER	1
45	12177090	CLAMP	2
46	105190	WATER HOSE	1
47	12179490	CLAMP	2
48	115136	PIPE BETWEEN HEADS	1
49	122218	HOSE	1
50	107002	BRACKET	1
51	116968	JOINT PIPING TO MANIFOLDS OF OUTPUT WATER	1
52	121263	WATER PUMP GASKET	1
53	121658	SUPPORT	1
54	121659	PULLEY 57OF 32ID 7M BELT	1
55	105048	PIN FOR SUPPORT	1
56	107841	INNER SPACER	1
57	107842	SPACER	1
58	11059076	CIRCLIP	1
59	16105121	SELFLOCKING NUT	1
60	103025	WASHER	1
61	105038	BEARING (SKF)	2
62	121553	WATER PUMP SEAL	1
